EMISSION SYSTEM [SKYACTIV-G 2.5]

< Previous Next >

2014 - Mazda6 - Engine

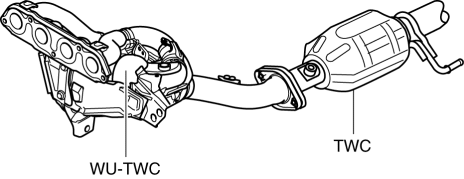

A single-nano catalyst has been adopted for the under-floor, three-way catalyst to improve emission gas purification efficiency.

U.S.A. and CANADA

Except U.S.A. and CANADA

U.S.A. and CANADA

Except U.S.A. and CANADA

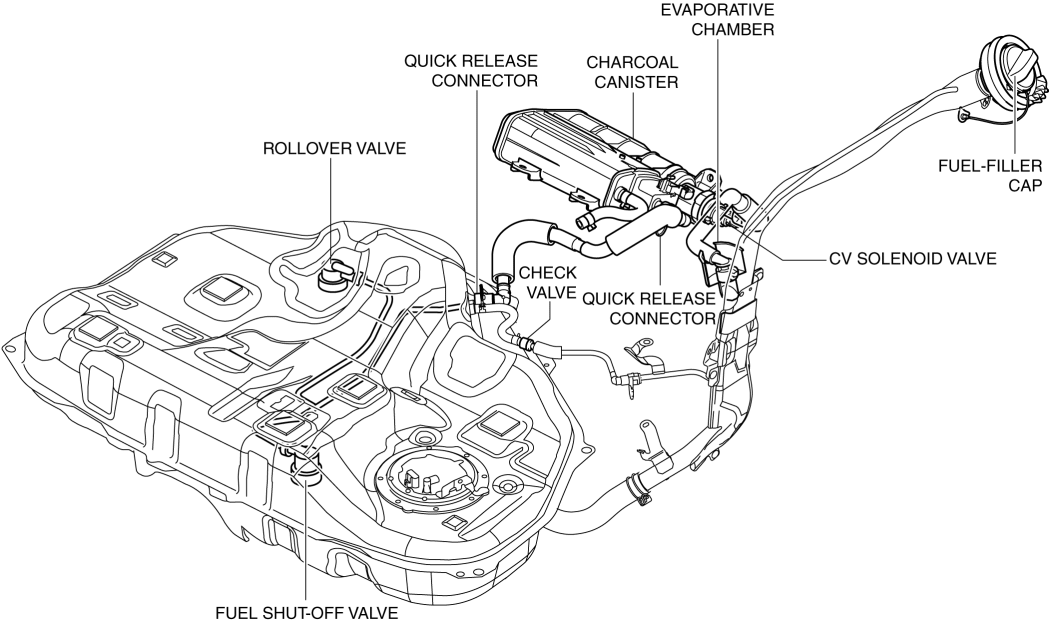

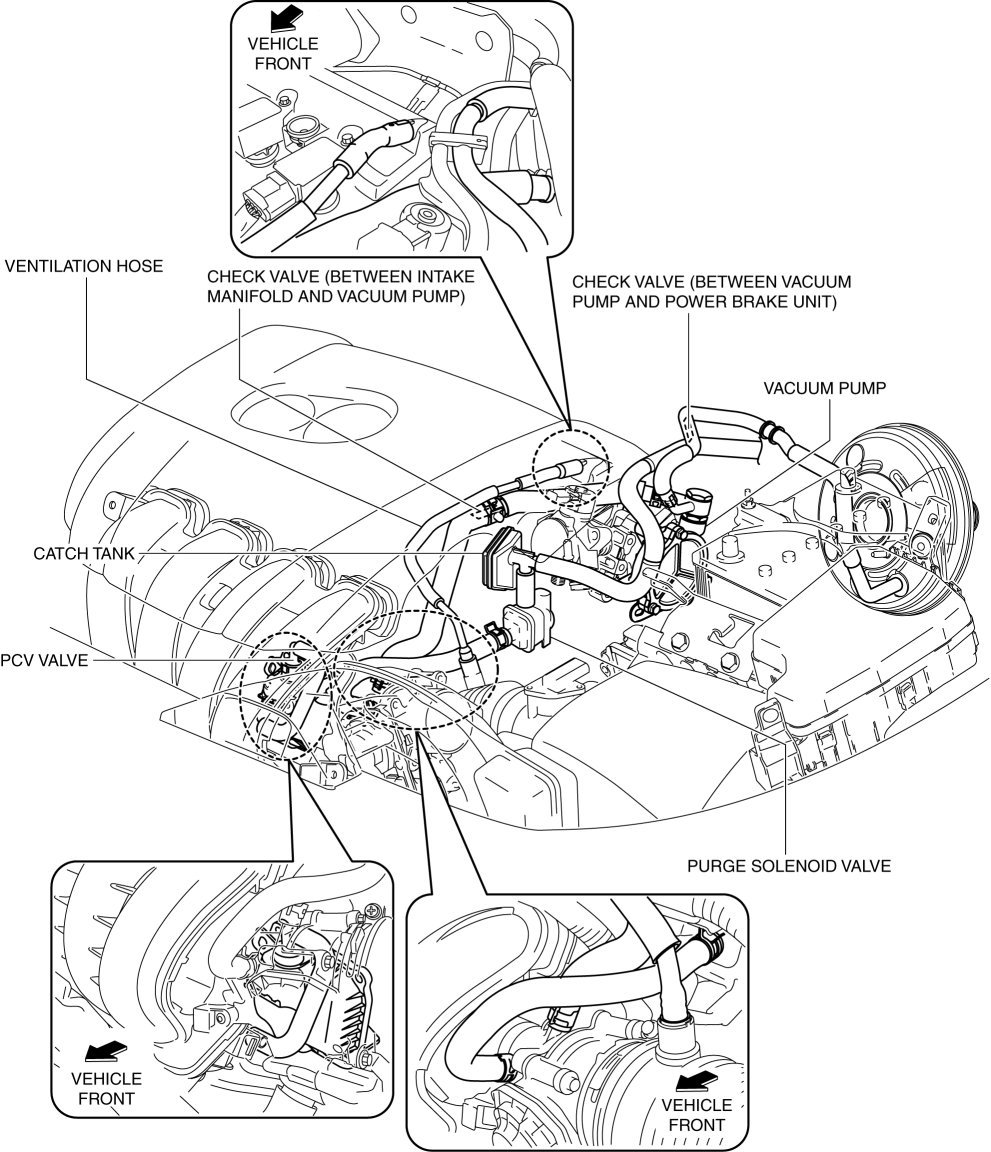

The emission system consists of the following parts:

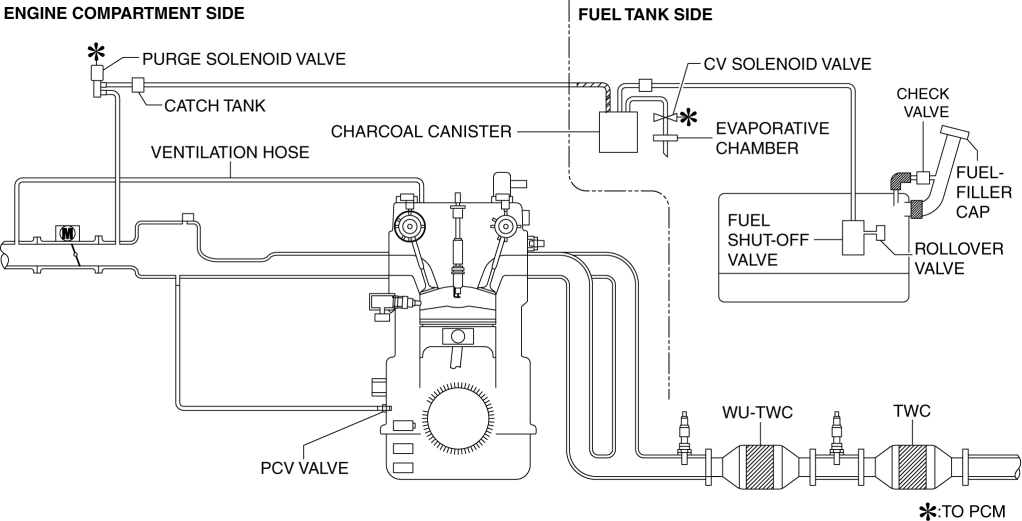

U.S.A. and CANADA


Part/System name		Reference
Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.5].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-G 2.5].)
Positive crankcase ventilation system (See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 2.5].)	PCV valve	(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 2.5].)
Evaporative emission control system (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 2.5].)	Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 2.5].)
	Catch tank	(See CATCH TANK [SKYACTIV-G 2.5].)
	Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 2.5].)
	Fuel shut-off valve	(See FUEL SHUT-OFF VALVE [SKYACTIV-G 2.5].)
	Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 2.5].)
	Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 2.5].)
	CV solenoid valve	(See CANISTER VENT (CV) SOLENOID VALVE [SKYACTIV-G 2.5].)
	Evaporative chamber	(See EVAPORATIVE CHAMBER [SKYACTIV-G 2.5].)
	Check valve	(See CHECK VALVE [SKYACTIV-G 2.5].)
Quick release connector (emission system)		(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-G 2.5].)

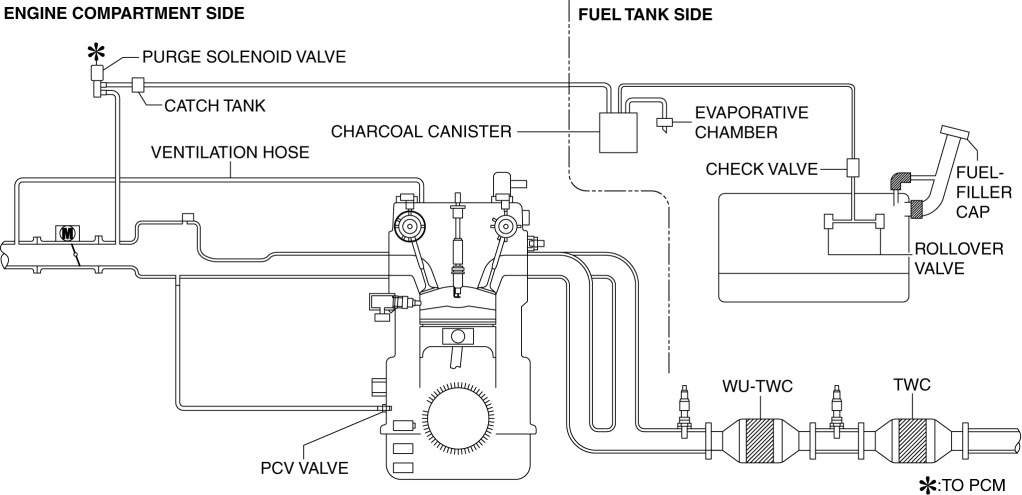

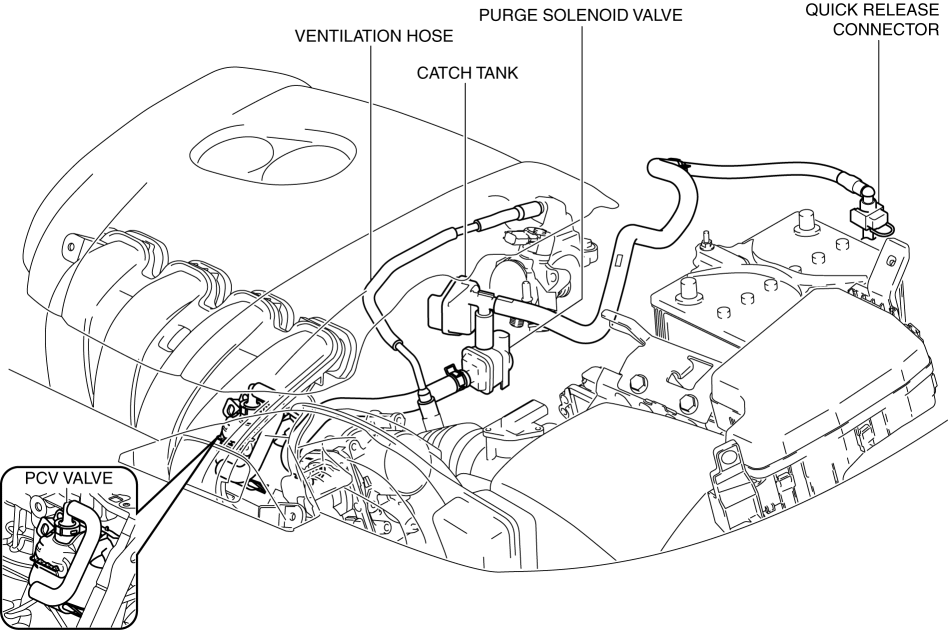

Except U.S.A. and CANADA


Part/System name		Reference
Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.5].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-G 2.5].)
Positive crankcase ventilation system (See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 2.5].)	PCV valve	(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 2.5].)
Evaporative emission control system (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 2.5].)	Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 2.5].)
	Catch tank	(See CATCH TANK [SKYACTIV-G 2.5].)
	Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 2.5].)
	Check valve	(See CHECK VALVE [SKYACTIV-G 2.5].)
	Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 2.5].)
	Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 2.5].)
	Evaporative chamber	(See EVAPORATIVE CHAMBER [SKYACTIV-G 2.5].)
Quick release connector (emission system)		(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-G 2.5].)
