Prevents release of evaporative gas into the atmosphere.
The intake manifold vacuum introduces evaporative gas to the intake manifold via the charcoal canister and the purge solenoid valve.
U.S.A. and CANADA
Except U.S.A. and CANADA
U.S.A. and CANADA

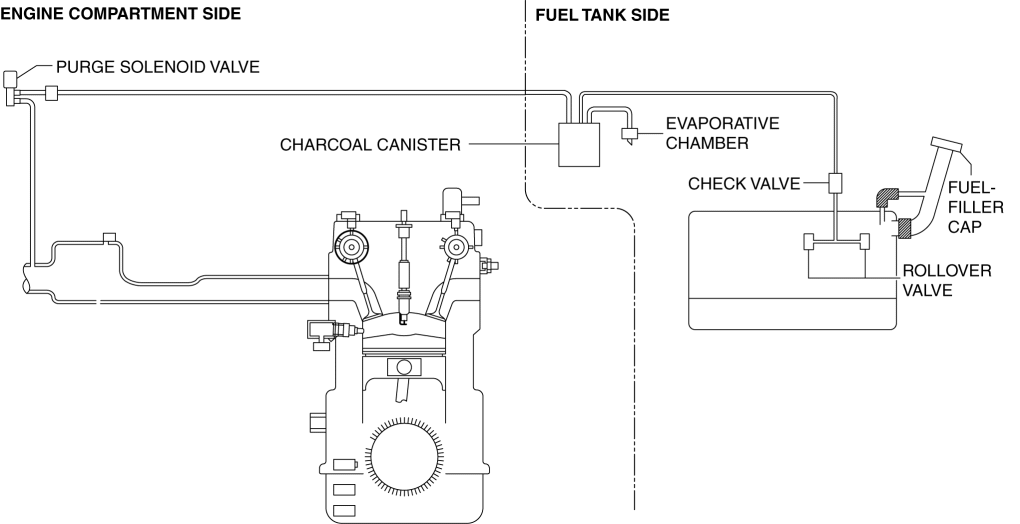

The evaporative emission control system consists of the following parts:
| Part name | Reference |
| Purge solenoid valve | |
| Catch tank | (See CATCH TANK [SKYACTIV-G 2.5].) |
| Charcoal canister | |
| Evaporative chamber | |
| Fuel shut-off valve | |
| Rollover valve | |
| Fuel-filler cap | |
| CV solenoid valve | |
| Check valve | (See CHECK VALVE [SKYACTIV-G 2.5].) |
| Part name | Reference |
| Purge solenoid valve | |
| Catch tank | (See CATCH TANK [SKYACTIV-G 2.5].) |
| Charcoal canister | |
| Evaporative chamber | |
| Check valve | (See CHECK VALVE [SKYACTIV-G 2.5].) |
| Rollover valve | |
| Fuel-filler cap |
