2014 - Mazda6 - Engine

PURGE SOLENOID VALVE [SKYACTIV-G 2.5]

Purpose, Function

• Introduces evaporative gas absorbed by the charcoal canister to the intake manifold.

• The purge solenoid valve opens according to the control signal from the PCM.

Construction

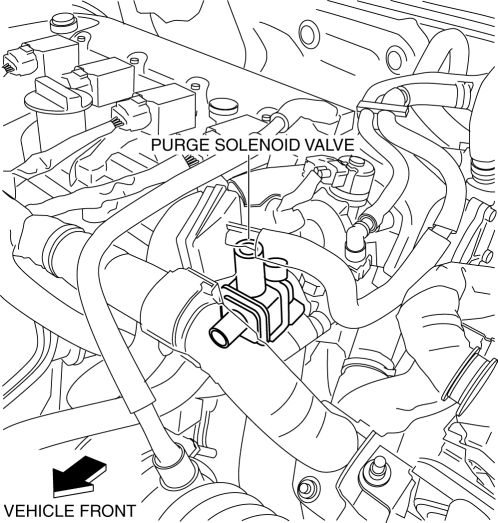

• The purge solenoid valve is installed in the engine compartment.

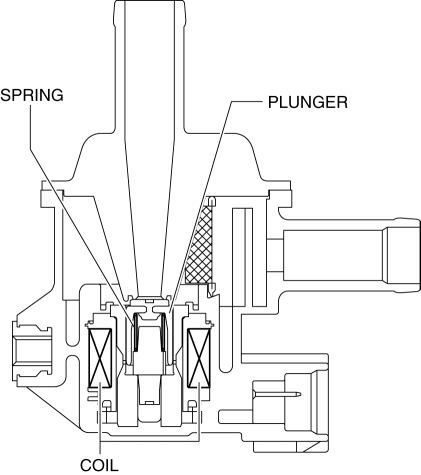

• The purge solenoid valve consists of a coil, spring, and plunger.



Operation

• According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the purge solenoid valve.



• When the purge solenoid valve is open, evaporative gas flows from the charcoal canister to the intake manifold side.

  Purge solenoid valve open/closed view



• For evaporative purge control details, refer to CONTROL SYSTEM. (See PURGE CONTROL [SKYACTIV-G 2.5].)

Fail-safe

• Function not equipped.
