2014 - Mazda6 - Engine

ROLLOVER VALVE [SKYACTIV-G 2.5]

Purpose, Function

• Prevents fuel from flowing into the evaporative gas passage during sudden cornering or vehicle rollover.

Construction

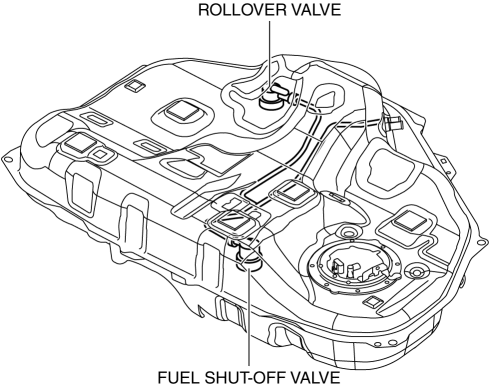

• The rollover valve is built into the fuel tank.

  U.S.A. and CANADA



  Except U.S.A. and CANADA

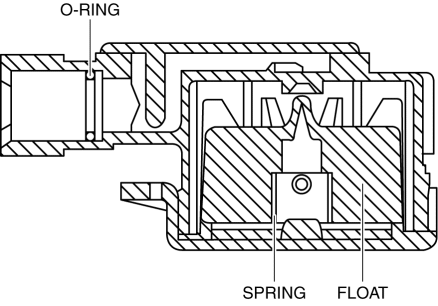

• The rollover valve consists of a float, O-ring and spring.

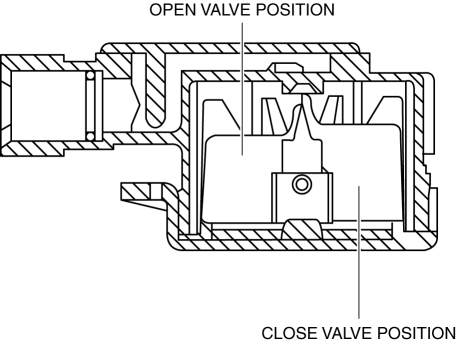

Operation

• The rollover valve utilizes a combination of float weight, spring force, and buoyancy. When the float is immersed in the fuel, the float (valve) closes to block the sealing surface of the passage.
