The audio unit controls the CD, radio, exterior input devices (AUX/USB/iPod) and the display.
Records the following items which the user has set.
| Item | Specification |
|
| Preset memory | AM | 6 |
| LW/AM | 6 |
|
| FM1 | 6 |
|
| FM2 | 6 |
|
| SIRIUS (SAT1) | 6 |
|
| SIRIUS (SAT2) | 6 |
|
| SIRIUS (SAT3) | 6 |
|
The imbedded touch panel type display in the audio unit displays music information for CD and radio, and it also displays back camera images and the navigation screen.
The audio unit has the following functions:
A USB device such as USB memory or an iPod connected to the auxiliary jack/USB port can be controlled by the audio unit.
By operating the display of the audio unit, the following personalization features can be set.
Door Locks Systems
Advanced keyless entry system
Auto Re-lock Time
Lock Beep Volume
Walk Away Lock
Keyless entry system
Auto Re-lock Time
Power door lock system
Unlock Mode (Without Touch Sensor)
Auto Door Lock Mode
Lighting Systems
Turn light system
3-Flash Turn Signal
Auto light system
Auto-headlight On
Auto Light OFF System
Headlight Off Timer
High Beam Control (HBC) System
High Beam Control
Room Light Control System
Interior Light Timeout - Door Open
Interior Light Timeout - Door Closed
Wiper/Washer System
Rain Sensing Wipers
NOTE:
For details on each personalization feature, refer to personalization items for each system. (See SECURITY AND LOCKS PERSONALIZATION.) (See LIGHTING SYSTEM PERSONALIZATION.) (See WIPER/WASHER SYSTEM PERSONALIZATION.)
| Item | Specification |
||
| Rated voltage | (V) | 12 |
|
| Frequency range | AM | (kHz) | 530—1,710 |
| FM | (MHz) | 87.75—107.9 |
|
| Amplifier maximum output | (W) | With Bose ®: 231 (external audio amplifier) Without Bose®: 25×4 |
|
| Output impedance | (ohm) | 4 |
|
| Display | Size | (inches) | 480×272 (5.8) |
| Type | TFT *(Thin Film Transistor): Full-color |
||

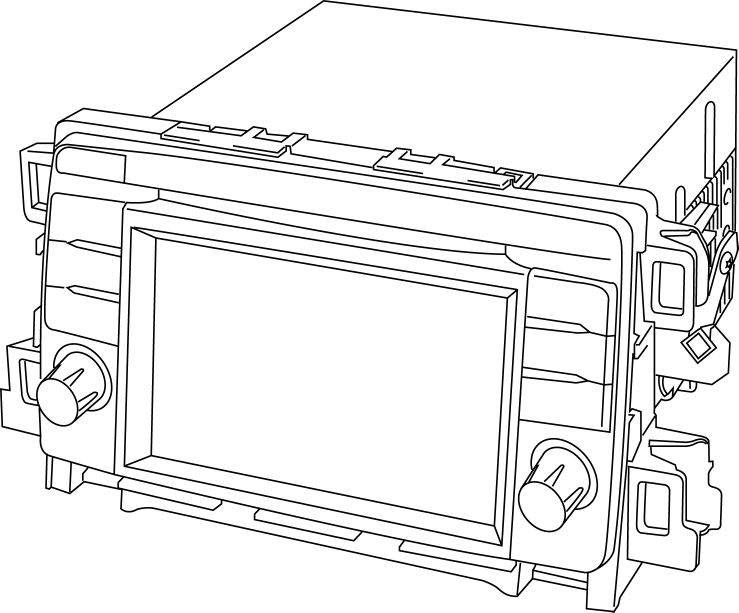

An audio unit with AM/FM tuner/MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) applicable CD player is assembled in the audio panel.
| Terminal | Signal |
|
|
| 1A | Front door speaker LH (+) |
| 1B | B+ |
|
| 1C | Front door speaker LH (-) |
|
| 1D | Front door speaker RH (+) |
|
| 1E | TNS (+) |
|
| 1F | Front door speaker RH (-) |
|
| 1G | TNS (–) |
|
| 1H | Steering switch3 |
|
| 1I | Vehicle speed signal |
|
| 1J | AMP control *1 |
|
| 1K | — |
|
| 1L | — |
|
| 1M | R position signal |
|
| 1N | Steering switch 1 |
|
| 1O | CAN_H |
|
| 1P | Steering switch 2 |
|
| 1Q | CAN_L |
|
| 1R | ACC |
|
| 1S | Rear door speaker LH (+) |
|
| 1T | AudioPilot®2 *1 |
|
| 1U | Rear door speaker LH (-) |
|
| 1V | Rear door speaker RH (+) |
|
| 1W | Power ground |
|
| 1X | Rear door speaker RH (-) |
|
|
| 2A | Bluetooth voice input RH (+) |
| 2B | Bluetooth voice input RH (-) |
|
| 2C | Bluetooth voice input LH (+) |
|
| 2D | Bluetooth voice input LH (-) |
|
| 2E | Audio voice input RH (+) |
|
| 2F | Audio voice input RH (-) |
|
| 2G | Audio voice input LH (+) |
|
| 2H | Audio voice input LH (-) |
|
| 2I | HS-CAN (+) |
|
| 2J | HS-CAN (-) |
|
| 2L | Microphone voice input (+) |
|
| 2N | Microphone voice input (-) |
|
| 2P | Microphone ground |
|
| 2R | Microphone power supply |
|
| 2T | Microphone detect |
|
| 2V | — |
|
| 2W | AUX detection |
|
| 2X | AUX signal LH RH (-) |
|
| 2Y | AUX signal RH (+) |
|
| 2Z | AUX signal LH (+) |
|
| 2AA | — |
|
| 2AB | — |
|
| 2AC | — |
|
| 2AD | — |
|
|
| 3A | CM-SW GND*2 |
| 3B | CM-SW1*2 |
|
| 3C | — |
|
| 3D | CM-SW3*2 |
|
| 3E | Commander connection detection *2 |
|
| 3F | CM-PH GND*2 |
|
| 3G | CM-PH2*2 |
|
| 3H | CM-PH2*2 |
|
|
| 5A | USB power supply |
| 5B | USB data (+) |
|
| 5C | USB power ground |
|
| 5D | USB data (-) |
|
|
| 6A | Rear mount camera power supply *3 |
| 6B | Rear mount camera power supply ground*3 |
|
| 6C | Rear mount camera image ground*3 |
|
| 6D | Rear mount camera power signal input *3 |
|
| Terminal | Signal |
|
|
| 7A | ANT CONT |
| 7B | Antenna |
|

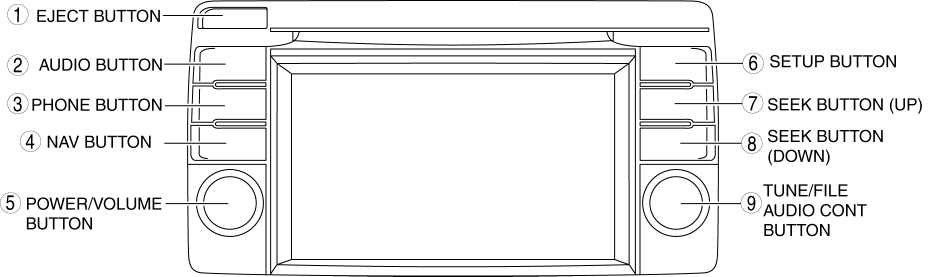

| No. | Switch name | Function |
| 1 | EJECT button | Ejects CD. |
| 2 | AUDIO button | Switches to audio screen. |
| 3 | PHONE button | Switches to Bluetooth dial screen. |
| 4 | NAV button | Switches to navigation screen. |
| 5 | POWER/VOLUME button | Audio power on/off and volume adjustment are possible. |
| 6 | SETUP button | Switches to setting screen. |
| 7 | SEEK button (up) | Fast-forwards current tracks or radio stations. |
| 8 | SEEK button (down) | Reverses current tracks or radio stations. |
| 9 | TUNE/FILE AUDIO CONT button |
|
For the audio unit operation, refer to the AUDIO SYSTEM.
When a panel switch on the audio unit or the SETUP switch on the commander switch is pressed, the system switches to SETUP mode.
When the vehicle button on the SETUP mode screen displayed in the audio unit display is pressed, the system names which can be set are displayed in the audio unit display.
The audio unit sends the personalization feature change information set by the user to the each control system (Start stop unit, rear body control module (RBCM), FSC) via CAN communication.
When each control system (Start stop unit, rear body control module (RBCM), FSC) receive the personalization feature change information, each personalization feature setting is changed according to the change information.
NOTE:
Refer to the Personalization Features for details on the method for setting the personalization features.
Function not equipped.
