The audio unit controls the CD, radio, exterior input devices (AUX/USB/iPod) and the display.
The display integrated into the audio unit displays audio information such as CD and radio related information.
Records the following items which the user has set.
| Item | Specification |
|
| Preset memory | AM | 6 |
| FM1 | 6 |
|
| FM2 | 6 |
|
A USB device such as USB memory or an iPod connected to the auxiliary jack/USB port can be controlled by the audio unit.
Information such as CD and radio related information can be displayed in the audio unit display in Latin characters.
| Item | Specification |
||
| Rated voltage | (V) | 12 |
|
| Frequency range | AM | (kHz) | 530—1710 |
| FM | (MHz) | 87.75—107.9 |
|
| Amplifier maximum output | (W) | 25×4 |
|
| Output impedance | (ohm) | 4 |
|
An audio unit with integrated AM/FM tuner/MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) applicable CD player is assembled to the audio panel.

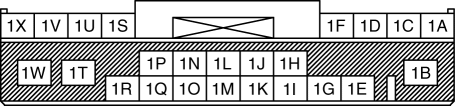

| Terminal | Signal |
|
|
| 1A | Front door speaker LH (+) |
| 1B | B+ |
|
| 1C | Front door speaker LH (-) |
|
| 1D | Front door speaker RH (+) |
|
| 1E | TNS (+) |
|
| 1F | Front door speaker RH (-) |
|
| 1G | TNS (–) |
|
| 1H | — |
|
| 1I | Vehicle speed signal |
|
| 1J | — |
|
| 1K | — |
|
| 1L | DIM cancel |
|
| 1M | — |
|
| 1N | Steering switch 1 |
|
| 1O | — |
|
| 1P | Steering switch 2 |
|
| 1Q | — |
|
| 1R | ACC |
|
| 1S | Rear door speaker LH (+) |
|
| 1T | — |
|
| 1U | Rear door speaker LH (-) |
|
| 1V | Rear door speaker RH (+) |
|
| 1W | Power ground |
|
| 1X | Rear door speaker RH (-) |
|
|
| 2A | — |
| 2B | — |
|
| 2C | — |
|
| 2D | — |
|
| 2E | — |
|
| 2F | — |
|
| 2G | — |
|
| 2H | — |
|
| 2I | — |
|
| 2J | — |
|
| 2L | — |
|
| 2N | — |
|
| 2P | — |
|
| 2R | — |
|
| 2T | — |
|
| 2V | — |
|
| 2W | AUX detect |
|
| 2X | AUX signal LH, RH (-) |
|
| 2Y | AUX signal RH (+) |
|
| 2Z | AUX signal LH (+) |
|
| 2AA | — |
|
| 2AB | — |
|
| 2AC | — |
|
| 2AD | — |
|
|
| 3A | USB power ground |
| 3B | USB data (+) |
|
| 3C | USB power supply |
|
| 3D | USB data (-) |
|
| Terminal | Signal |
|
|
| 4A | ANT control |
| 4B | Antenna |
|

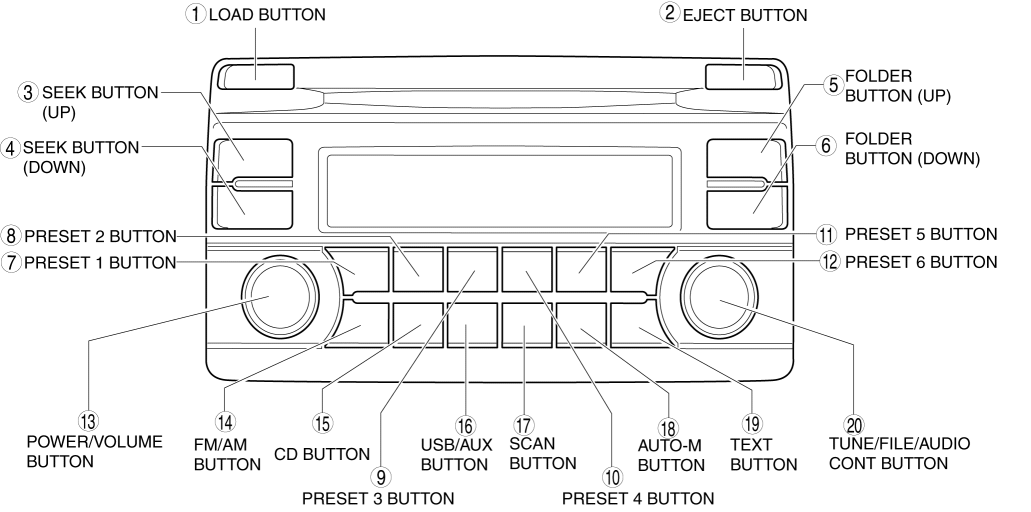

| No. | Switch name | Function |
| 1 | LOAD button | Loads and plays CDs. |
| 2 | EJECT button | Ejects CD. |
| 3 | SEEK button (up) | Fast-forwards current tracks or radio stations. |
| 4 | SEEK button (down) | Reverses current tracks or radio stations. |
| 5 | FOLDER button (up) | Selects folder to be played (MP3/WMA/AAC/CD playback). |
| 6 | FOLDER button (down) | Selects folder to be played (MP3/WMA/AAC/CD playback). |
| 7 | PRESET 1 button | Switches to radio station programmed in Preset 1. |
| 8 | PRESET 2 button | Switches to radio station programmed in Preset 2. |
| 9 | PRESET 3 button | Switches to radio station programmed in Preset 3. |
| 10 | PRESET 4 button | Switches to radio station programmed in Preset 4. |
| 11 | PRESET 5 button | Switches to radio station programmed in Preset 5. |
| 12 | PRESET 6 button | Switches to radio station programmed in Preset 6. |
| 13 | POWER/VOLUME button | Audio power on/off and volume adjustment are possible. |
| 14 | FM/AM button | Switches to radio mode. |
| 15 | CD button | Switches to CD mode. |
| 16 | USB/AUX button | Switches to USB mode/AUX mode. |
| 17 | SCAN button | Search and selection of receivable radio station is possible. |
| 18 | AUTO-M button | Stores up to six receivable stations. |
| 19 | TEXT button | Switches LCD indication. |
| 20 | TUNE/FILE/AUDIO CONT button |
|
