FUEL SYSTEM [SKYACTIV-G 2.5]

Purpose, Outline

A multiple hole type fuel injector has been adopted which provides higher fuel injection accuracy for improved fuel efficiency and output.

Piston movement-compression by the 4-head cam inside the high pressure fuel pump heightens the fuel pressure, achieving improved fuel efficiency and output.

Structural View

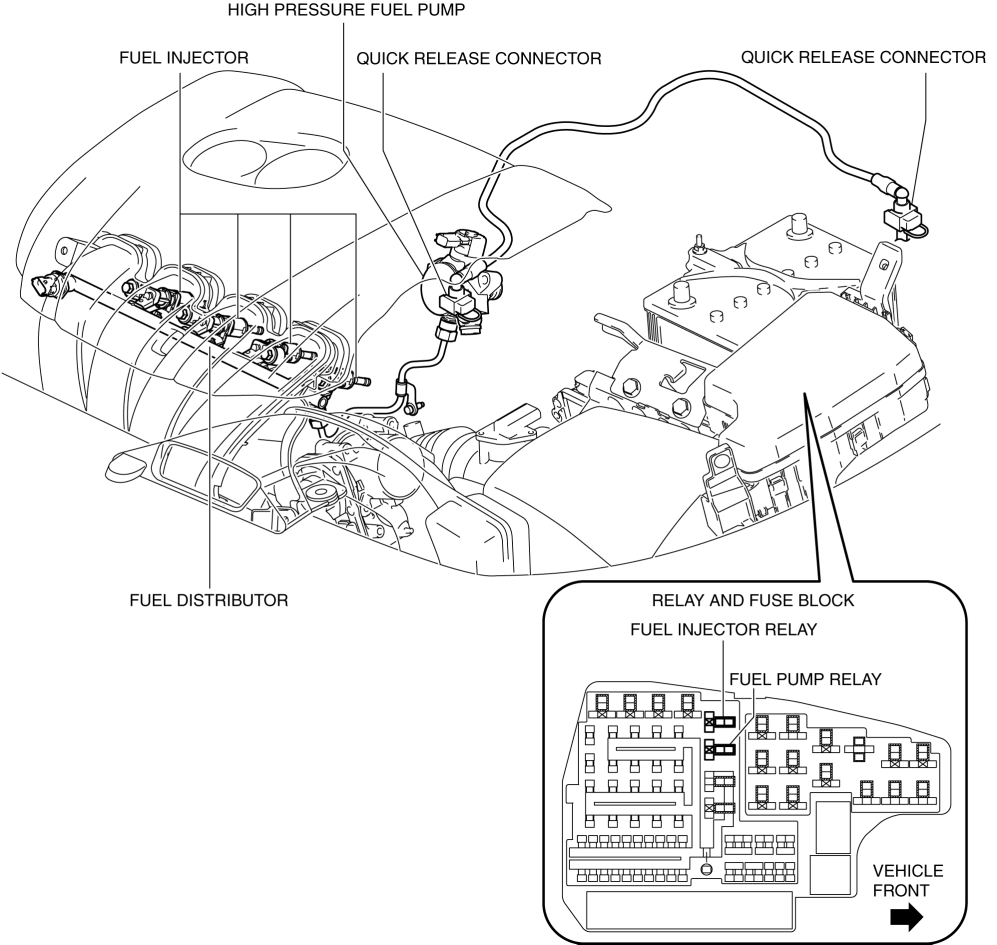

Engine compartment side

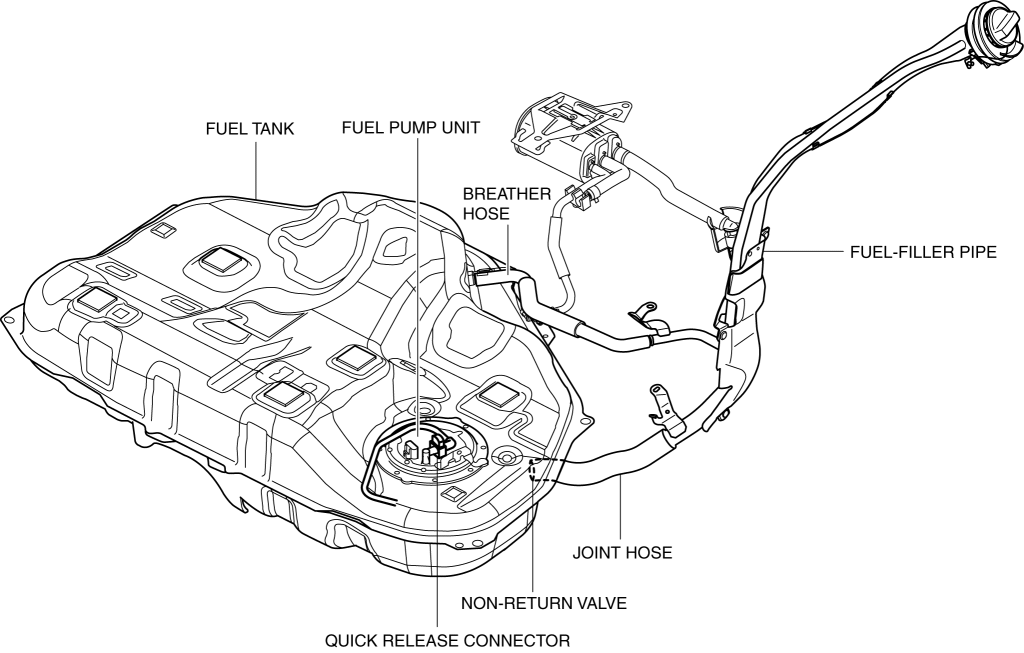

Fuel tank side

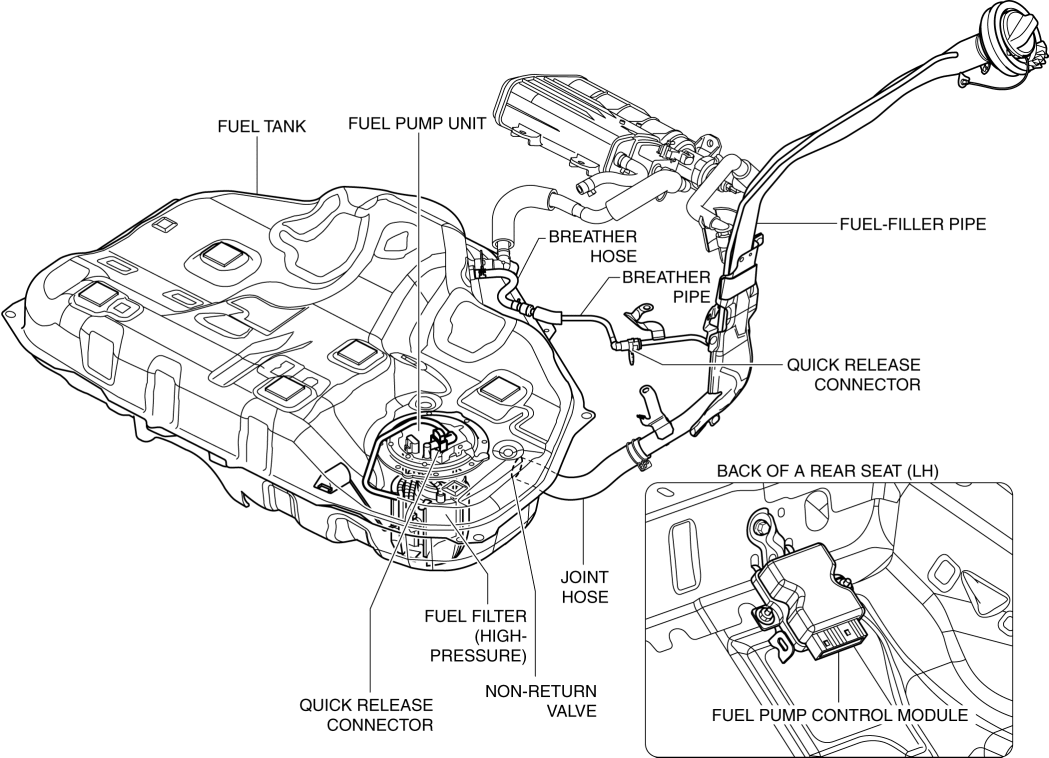

U.S.A. and CANADA

Except U.S.A. and CANADA

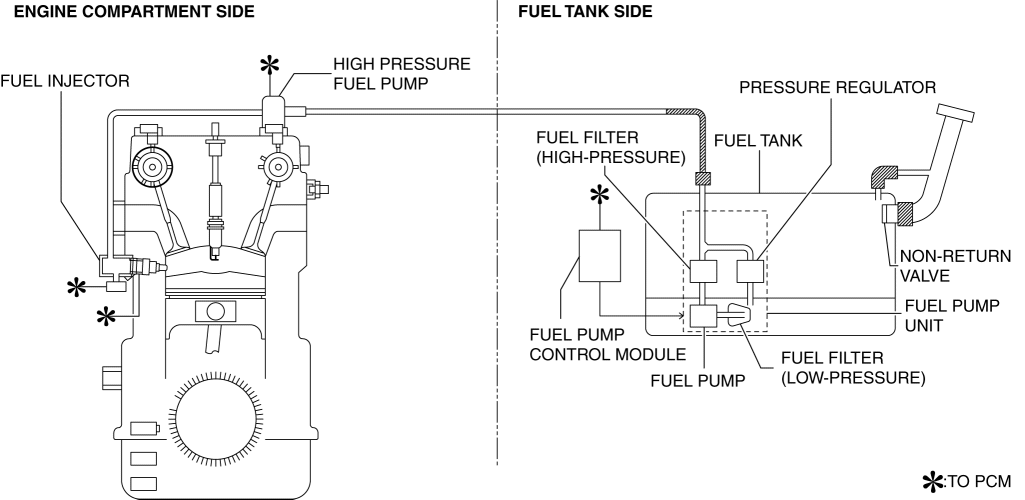

System Diagram

Structure

The fuel system consists of the following parts:


Part/System name		Reference
Return-less fuel system (See RETURNLESS FUEL SYSTEM [SKYACTIV-G 2.5].)	Fuel pump unit	(See FUEL PUMP UNIT [SKYACTIV-G 2.5].)
Direct fuel injection system (See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 2.5].)	High pressure fuel pump	(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 2.5].)
	Fuel distributor	(See FUEL DISTRIBUTOR [SKYACTIV-G 2.5].)
	Fuel injector	(See FUEL INJECTOR [SKYACTIV-G 2.5].)
Fuel tank		(See FUEL TANK [SKYACTIV-G 2.5].)
Non-return valve		(See NON-RETURN VALVE [SKYACTIV-G 2.5].)
Fuel pump relay		(See FUEL PUMP RELAY [SKYACTIV-G 2.5].)
Fuel injector relay		(See FUEL INJECTOR RELAY [SKYACTIV-G 2.5].)
Fuel pump control module		(See FUEL PUMP CONTROL MODULE [SKYACTIV-G 2.5].)
Quick connector (fuel system)		(See QUICK RELEASE (FUEL SYSTEM) CONNECTOR [SKYACTIV-G 2.5].)

Specification


Item		Specification
Fuel injector	Type	High resistance
	Fuel supply method	Top-feed
	Drive types	Electronic
Pressure regulator control pressure	(kPa {kgf/cm², psi})	Approx. 430 {4.38, 62.4}
Fuel pump type		Electric
Fuel tank capacity	(L {US gal, Imp gal})	62.0 {16.4, 13.6}

Fuel type


Fuel	Octane Rating^* (Anti-knock index)
Regular unleaded fuel	87 [(R+M)/2 method] or above (91 RON or above)

*: U.S. federal law requires that octane ratings be posted on gasoline station pumps.
