2014 - Mazda6 - Engine

FUEL PUMP RELAY [SKYACTIV-G 2.5]

Purpose, Function

• Controls the fuel pump on/off according to control signals from the PCM.

• The fuel pump is operated only at engine start or when the engine is running to improve safety.

Construction

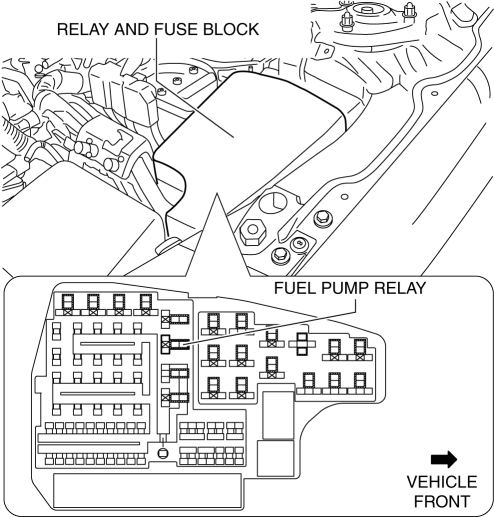

• The fuel pump relay is installed in the relay and fuse block.

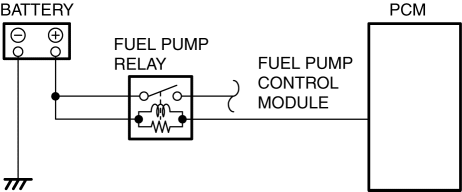

Operation

• The contact point is on when the battery voltage is supplied to the coil based on the signal from the PCM, and the battery voltage is supplied to the fuel pump control module.



Fail-safe

• Function not equipped.
