2014 - Mazda6 - Engine

FUEL INJECTOR RELAY [SKYACTIV-G 2.5]

Purpose, Function

• Supplies power to the PCM for the fuel injector and spill valve control solenoid valve operation.

Construction

• The fuel injector relay is installed in the relay and fuse block.



Operation

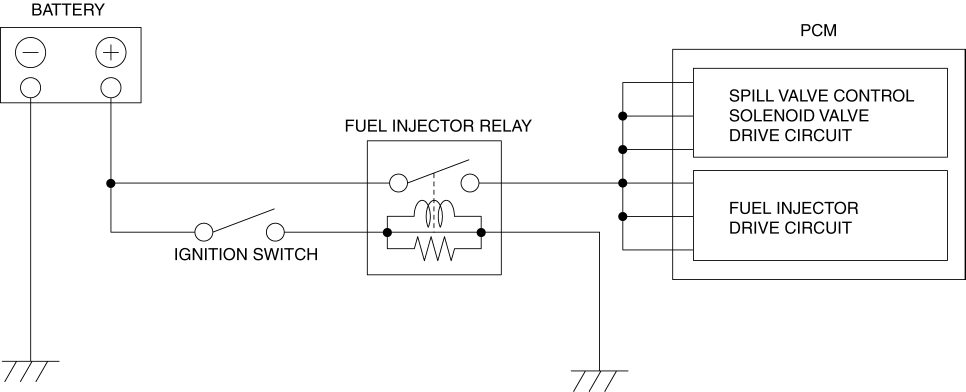

• When the ignition is switched ON, the battery voltage is supplied to the coil and the contact point is on, thus the battery voltage is supplied to the PCM.



Fail-safe

• Function not equipped.
