2014 - Mazda6 - Engine

FUEL TANK [SKYACTIV-G 2.5]

Purpose, Function

• Store fuel safely and supply fuel to the engine.

Construction

• The fuel tank is installed below the rear seat.



• The fuel tank is made of steel.

• The following parts are integrated in the fuel tank.

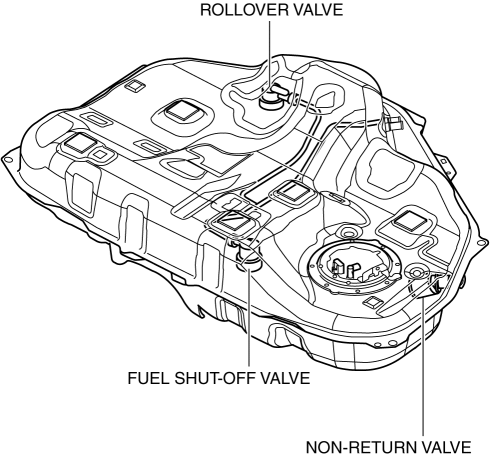

U.S.A. and CANADA

• Non-return valve

  (See NON-RETURN VALVE [SKYACTIV-G 2.5].)

• Rollover valve

  (See ROLLOVER VALVE [SKYACTIV-G 2.5].)

• Fuel shut-off valve

  (See FUEL SHUT-OFF VALVE [SKYACTIV-G 2.5].)

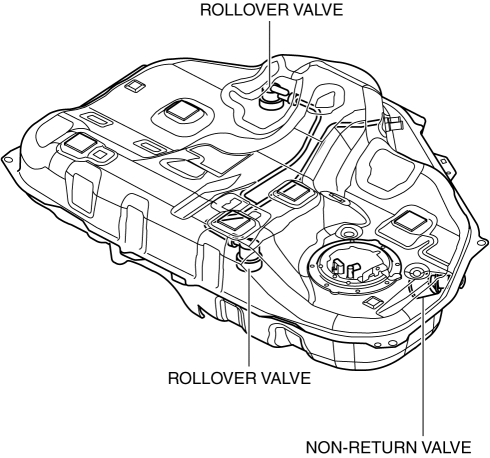

Except U.S.A. and CANADA

• Non-return valve

  (See NON-RETURN VALVE [SKYACTIV-G 2.5].)

• Rollover valve

  (See ROLLOVER VALVE [SKYACTIV-G 2.5].)
