VENTILATOR GRILLE REMOVAL/INSTALLATION

Side Ventilator Grille

CAUTION:

• Affix protective tape to the position shown in the figure.



1. Insert a tape-wrapped flathead screwdriver in the position indicated by the arrow (1) in the figure and detach hook A.

2. Remove the side ventilator grille in the direction of the arrow (2) shown in the figure.

3. Install in the reverse order of removal.

Center Ventilator Grille

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)

2. Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

3. Push the edge of center ventilator grille in the direction of arrow (1) and detach hooks C.

4. Remove the center ventilator grille in the direction of arrow (2) shown in the figure.

5. Install in the reverse order of removal.

Rear Ventilator Grille

1. Remove the console panel. (See REAR CONSOLE REMOVAL/INSTALLATION.)

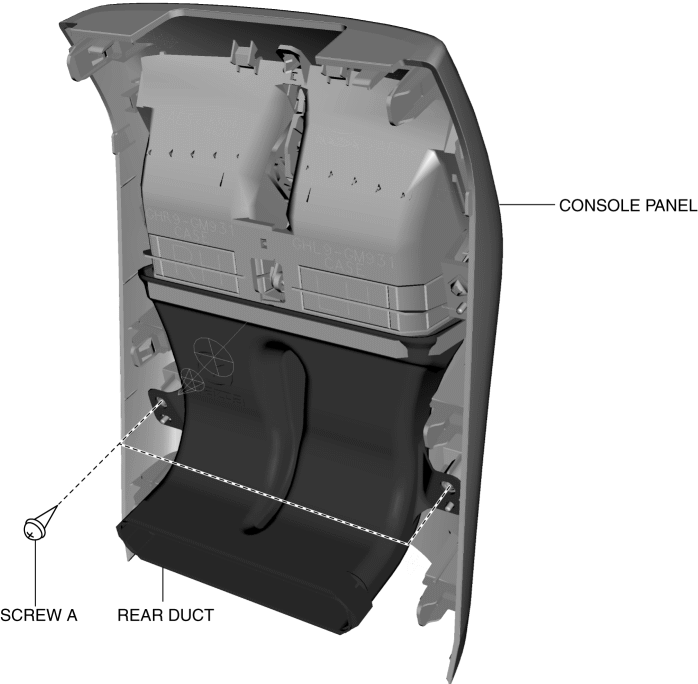

2. Remove the screws A, then remove the rear duct.

3. Remove screws A.

4. Remove the rear ventilator grille in the direction of arrow (1) shown in the figure while detaching hooks A.

5. Install in the reverse order of removal.
