System malfunction location

• B0094:11: Crash zone sensor circuit short to body ground

• B0094:13: Crash zone sensor circuit open circuit or short to power supply

• B0094:87: Signal reception error from crash zone sensor

• B0094:96: Crash zone sensor internal malfunction

Detection condition

WARNING:

• Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

• Wiring harness between the crash zone sensor and SAS control module has a malfunction

• Crash zone sensor has a malfunction

Fail-safe

Not applicable

Possible cause

• Crash zone sensor connector malfunction

• Short circuit to power supply or body ground in the wiring harness between the crash zone sensor and SAS control module

• Open circuit in the wiring harness between the crash zone sensor and SAS control module

• Crash zone sensor malfunction

• SAS control module malfunction

Step

Inspection

Action

1

WARNING:

• Handling the component parts improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings/cautions and the workshop manual before handling the air bag system components.

  (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• Switch the ignition off.

• Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)

• Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

• Disconnect the crash zone sensor connector. (See CRASH ZONE SENSOR REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• Inspect the crash zone sensor connector. (Corrosion, damage, and disconnected pins)

• Is there any malfunction of the crash zone sensor connector?

Yes

Replace the malfunctioning part, then go to Step 5.

No

Go to the next step.

2

• Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

• Disconnect the clock spring connector. (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

• Disconnect the passenger-side air bag module connector. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• Disconnect the driver and passenger-side front seat connector. (See FRONT SEAT REMOVAL/INSTALLATION.)

• Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side curtain air bag module connector. (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side pre-tensioner seat belt connector. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

• Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

• Disconnect the all SAS control module connectors. (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

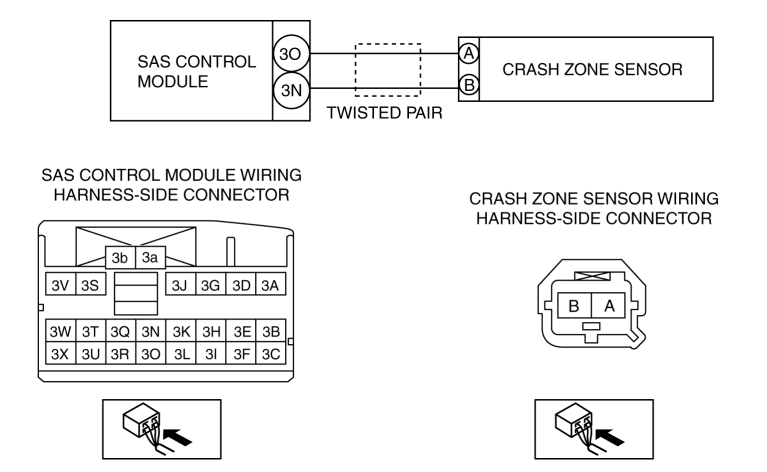

• Inspect for continuity between the following terminals (wiring harness-side) and body ground:

• SAS control module terminal 3O

• SAS control module terminal 3N

NOTE:

• Inspect for continuity while shaking the wiring harness between the SAS control module and crash zone sensor.

• Is there continuity?

Yes

Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and crash zone sensor terminal.

If there is a common connector:

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.

• Replace the malfunctioning part.

If there is no common connector:

• Replace the wiring harness which has a short to ground.

Go to Step 5.

No

Go to the next step.

3

• Crash zone sensor and SAS control module connectors are disconnected.

• Inspect for continuity between the following terminals (wiring harness-side):

• Crash zone sensor terminal A—SAS control module terminal 3O

• Crash zone sensor terminal B—SAS control module terminal 3N

NOTE:

• Inspect for continuity while shaking the wiring harness between the SAS control module and crash zone sensor.

• Is there continuity?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and crash zone sensor terminal.

If there is a common connector:

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.

• Replace the malfunctioning part.

If there is no common connector:

• Replace the wiring harness which has an open circuit.

Go to Step 5.

4

• Crash zone sensor and SAS control module connectors are disconnected.

• Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)

• Switch the ignition ON (engine off or on).

• Measure the voltage at the following terminals (wiring harness-side):

• SAS control module terminal 3O

• SAS control module terminal 3N

NOTE:

• Measure the voltage while shaking the wiring harness between the SAS control module and crash zone sensor.

• Is the voltage 0 V?

Yes

Replace the crash zone sensor, then go to the next step. (See CRASH ZONE SENSOR REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

No

Refer to the wiring diagram and verify whether or not there is a common connector between SAS control module terminal and crash zone sensor terminal.

If there is a common connector:

• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.

• Replace the malfunctioning part.

If there is no common connector:

• Replace the wiring harness which has a short to power supply.

Go to the next step.

5

• Switch the ignition off.

• Disconnect the negative battery cable and wait for 1 min or more.

• Connect the SAS control module connectors.

• Reconnect all disconnected connectors.

• Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)

• Switch the ignition ON (engine off or on).

• Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• Are the same DTCs present?

Yes

Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

No

DTC troubleshooting completed.
