2014 - Mazda6 - Body and Accessories

ON-BOARD DIAGNOSTIC SYSTEM [FRONT BODY CONTROL MODULE (FBCM)]

Outline

The on-board diagnostic function consists of the following functions: A malfunction detection function, which detects overall malfunctions in the front body control module (FBCM)-related parts; a memory function, which stores detected DTCs; a display function, which indicates malfunction locations and status via DTC output; and a PID/data monitoring function, which reads out specific input/output signals and verifies the input/output condition.

Using the Mazda Modular Diagnostic System (M-MDS), DTCs can be read out and deleted, and the PID/data monitoring function can be activated.

Malfunction detection function

Detects malfunctions in input/output signals.

If a malfunction occurs, the front body control module (FBCM) records the malfunction as a DTC. A recorded DTC can be read by the Mazda Modular Diagnostic System (M-MDS).

DTC table

×: Applicable—: Not applicable


DTC No.	Warning/indicator light	Description	Fail-safe function	Drive cycle	Self test type^*1	Memory function
B1008:02	—	Windshield wiper control signal mismatch	—	—	C, D	×
B1008:62	—	Windshield wiper LO switch signal mismatch	—	—	C, D	×
B1048:7B	—	Brake fluid level sensor circuit malfunction	—	—	C, D	×
B1087:88	—	LIN communication error	—	—	C, D	×
B1088:88	—	LIN communication error	—	—	C, D	×
B1092:11^*2	—	DRL relay circuit malfunction	—	—	C, D	×
B109A:12	—	Headlight HI relay circuit malfunction	—	—	C, D	×
B109A:14	—	Headlight HI relay circuit malfunction	—	—	C, D	×
B10A6:64^*3	—	Light switch error signal received	×	—	C, D	×
B10A8:12^*2	—	Headlight LO relay circuit malfunction	—	—	C, D	×
B10AD:86^*4	—	Error signal received from auto light sensor/rain sensor	—	—	C, D	×
B10AF:12	—	Blower relay circuit malfunction	—	—	C, D	×
B1142:13	—	IG1 relay circuit malfunction	—	—	C, D	×
B1143:13	—	IG2 relay control circuit malfunction	—	—	C, D	×
B1314:11	—	Illumination output circuit malfunction	—	—	C, D	×
B134D:02	—	Headlight control signal error	×	—	C, D	×
B13AF:62	—	Light switch LO signal mismatch	×	—	C, D	×
B13CF:19	—	IG2 power supply output circuit malfunction	—	—	C, D	×
B13D0:11	—	TNS circuit malfunction	—	—	C, D	×
B13D2:12^*5	—	Front fog light relay circuit malfunction	—	—	C, D	×
B13FE:12^*6	—	Headlight LO relay (RH) circuit malfunction	—	—	C, D	×
B13FE:14^*6	—	Headlight LO relay (RH) circuit malfunction	—	—	C, D	×
B141E:12^*6	—	Headlight LO relay (LH) circuit malfunction	—	—	C, D	×
B1C84:12	—	Rear window defroster relay circuit malfunction	—	—	C, D	×
B1C84:14	—	Rear window defroster relay circuit malfunction	—	—	C, D	×
B1D06:11	—	Turn light (LH) circuit malfunction	—	—	C, D	×
B1D06:13	—	Turn light (LH) circuit malfunction	—	—	C, D	×
B1D07:11	—	Turn light (RH) circuit malfunction	—	—	C, D	×
B1D07:13	—	Turn light (RH) circuit malfunction	—	—	C, D	×
C1126:11	—	Parking/front side marker light circuit malfunction	—	—	C, D	×
U0001:88	—	Module communication error (HS-CAN)	×	—	C, D	×
U0100:00	—	Communication error with PCM	×	—	C, D	×
U0101:00^*7	—	Communication error with TCM	×	—	C, D	×
U0151:00	—	Communication error with SAS control module	×	—	C, D	×
U0155:00	—	Communication error with instrument cluster	×	—	C, D	×
U0214:00	—	Communication error with start stop unit	×	—	C, D	×
U0231:68^*4	—	Communication error with auto light sensor/rain sensor	—	—	C, D	×
U023A:00^*8	—	Communication error with forward sensing camera (FSC)	×	—	C, D	×
U0338:09	—	Error light switch signal received from start stop unit	×	—	C, D	×
U0401:68	—	Error signal received from PCM	—	—	C, D	×
U053B:68^*8	—	Error signal received from forward sensing camera (FSC)	—	—	C, D	×
U2005:68	—	Error vehicle speed signal received from PCM	—	—	C, D	×
U2100:00	—	Front body control module (FBCM) configuration error	—	—	C, D	×
U2101:00	—	Front body control module (FBCM) configuration error	—	—	C, D	×
U3000:49	—	Front body control module (FBCM) internal malfunction	—	—	C, D	×
U3000:56	—	Front body control module (FBCM) configuration error	—	—	C, D	×
U3003:16	—	Front body control module (FBCM) power supply voltage (+B power supply) low input	—	—	C, D	×
U3003:17	—	Front body control module (FBCM) power supply voltage high input	—	—	C, D	×
U3006:62	—	Front body control module (FBCM) power supply voltage mismatch	—	—	C, D	×

^*1: C: CMDTC self test, D: ODDTC self test
^*2: Without discharge headlight system
^*3: Without auto light sensor/rain sensor
^*4: With auto light sensor/rain sensor
^*5: With front fog light
^*6: With discharge headlight system
^*7: ATX
^*8: With forward sensing camera (FSC)

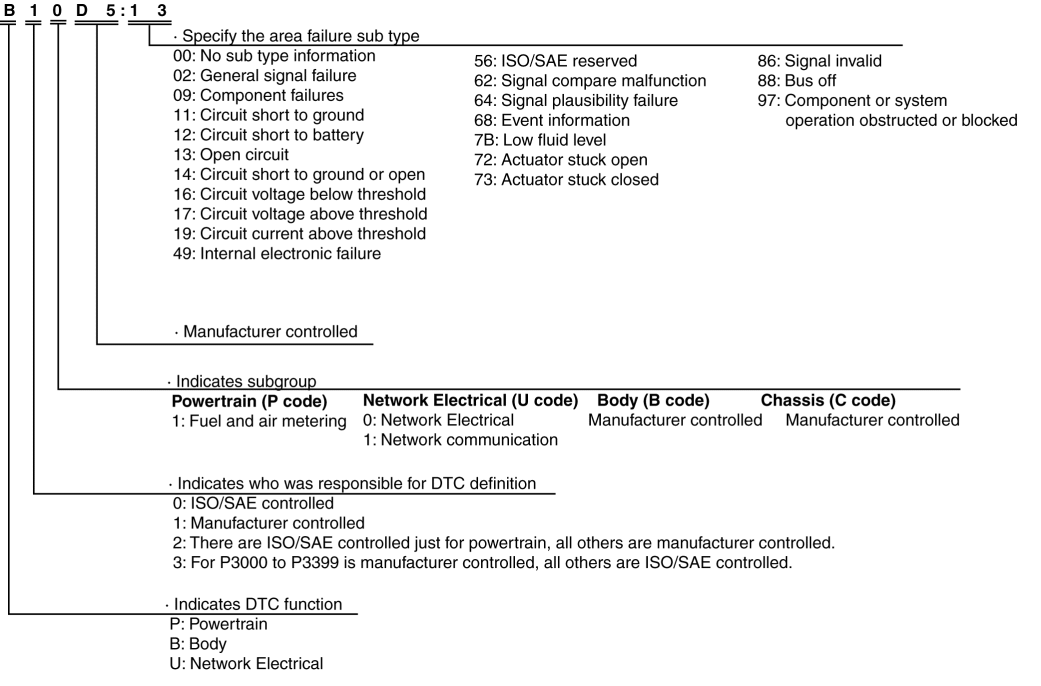

DTC 7-digit code definition

When related systems or components have failed, the CM stores the DTC of the malfunctioning part in the CM memory, and allows for the retrieval of the stored data using the scanning tool when necessary. The DTCs are indicated using seven digits. Each digit indicates the following.

Status byte for DTC

The status byte is the two digits (after hyphen) after the 7-digit DTC.

The status byte is a code which indicates the pending code, current/past malfunction status, or warning illumination status.

The status byte can be read by performing a CMDTC self-test using the Mazda Modular Diagnostic System (M-MDS).

For details on the status byte, refer to the explanation on the Mazda Modular Diagnostic System (M-MDS) when reading the DTC.

Detection condition for the applicable DTC


DTC	System malfunction location	Detection condition
B1008:02	Windshield wiper control signal mismatch	Front body control module (FBCM) receives the error signals from the start stop unit with the ignition switched ON (engine off or on).
B1008:62	Windshield wiper LO switch signal mismatch	The condition in which the CAN and module signals are compared and no match is detected between the signals for 5 s or more with the ignition switched ON (engine off or on).
B1048:7B	Brake fluid level sensor circuit malfunction	Front body control module (FBCM) detected that the brake fluid level is less than MIN with the ignition switched ON (engine off or on).
B1087:88	LIN communication error	LIN bus communication line malfunction detected for 1 s or more
B1088:88	LIN communication error	LIN bus communication line malfunction detected for 1 s or more
B1092:11	DRL relay circuit malfunction	Front body control module (FBCM) detects a short to ground in the DRL relay circuit with the ignition switched ON (engine off or on).
B109A:12	Headlight HI relay circuit malfunction	Front body control module (FBCM) detects a short to power supply in the headlight HI relay circuit with the ignition switched ON (engine off or on).
B109A:14	Headlight HI relay circuit malfunction	Front body control module (FBCM) detects an open circuit or short to ground in the headlight HI relay circuit with the ignition switched ON (engine off or on).
B10A6:64	Light switch error signal received	Front body control module (FBCM) receives the error signals from the start stop unit for 5 s or more with the ignition switched ON (engine off or on).
B10A8:12	Headlight LO relay circuit malfunction	Front body control module (FBCM) detects a short to power supply in the headlight LO relay circuit with the ignition switched ON (engine off or on).
B10AD:86	Error signal received from auto light sensor/rain sensor	Front body control module (FBCM) receives the error signals from the auto light sensor/rain sensor 10 times continuously with the ignition switched ON (engine off or on).
B10AF:12	Blower relay circuit malfunction	Front body control module (FBCM) detects a short to power supply in the blower relay circuit with the ignition switched ON (engine off or on).
B1142:13	IG1 relay circuit malfunction	Front body control module (FBCM) detects an open circuit in the IG1 relay circuit for 2 s or more with the ignition switched ON (engine off or on).
B1143:13	IG2 relay control circuit malfunction	Front body control module (FBCM) detects an open circuit in the IG2 relay control circuit for 2 s or more with the ignition switched ON (engine off or on).
B1314:11	Illumination output circuit malfunction	Front body control module (FBCM) detects a short to ground in the illumination output circuit with the ignition switched ON (engine off or on).
B134D:02	Headlight control signal error	Front body control module (FBCM) receives the error signal from the start stop unit for 5 s or more with the ignition switched ON (engine off or on).
B13AF:62	Light switch LO signal mismatch	The condition in which the CAN and module signals are compared and no match is detected between the signals for 5 s or more with the ignition switched ON (engine off or on).
B13CF:19	IG2 power supply output circuit malfunction	Front body control module (FBCM) detects over-current in the IG2 power supply output circuit with the ignition switched ON (engine off or on).
B13D0:11	TNS circuit malfunction	Front body control module (FBCM) detects a short to ground in the TNS relay circuit with the ignition switched ON (engine off or on).
B13D2:12	Front fog light relay circuit malfunction	Front body control module (FBCM) detects a short to power supply in the front fog light relay circuit with the ignition switched ON (engine off or on).
B13FE:12	Headlight LO relay (RH) circuit malfunction	Front body control module (FBCM) detects a short to power supply in the headlight LO relay (RH) circuit with the ignition switched ON (engine off or on).
B13FE:14	Headlight LO relay (RH) circuit malfunction	Front body control module (FBCM) detects an open circuit or short to ground in the headlight LO relay (RH) circuit with the ignition switched ON (engine off or on).
B141E:12	Headlight LO relay (LH) circuit malfunction	Front body control module (FBCM) detects a short to power supply in the headlight LO relay (LH) circuit with the ignition switched ON (engine off or on).
B1C84:12	Rear window defroster relay circuit malfunction	Front body control module (FBCM) detects a short to power supply in the rear window defroster relay circuit with the ignition switched ON (engine off or on).
B1C84:14	Rear window defroster relay circuit malfunction	Front body control module (FBCM) detects an open circuit or short to ground in the rear window defroster relay circuit with the ignition switched ON (engine off or on).
B1D06:11	Turn light (LH) circuit malfunction	Front body control module (FBCM) detects a short to ground in the turn light (LH) circuit with the ignition switched ON (engine off or on).
B1D06:13	Turn light (LH) circuit malfunction	Front body control module (FBCM) detects an open circuit or short to power supply in the turn light (LH) circuit with the ignition switched ON (engine off or on).
B1D07:11	Turn light (RH) circuit malfunction	Front body control module (FBCM) detects a short to ground in the turn light (RH) circuit with the ignition switched ON (engine off or on).
B1D07:13	Turn light (RH) circuit malfunction	Front body control module (FBCM) detects an open circuit or short to power supply in the turn light (RH) circuit with the ignition switched ON (engine off or on).
C1126:11	Parking/front side marker light circuit malfunction	Front body control module (FBCM) detects a short to ground in the parking/front side marker light circuit with the ignition switched ON (engine off or on).
U0001:88	Module communication error (HS-CAN)	Front body control module (FBCM) detects a CAN bus communication line (HS-CAN) malfunction 10 times continuously.
U0100:00	Communication error with PCM	Front body control module (FBCM) could not receive the CAN signal from the PCM for 5 s or more.
U0101:00	Communication error with TCM	Front body control module (FBCM) could not receive the CAN signal from the TCM for 5 s or more.
U0151:00	Communication error with SAS control module	Front body control module (FBCM) could not receive the CAN signal from the SAS control module for 5 s or more.
U0155:00	Communication error with instrument cluster	Front body control module (FBCM) could not receive the CAN signal from the instrument cluster for 5 s or more.
U0214:00	Communication error with start stop unit	Front body control module (FBCM) could not receive the CAN signal from the start stop unit for 5 s or more.
U0231:68	Communication error with auto light sensor/rain sensor	Front body control module (FBCM) could not receive the signals from the auto light sensor/rain sensor for 5 s or more with the ignition switched ON (engine off or on).
U023A:00	Communication error with forward sensing camera (FSC)	Front body control module (FBCM) could not receive the CAN signal from the forward sensing camera (FSC) for 5 s or more.
U0338:09	Error light switch signal received from start stop unit	Front body control module (FBCM) receives the CAN error signals from the start stop unit 3 times with the ignition switched ON (engine off or on).
U0401:68	Error signal received from PCM	Front body control module (FBCM) receives the error ECT sensor or ambient temperature sensor signals from the PCM for 5 s or more with the ignition switched ON (engine off or on).
U053B:68	Error signal received from forward sensing camera (FSC)	Front body control module (FBCM) receives the error signals from the forward sensing camera (FSC) for 5 s or more with the ignition switched ON (engine off or on).
U2005:68	Error vehicle speed signal received from PCM	Front body control module (FBCM) receives the vehicle speed signal error from the PCM for 5 s or more with the ignition switched ON (engine off or on).
U2100:00	Front body control module (FBCM) configuration error	Front body control module (FBCM) configuration error (no configuration) detected.
U2101:00	Front body control module (FBCM) configuration error	Front body control module (FBCM) configuration error detected.
U3000:49	Front body control module (FBCM) internal malfunction	Front body control module (FBCM) detects the internal malfunction.
U3000:56	Front body control module (FBCM) configuration error	Front body control module (FBCM) configuration error detected.
U3003:16	Front body control module (FBCM) power supply voltage (+B power supply) low input	Front body control module (FBCM) power supply circuit voltage of 8.8 V or less is detected for 10 s or more with the ignition switched ON (engine off or on).
U3003:17	Front body control module (FBCM) power supply voltage high input	Front body control module (FBCM) power supply circuit voltage of 14.2 V or more is detected for 10 s or more with the ignition switched ON (engine off or on).
U3006:62	Front body control module (FBCM) power supply voltage mismatch	Front body control module (FBCM) terminal 1A, 1B, 3K, and 3L voltages of 2 V or more lower than the voltage of terminal 2A are detected for 5 s or more with the ignition switched ON (engine off or on).

Snapshot data

The front body control module (FBCM) stores the following two types of snapshot data (vehicle information) when a DTC is detected and displays them in the Mazda Modular Diagnostic System (M-MDS).

Vehicle information detected by front body control module (FBCM)

Vehicle information detected by instrument cluster and received by front body control module (FBCM) via CAN signal

Snapshot data table—: Not applicable


Snapshot data item	Unit		Data contents	Data read/use method	Corresponding data monitor items
AAT	°C	°F	Ambient temperature	—	—
APP_STATUS	Accelerator Pedal Off/Under20%/Over20%/FAIL		Accelerator pedal position status	—	—
CFG_STATUS	Config Complete/Not Configured/Config Error		Instrument cluster configuration status	—	—
ECT_STATUS	Under 0 degrees C/0 - Under 80 degrees C/Over 80 degrees C/FAIL		Engine coolant temperature status	—	—
IC_VPWR	V		Instrument cluster power supply voltage	The front body control module (FBCM) constantly receives the power supply voltage value of the instrument cluster sent via CAN signal from the instrument cluster. If a DTC is detected, the front body control module (FBCM) records the power supply voltage of the instrument cluster when the DTC was detected, and it is displayed in the M-MDS.	VPWR
IG-ON_TIMER	hh:mm:ss		Elapsed time since ignition was switched ON (engine off or on) NOTE: The instrument cluster records the elapsed time since the ignition was switched ON (engine off or on).	The front body control module (FBCM) constantly receives the elapsed time since the ignition was switched ON (engine off or on) sent via CAN signal from the instrument cluster. If a DTC is detected, the front body control module (FBCM) records the elapsed time since the ignition was switched ON (engine off or on) when the DTC was detected, and it is displayed in the M-MDS.	—
PWR_MODE_KEY	Key Out/Key Recently Out (Position 0)/Accessory (Position 1)/Post Ignition (Position 2)/Ignition On (Position 2)/Running (Position 2)/Running - Starting		Key Out: Ignition switched off Key Recently Out (Position 0): Elapsed time within 3 s since ignition was switched off Accessory (Position 1): Ignition is switched to ACC Post Ignition (Position 2): Elapsed time within 3 s since ignition was switched ON (engine off or on) Ignition On (Position 2): Ignition switched ON (engine off) Running (Position 2): Ignition switched ON (engine on) Running - Starting: Cranking condition	The front body control module (FBCM) constantly receives the ignition switch status sent via CAN signal from the instrument cluster. If a DTC is detected, the front body control module (FBCM) records the ignition switch status when the DTC was detected, and it is displayed in the M-MDS.	—
RPM_STATUS	Engine Stop/Under1500rpm/Over1500rpm/FAIL		Engine speed status	The front body control module (FBCM) constantly receives the engine speed sent via CAN signal from the instrument cluster. If a DTC is detected, the front body control module (FBCM) records the engine speed when the DTC was detected, and it is displayed in the M-MDS.	TACHOMTR
SHIFT_STATUS	P/N/D/R/FAIL		Selector lever position status	The front body control module (FBCM) constantly receives the selector lever position sent via CAN signal from the instrument cluster. If a DTC is detected, the front body control module (FBCM) records the selector lever position when the DTC was detected, and it is displayed in the M-MDS.	—
TOTAL_DIST	km	Miles	Accumulated total traveled distance from completion of vehicle until front body control module (FBCM) detects DTC (Odometer value in instrument cluster)	The total traveled distance from which the front body control module (FBCM) detects DTCs to the present can be calculated by performing the following procedure. Verify the odometer value in the instrument cluster. Verify the snapshot data item TOTAL_DIST. Subtract 2 from 1.	—
TOTAL_TIME	hh:mm:ss		Accumulated total elapsed time since vehicle completion until front body control module (FBCM) detects a DTC NOTE: When the ROOM fuse is removed, and the ignition is switched off, the time is not included in the elapsed time.	The elapsed time from which the front body control module (FBCM) detects DTCs to the present can be calculated by performing the following procedure. Verify the instrument cluster PID item TOTAL_TIME. Verify the snapshot data item TOTAL_TIME. Subtract 2 from 1.	TOTAL_TIME
VPWR	V		Front body control module (FBCM) power supply voltage	—	VPWR_B
VSPD_STATUS	Stop/0-10km/h/Over10km/h/FAIL		Vehicle speed status	The front body control module (FBCM) constantly receives the vehicle speed sent via CAN signal from the instrument cluster. If a DTC is detected, the front body control module (FBCM) records the vehicle speed when the DTC was detected, and it is displayed in the M-MDS.	SPEEDOMTR

Data monitor function

With the PID/data monitor function, input/output signal monitor items set in the front body control module (FBCM) can be selected and read out in real-time.

PID/data monitor table

—: Not applicable


PID	Unit/Operation	Data contents	Data read/use method	Inspection item(s)
ABK_CS_BG^*1	Off/On	Off: Theft-deterrent system answer-back signal is not received. On: Theft-deterrent system answer-back signal is received.	—	Front body control module (FBCM) Rear body control module (RBCM) Start stop unit
ABK_CS_KEY	Off/On	Off: Keyless entry system answer-back signal is not received. On: Keyless entry system answer-back signal is received.	—	Front body control module (FBCM) Rear body control module (RBCM) Start stop unit
ABK_HD_CS_R	Off/On	NOTE: It is displayed, however, if an accessory part is installed, it cannot be used.	—	—
ABK_HN_CS_R	Off/On	NOTE: It is displayed, however, if an accessory part is installed, it cannot be used.	—	—
ABK_HN_KEY	Off/On	Off: Keyless entry system horn answer-back signal is not received. On: Keyless entry system horn answer-back signal is received.	—	Front body control module (FBCM) Rear body control module (RBCM) Start stop unit
BAT_TMP	°C, °F	Displays battery temperature	—	Battery
BG_ALARM_CS^*1	Off/On	Off: Hazard warning light flashing request siganal is not received On: Hazard warning light flashing request siganal is received	—	Front body control module (FBCM) Rear body control module (RBCM)
BLWR_MT_RY	Off/On	Off: Blower relay is off. On: Blower relay is on.	—	Blower relay
BRAKE_SW	Off/On	Off: Brake switch (No. 2 signal) is off. (Brake pedal is depressed.) On: Brake switch (No. 2 signal) is on. (Brake pedal is not depressed.)	—	Brake switch PCM TCM
BRK_F_L_SW	Normal/Low/Unknown	Normal: Brake fluid level is between MAX and MIN. Low: Brake fluid level is lower than MIN. Unknown: Brake fluid level is not determined.	—	Brake fluid level sensor
DCDC_CVT_ST	NOTE: Displays in the M-MDS but it does not operate.
DCDC_VLT_I	NOTE: Displays in the M-MDS but it does not operate.
DCDC_VLT_O	NOTE: Displays in the M-MDS but it does not operate.
DEFOG_F_CS	NOTE: Displays in the M-MDS but it does not operate.
DEFOG_R_CS	Off/On	Off: Rear window defroster control signal is not received. On: Rear window defroster control signal is received.	—	Front body control module (FBCM) Climate control unit
ENG_C_TMP	°C, °F	Displays engine coolant temperature	—	ECT sensor PCM
ESS_ST	NOTE: Displays in the M-MDS but it does not operate.
F_FOG_LMP^*2	Off/On	Off: Front fog light is turned off. On: Front fog light is turned on.	—	Front fog light
F_FOG_SW^*2	Off/On	Off: Front fog light switch F.FOG signal is not received. On: Front fog light switch F.FOG signal is received.	—	Front fog light switch Start stop unit
H/L	OFF/DRL/TNS/H/L_LOW/H/L_HI/	OFF: Headlight is turned off. DRL: DRL is turned on. TNS: TNS is turned on. H/L_LOW: Headlight (LO) is turned on. H/L_HI: Headlight (HI) is turned on.	—	Headlight relay (HI)/(LO) Parking light Taillight License plate light DRL
H/L_CLN_RY	NOTE: Displays in the M-MDS but it does not operate.
H/L_CS_RLS^*3	Off/TNS_On/TNS+H/L_On	Off: TNS and headlight on request signal is not received from auto light sensor. TNS_On: TNS on signal is received from auto light sensor. TNS+H/L_On: TNS and headlight LO on signal is received from auto light sensor.	—	Auto light sensor
H/L_HI	Off/On	Off: Headlight HI is turned off. On: Headlight HI is turned on.	—	Headlight HI
H/L_SW_HI	Off/On	Off: Light switch HI signal is not received. On: Light switch HI signal is received.	—	Light switch Start stop unit
H/L_SW_LOW1	Off/On	Displays dimmer switch position of light switch sent from start stop unit via CAN signal Off: Other than dimmer switch LO position of light switch is received On: Dimmer switch LO position of light switch is received	Verify if the monitor value switches when the dimmer switch of the light switch is switched between LO and HI positions. If the dimmer switch operation and monitor values do not match, inspect the start stop unit or CAN communication. NOTE: If PID items H/L_SW_LOW1 and H/L_SW_LOW2 do not match, the front body control module (FBCM) detects a DTC. Also, the headlight (low) may be constantly illuminated.	Light switch Start stop unit
H/L_SW_LOW2	Off/On	Displays dimmer switch position of light switch connected to front body control module (FBCM) terminal 2W Off: Other than dimmer switch LO position of light switch is received On: Dimmer switch LO position of light switch is received	Verify if the monitor value switches when the dimmer switch of the light switch is switched between LO and HI positions. If the dimmer switch operation and monitor values do not match, inspect the light switch or related wiring harness. NOTE: If PID items H/L_SW_LOW1 and H/L_SW_LOW2 do not match, the front body control module (FBCM) detects a DTC. Also, the headlight (low) may be constantly illuminated.	Light switch Start stop unit
H/L_SW_OFF	Off/On	Off: Light switch OFF signal is not received. On: Light switch OFF signal is received.	—	Light switch Start stop unit
H/L_SW_PASS	Off/On	Off: Light switch FLASH-TO-PASS signal is not received. On: Light switch FLASH-TO-PASS signal is received.	—	Light switch Start stop unit
H/L_SW_TNS	Off/On	Off: Light switch TNS signal is not received. On: Light switch TNS signal is received.	—	Light switch Start stop unit
H/L_TNS	Off/On	Off: TNS is turned off. On: TNS is turned on.	—	Parking light Taillight License plate light
HAZARD_LMP	Off/On	Off: Hazard light is turned off. On: Hazard light is turned on.	—	Front turn light Side turn light Rear turn light
HAZARD_SW	Off/On/Unknown	Off: Hazard warning switch is not pressed. On: Hazard warning switch is pressed. Unknown: Hazard warning switch on/off is not determined.	—	Hazard warning switch Start stop unit
HBC_CS^*4	Off/On/Invalid	Off: High beam control (HBC) system signal is not received. On: High beam control (HBC) system signal is received. Invalid: High beam control (HBC) system signal has error.	—	Forward sensing camera (FSC)
HBC_ST^*4	Off/On	Off: High beam control (HBC) system is not operated. On: High beam control (HBC) system is operated.	—	Forward sensing camera (FSC)
HEAT_CS_R	NOTE: Displays in the M-MDS but it does not operate.
IG_ST	Off/On	Off: IG1 is off. On: IG1 is on.	—	IG1 relay PCM Start stop unit
L_OFF_AUTO	Off/On	Off: TNS or headlight off control by auto light off system is not operated. On: TNS or headlight off control by auto light off system is operated.	—	Front body control module (FBCM) Auto light sensor
L_OFF_BS	NOTE: Displays in the M-MDS but it does not operate.
OIL_P_SW	NOTE: Displays in the M-MDS but it does not operate.
OUT_CAR_TMP	°C, °F	Displays ambient temperature	—	Ambient temperature sensor PCM
P_BRAKE_SW	Off/On	Off: Parking brake switch is off. (Parking brake lever is not pulled.) On: Parking brake switch is on. (Parking brake lever is pulled.)	—	Parking brake switch Instrument cluster
PNC_CS	Off/On	Off: Panic control signal is not received. On: Panic control signal is received.	—	Front body control module (FBCM) Rear body control module (RBCM)
PNC_HD_CS_R	Off/On	NOTE: It is displayed, however, if an accessory part is installed, it cannot be used.	—	—
PNC_HN_CS_R	Off/On	NOTE: It is displayed, however, if an accessory part is installed, it cannot be used.	—	—
PTC_HEAT_CS	NOTE: Displays in the M-MDS but it does not operate.
R_FOG_LMP	NOTE: Displays in the M-MDS but it does not operate.
R_FOG_SW	NOTE: Displays in the M-MDS but it does not operate.
RES_CS	Off/On	NOTE: It is displayed, however, if an accessory part is installed, it cannot be used.	—	—
RLS_FLT^*3	O.K./FAULT	OK: Rain sensor is normal. FAULT: Rain sensor has a malfunction.	—	Rain sensor
S_HT_CUT^*5	No_Request/Cut	No_Request: Except below Cut: Seat warmer is turned off or lowered.	—	Front body control module (FBCM)
SHIFT_L_POS^*6	Between/P/R/N/D/S(2)/L(1)	Between: Selector lever is between two positions. P: Selector lever is in P position. R: Selector lever is in R position. N: Selector lever is in N position. D: Selector lever is in D position. S(2): Selector lever is in D position 2nd gear. L(1): Selector lever is in D position 1st gear.	—	TCM
TURN_L_L	Off/On	Off: Turn light (LH) is turned off. On: Turn light (LH) is turned on.	—	Front turn light Side turn light Rear turn light
TURN_L_R	Off/On	Off: Turn light (RH) is turned off. On: Turn light (RH) is turned on.	—	Front turn light Side turn light Rear turn light
TURN_SW	Off/Turn_R_On/Turn_L_On/Unknown	Off: Turn switch is in OFF position. Turn_R_On: Turn switch is in RH position. Turn_L_On: Turn switch is in LH position. Unknown: Turn switch position is not determined.	—	Turn Switch Start stop unit
VPWR_B	V	Displays front body control module (FBCM) power supply voltage	—	Front body control module (FBCM)
VSPD	KPH, MPH	Displays vehicle speed	—	PCM
WAS_FLUID_L	Normal/Low/Unknown	Normal: Washer fluid level is normal. Low: Washer fluid level is low. Unknown: Washer fluid level is not determined.	—	Washer fluid-level sensor
WAS_MT_RY_F	Off/On	Off: Windshield washer motor relay is off. On: Windshield washer motor relay is on.	—	Front body control module (FBCM)
WAS_MT_RY_R	NOTE: Displays in the M-MDS but it does not operate.
WASHER_F	Off/On	Off: Windshield washer switch is off. On: Windshield washer switch is on.	—	Windshield washer switch Start stop unit
WASHER_R	NOTE: Displays in the M-MDS but it does not operate.
WIP_CS_RLS^*3	Off/Single_Wipe/F_Wiper_LOW/F_Wiper_HI/Failure	Off: Wiper operation signal is not received from rain sensor. Single_Wipe: Signal to operate wiper once is received from rain sensor. F_Wiper_LOW: Signal to operate wiper at low speed is received from rain sensor. F_Wiper_HI: Signal to operate wiper at high speed is received from rain sensor. Failure: Communication with rain sensor is failed.	—	Rain sensor
WIP_F	OFF/LOW/HI/INT / AUTO	OFF: Windshield wiper switch is in OFF position. LOW: Windshield wiper switch is in LO position. HI: Windshield wiper switch is in HI position. INT / AUTO: Windshield wiper switch is in INT or AUTO position.	—	Windshield wiper switch Start stop unit
WIP_F_INT_L	%	Displays windshield wiper INT level signal value received	—	Windshield wiper switch Start stop unit
WIP_F_LOW	Off/On	Off: Windshield wiper switch is not in LO position. On: Windshield wiper switch is in LO position.	—	Windshield wiper switch Start stop unit
WIP_F_MST	Stop/Move	Stop: Autostop switch is on. Move: Autostop switch is off.	—	Windshield wiper motor
WIP_F_RY_HI	Off/On	Off: Windshield wiper HI relay is off. On: Windshield wiper HI relay is on.	—	Front body control module (FBCM)
WIP_F_RY_LO	Off/On	Off: Windshield wiper LO relay is off. On: Windshield wiper LO relay is on.	—	Front body control module (FBCM)
WIP_R	NOTE: Displays in the M-MDS but it does not operate.
WIP_R_RY	NOTE: Displays in the M-MDS but it does not operate.

^*1: With theft-deterrent system
^*2: With front fog light
^*3: With auto light sensor/rain sensor
^*4: With high beam control (HBC) system
^*5: With seat warmer
^*6: ATX

Active Command Modes Function

The output parts set in the front body control module (FBCM) can be operated regardless of the FBCM control condition.

Items which can be operated are as follows:


Simulation item	Unit/Operation	Data contents	Output part name
DEFOG_F_ST	NOTE: Displays in the M-MDS but it does not operate.
DEFOG_R_ST	Off/On	Off: Stops rear window defroster. On: Operates rear window defroster.	Filament
ESS_ST	NOTE: Displays in the M-MDS but it does not operate.
F_FOG_LMP^*1	Off/On	Off: Turns off front fog light. On: Illuminates front fog light.	Front fog light
H/L	OFF/DRL/TNS/H/L_LOW/H/L_HI	Off: Turns off headlight. DRL: Illuminates DRL. TNS: Illuminates TNS. H/L_LOW: Illuminates headlight LO. H/L_HI: Illuminates headlight HI.	Headlight LO/HI Parking light Taillight License plate light DRL
H/L_CLN_RY	NOTE: Displays in the M-MDS but it does not operate.
HAZARD_LMP	Off/On	Off: Turns off hazard warning light. On: Flashes hazard warning light.	Front turn light Side turn light Rear turn light
PTC_HEAT_ST	NOTE: Displays in the M-MDS but it does not operate.
WAS_MT_RY_F	Off/On	Off: Turns front washer motor relay off. On: Turns front washer motor relay on.	Front body control module (FBCM)
WAS_MT_RY_R	NOTE: Displays in the M-MDS but it does not operate.

^*1: With front fog light

< Previous Next >
