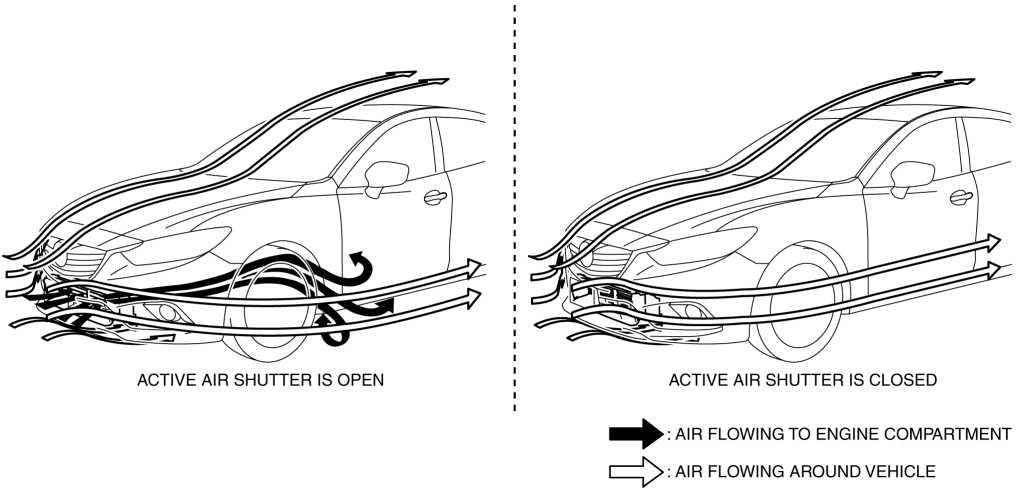

The active air shutter system reduces turbulent air*1 occurring around the vehicle and reduces air resistance by the PCM closing the active air shutter behind the front bumper mesh while the vehicle is being driven to control the air flowing into the engine compartment. In addition, by closing the shutter and blocking the air flow while the vehicle is driven during cold temperatures, the engine warms up more efficiently. By reducing the air resistance and improving the engine warm-up efficiency, the fuel economy has been improved.

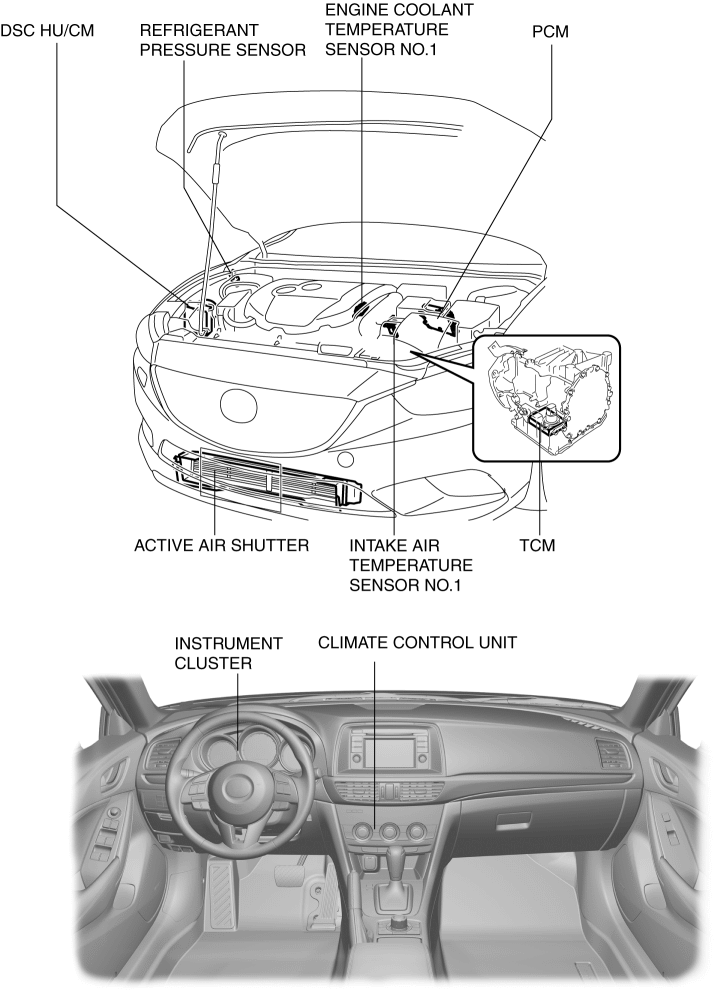

| Component parts | Function |
| PCM | The PCM controls the actuator of the active air shutter according to the driving and engine conditions. |
| Active air shutter | The active air shutter opens/closes the shutter according to the request signal from the PCM. |
| DSC HU/CM | The DSC HU/CM sends the vehicle speed signal to the PCM. |
| TCM | The TCM sends the cooling fan operation request signal to the PCM. |
| Climate control unit | The climate control unit sends the A/C operation signal to the PCM. |
| Intake air temperature sensor No.1 | Intake air temperature sensor No.1 detects the intake air temperature before it passes through the throttle body. |
| Engine coolant temperature sensor No.1 | Engine coolant temperature sensor No.1 detects the engine coolant temperature. |
| Refrigerant pressure sensor | The refrigerant pressure sensor detects the refrigerant pressure. |
| Instrument cluster | When a system malfunction occurs, the instrument cluster turns the master warning light on and displays the warning message in the LCD. |
For the active air shutter system control, refer to ACTIVE AIR SHUTTER SYSTEM CONTROL. (See ACTIVE AIR SHUTTER CONTROL.)
For details on the active air shutter, refer to ACTIVE AIR SHUTTER. (See ACTIVE AIR SHUTTER.)
