INSTRUMENT CLUSTER OPERATION RECORD

Purpose

• The instrument cluster operation record stores the record of the illumination or flashing of the warning light.

Function

• The operation record is stored by the instrument cluster and displayed using the Mazda Modular Diagnostic System (M-MDS).

• The instrument cluster stores the following when any of the warning lights illuminates or flashes.

• Time and date

• Control module which sent warning light illumination/flash request

• Battery voltage

Construction

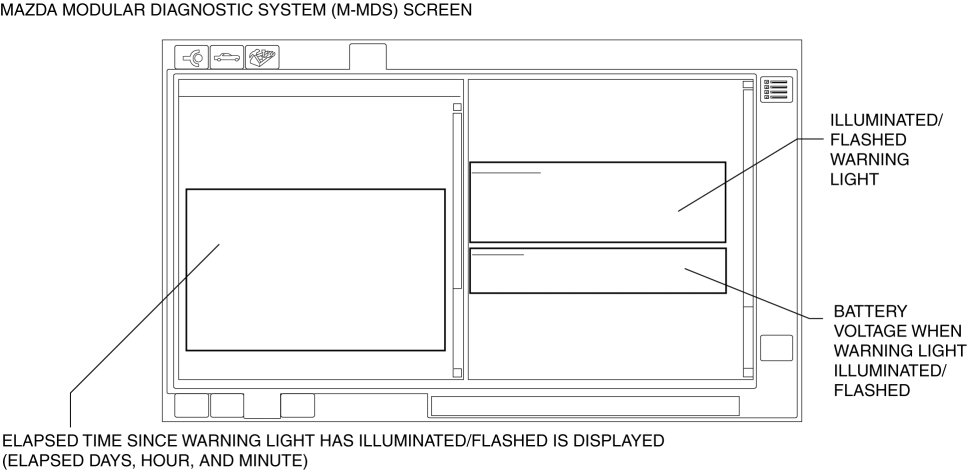

• Based on the stored record, the instrument cluster displays the following operation record on the M-MDS screen.



Operation

• When the instrument cluster receives a CAN signal or a warning light illumination/flash request signal sent from each switch, it controls the warning light to illuminate/flash and stores the operation record at the same time.

Fail-safe

• Function not equipped.
