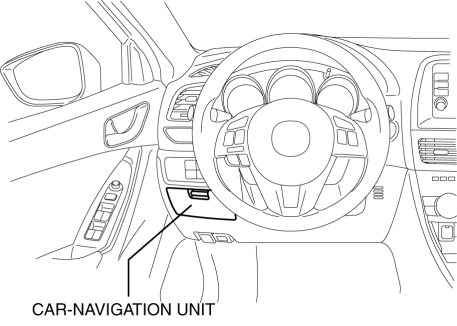

The car-navigation unit is installed to the driver-side lower panel.
-
The panel is integrated with the unit.
Reads the SD card data inserted into the car-navigation unit and sends the read data to the audio unit.
The car-navigation unit has the following functions:
By connecting the SD card to your computer at home, the map data or software can be updated by the user.
The car-navigation unit is installed to the driver-side lower panel.
The panel is integrated with the unit.
| Terminal | Signal |
|
|
| 1A | Ground |
| 1B | Ground |
|
| 1C | Ground |
|
| 1D | Ground |
|
| 1E | — |
|
| 1F | — |
|
| 1G | ACC |
|
| 1H | B+ |
|
|
| 2A | USB power supply |
| 2B | USB data (+) |
|
| 2C | USB ground |
|
| 2D | USB data (+) |
|
| Terminal | Signal |
|
|
| 3A | RDS-TMC |
| 3B | GPS |
|
For the car-navigation unit operation, refer to the CAR-NAVIGATION SYSTEM.
