CAUTION:
The parking assist system is a supplementary system which displays the conditions at the rear of the vehicle when reversing. Always directly confirm the safety of the surrounding area visually when reversing.

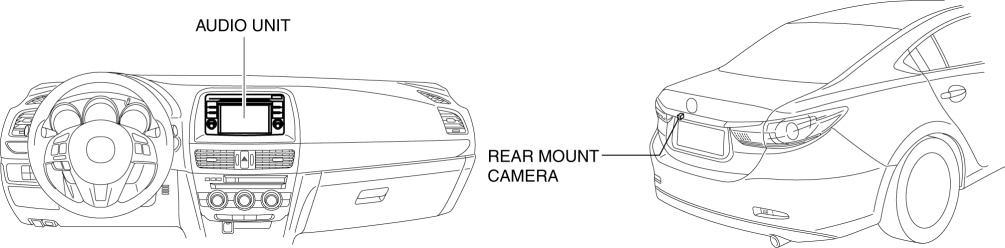

When the vehicle is reversing, the rear mount monitor camera installed to the trunk lid displays the images at the rear of the vehicle in the audio unit display for verification of the presence of pedestrians and obstructions at the rear of the vehicle.

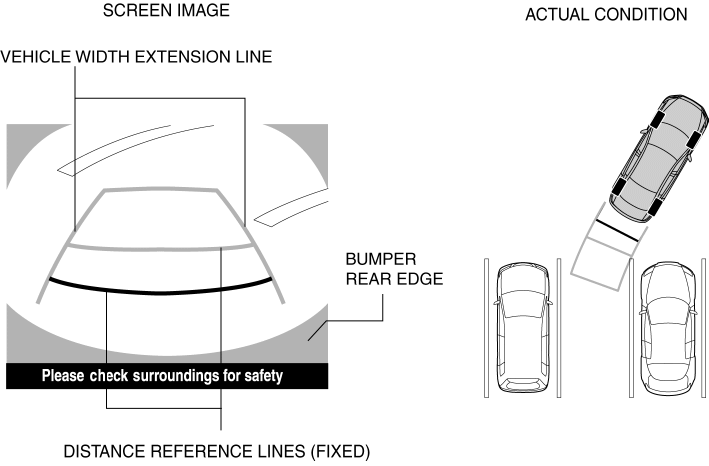

The images at the rear of the vehicle taken by rear mount monitor camera and the guidelines are displayed in the audio unit display.
NOTE:

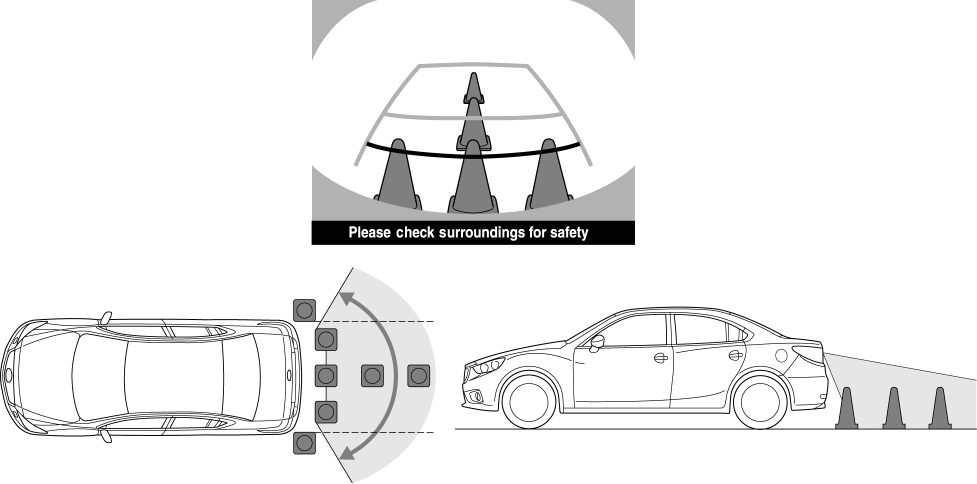

The image range may differ depending on the road surface conditions and the vehicle conditions. In addition, images near both sides of the rear bumper and below the rear bumper cannot be obtained.
| Display item | Display line color | Function |
| Distance reference lines (fixed) | Red |
|
| Yellow |
|
|
| Yellow |
|
|
| Vehicle width extension line | Yellow |
|
CAUTION:
Images displayed by the rear mount monitor camera differ depending on the actual conditions resulting from road surface conditions, the number of passengers, and cargo load, and even though it may appear that the vehicle will not come into contact with an object as seen in the image, it may actually come into contact with it. When reversing the vehicle, always verify the surroundings visually.

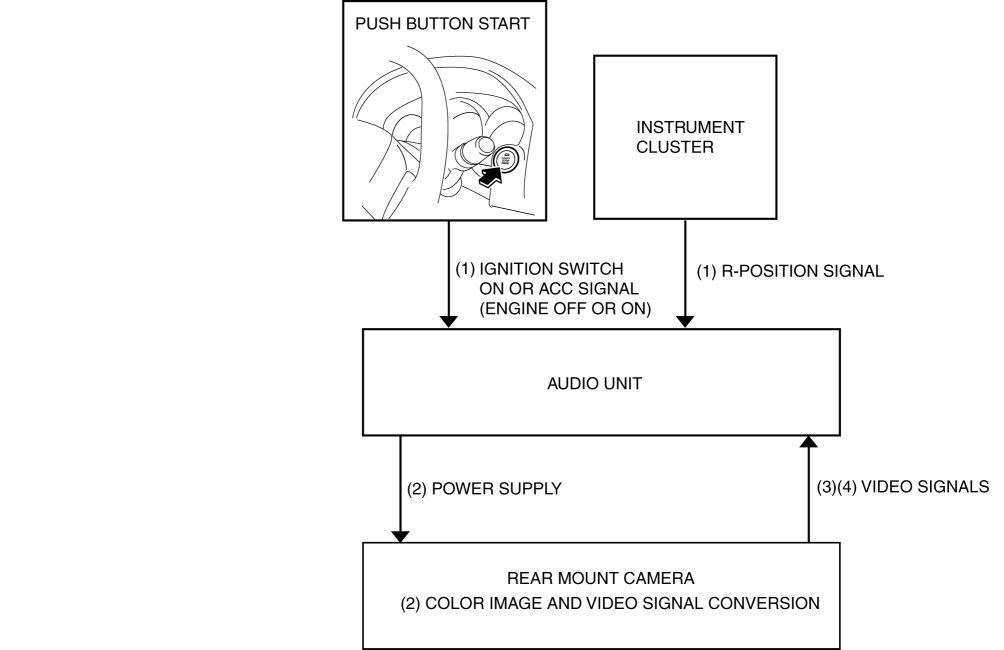

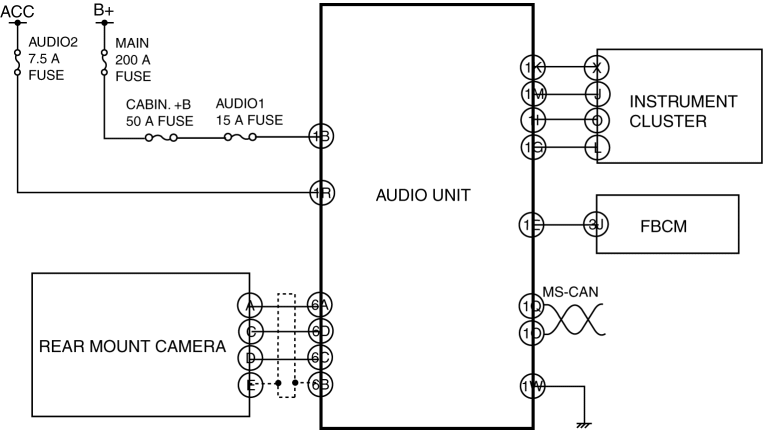

When the ignition is switched to ACC or ON (engine off or on) and the shift lever is shifted to the R position, power is supplied to the rear mount camera from the audio unit.
The rear mount camera produces color images of the conditions at the rear of the vehicle when power is supplied, and converts them to an image signal.
The rear mount camera combines the fixed lines with the video signal and outputs it to the audio unit.
NOTE:
It may be difficult to see the display under the following conditions; however, it does not indicate a malfunction:
When the temperature around the lens is high/low.
When the camera is wet such as on a rainy day or during period of high humidity.
When foreign material such as mud is stuck around the camera.
When the camera lens reflects sunlight or headlight beams.
