POWER OUTER MIRROR

Outline

• The power outer mirror adjusts the outer mirror glass position up/down and left/right using the up/down adjustment motor and, left/right adjustment motor.

• The up/down adjustment motor and, left/right adjustment motor turns clockwise (down/right direction) or counterclockwise (up/left direction).

Function

Up/down adjustment

• When the up/down adjustment motor operates, the power outer mirror operates in the up/down directions.

Left/right adjustment

• When the left/right adjustment motor operates, the power outer mirror operates in the left/right directions.

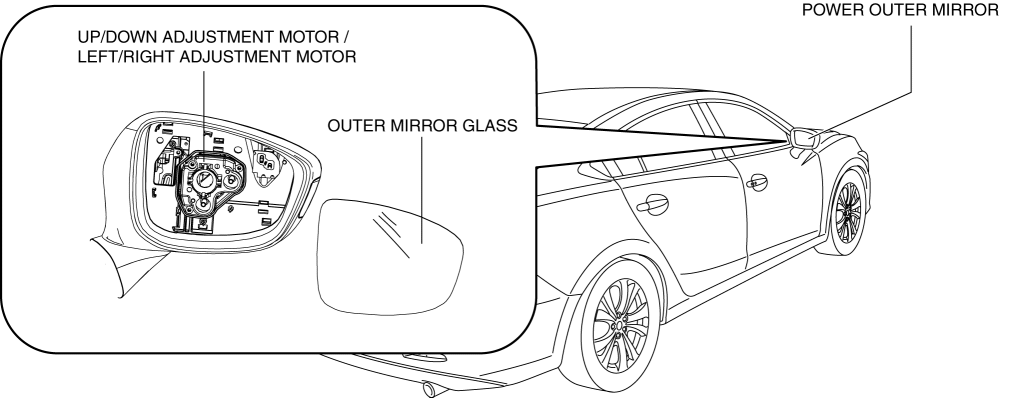

Construction

• The up/down adjustment motor and left/right adjustment motor are equipped in the power outer mirror.

Operation

Up/down adjustment motor (Example: power outer mirror is operated upward)

1. The up/down adjustment motor receives an up signal from the power outer mirror switch, and when the up switch is turned on, it rotates counterclockwise.

Left/right adjustment motor (Example: power outer mirror is operated in left direction)

1. The left/right adjustment motor receives a left signal from the power outer mirror switch, and when the left switch is turned on, it rotates counterclockwise.

Fail-safe

• Function not equipped.
