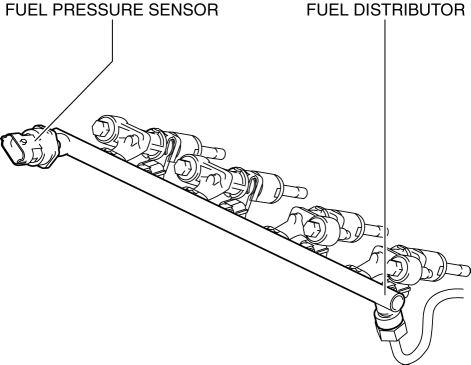

Installed on the fuel distributor.
-
A metal diaphragm thin film distortion gauge has been adopted as the detecting element for detecting the fuel pressure.
Detects the fuel pressure in the fuel distributor as basic information for mainly determining the fuel injection amount.

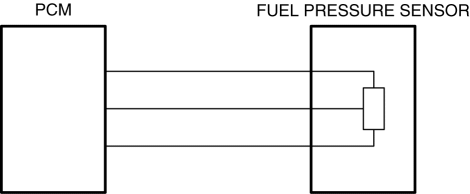

Detects the fuel pressure in the fuel distributor and sends it to the PCM as a fuel pressure signal.
Installed on the fuel distributor.
A metal diaphragm thin film distortion gauge has been adopted as the detecting element for detecting the fuel pressure.
Sends the signal, which fluctuates according to the fuel pressure, to the PCM.

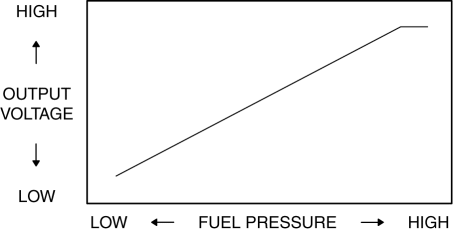

Fuel pressure sensor characteristic
| DTC No. | Fail-safe function |
| P0191:00 |
|
| P0192:00 |
|
| P0193:00 |
|
