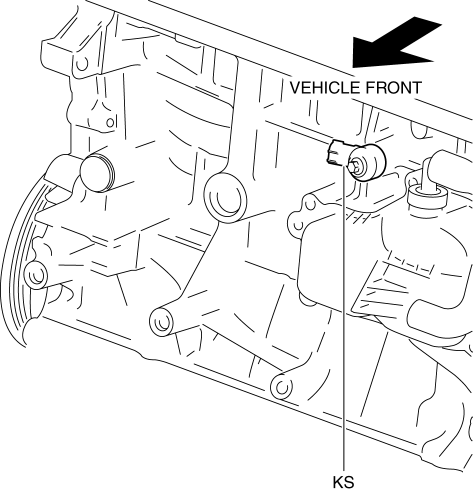

Installed on the cylinder block.
-
A piezoelectric element has been adopted as the detecting element for detecting abnormal combustion.
Detects abnormal combustion in the cylinder as basic information for mainly determining the ignition timing.
Detects abnormal combustion in the combustion chamber and sends it to the PCM as a knocking signal.
Installed on the cylinder block.
A piezoelectric element has been adopted as the detecting element for detecting abnormal combustion.

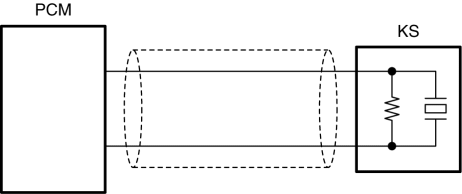

Sends the signal, which fluctuates according to abnormal combustion, to the PCM.

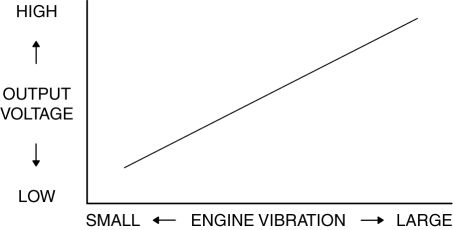

KS characteristic
| DTC No. | Fail-safe function |
| P0327:00 |
|
| P0328:00 |
|
