BAROMETRIC PRESSURE (BARO) SENSOR [SKYACTIV-G 2.5]

< Previous Next >

2014 - Mazda6 - Engine

Detects the BARO as basic information for mainly determining the fuel injection amount.

Detects the BARO and sends it to the PCM as a BARO signal.

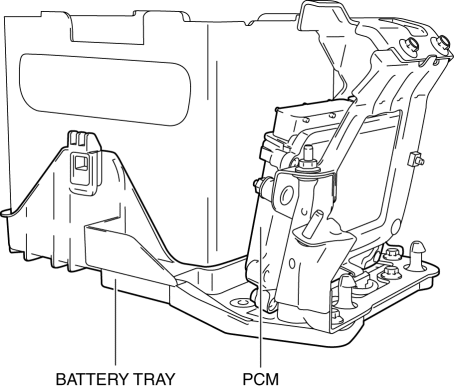

Built into the PCM.

A piezoelectric element has been adopted for detecting the BARO.

Sends the signal, which fluctuates according to the BARO, to the PCM.

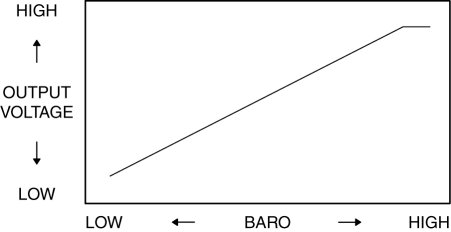

BARO sensor characteristic


DTC No.	Fail-safe function
P2228:00	Fixes the barometric pressure for the engine control at 101.32 kPa {1.0332 kgf/cm², 14.695 psi}.
P2229:00	Fixes the barometric pressure for the engine control at 101.32 kPa {1.0332 kgf/cm², 14.695 psi}.
