2014 - Mazda6 - Engine

CURRENT SENSOR [SKYACTIV-G 2.5]

Purpose/Function

• The battery conditions are monitored as basic information for determining the generator output current.

• The battery condition is input to the PCM by LIN communication.

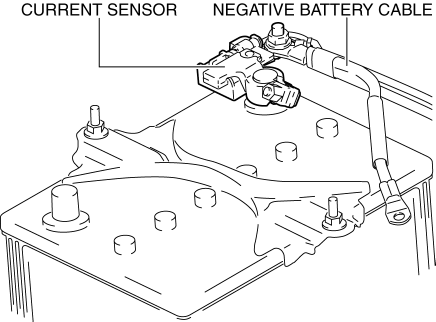

Construction

• Installed to the negative battery cable.



• The current sensor has adopted shunt resistance on the detection area and a thermistor for detecting the battery condition.

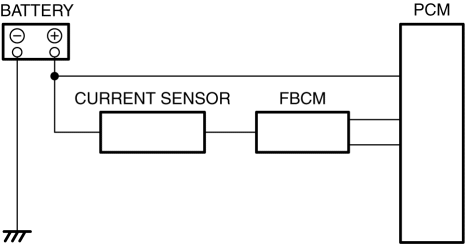

Operation

• The battery charge/discharge flow, battery voltage, and the battery terminal temperature are input to the PCM by LIN communication.



Fail-safe
