1. Turn the steering wheel to full right lock.
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)
3. Partially peel back the mudguard (LH). (See MUDGUARD REMOVAL/INSTALLATION.)

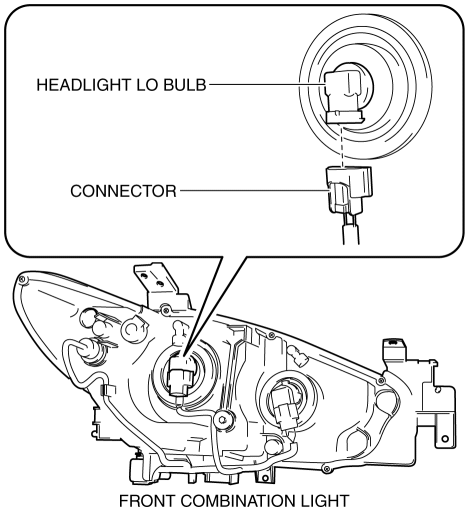

4. Disconnect the connector.
5. Rotate the headlight LO bulb in the direction of the arrow (1) shown in the figure to remove it in the direction of the arrow (2) shown in the figure.
CAUTION:
A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.
6. Install in the reverse order of removal.
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)

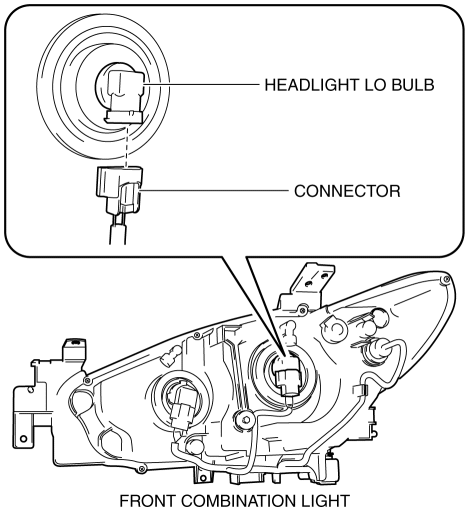

2. Disconnect the connector.
3. Rotate the headlight LO bulb in the direction of the arrow (1) shown in the figure to remove it in the direction of the arrow (2) shown in the figure.
CAUTION:
A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.
4. Install in the reverse order of removal.
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)
2. Remove the air cleaner cover. (Headlight HI bulb (LH)) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
3. Remove the washer tank bracket. (Headlight HI bulb (RH)) (See WASHER TANK REMOVAL/INSTALLATION.)

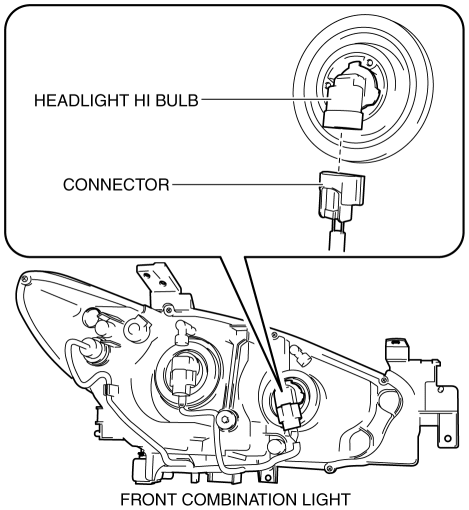

4. Disconnect the connector.
5. Rotate the headlight HI bulb in the direction of the arrow (1) shown in the figure and remove it in the direction of the arrow (2) shown in the figure.
CAUTION:
A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.
6. Install in the reverse order of removal.
WARNING:
Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS.)
1. Remove the discharge headlight control module. (See DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION.)

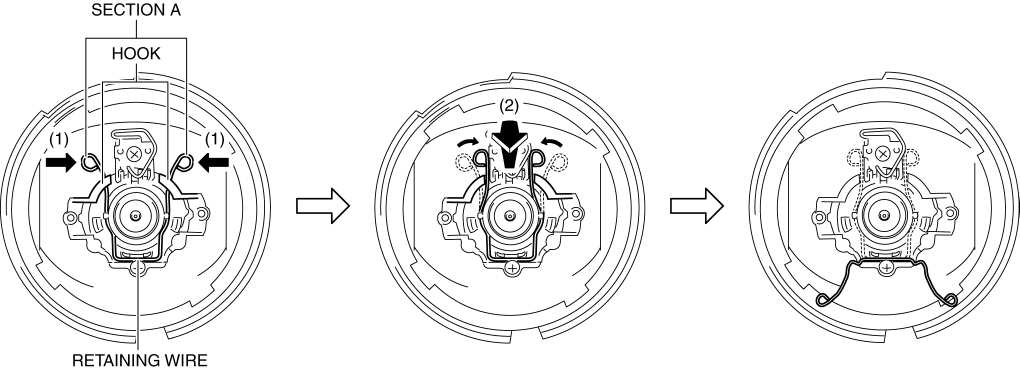

2. Move section A of the bulb retaining wire in the direction of the arrow (1) shown in the figure, pull it in the direction of the arrow (2) shown in the figure, and detach the bulb retaining wire and hook.
3. Remove the headlight HI/LO bulb.
CAUTION:
A discharge headlight bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.
4. Install in the reverse order of removal.
