2014 - Mazda6 - Body and Accessories

DIAGNOSTIC ASSIST FUNCTION [AUDIO]

Audio unit (with color LCD)

Activation procedure
1. Switch the ignition to ACC or ON (engine off).
2. Press the POWER/VOLUME button to turn the audio on.

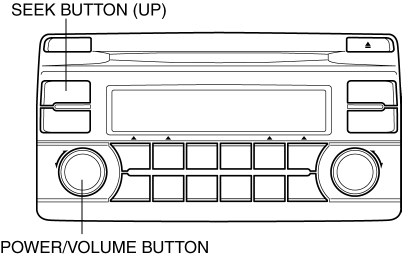

3. Press the POWER/VOLUME button and SEEK button (up) simultaneously to launch the diagnostic assist function.

4. Verify that the launched diagnostic assist function is displayed on the screen.

5. Input each diagnostic assist code using the diagnostic assist screen. (See Diagnostic assist code list.)

Diagnostic assist screen



No.

Name

Content/function

1

Diagnostic assist code display screen

Displays the diagnostic assist code.

2

Diagnostic assist code input button

Inputs the diagnostic assist code.

3

DEL button

Clears the diagnostic assist code.

4

Diagnostic content display screen

Displays the diagnostic content.

5

Diagnostic results display screen

Displays the diagnostic results.

6

ENTER switch

Transfers to the diagnostic assist function.


Diagnostic assist code list


Diagnostic assist code

Content/function

01

Diagnostic assist code "01" display inspection

02

Diagnostic assist code "02" switch inspection

03

Diagnostic assist code "03"speaker inspection

04

Diagnostic assist code "04"radio reception condition inspection

05

Diagnostic assist code "05" antenna control output condition inspection

06

Diagnostic assist code "06" manufacturer verification

07

Diagnostic assist code "07"audio amplifier specification verification

09

Diagnostic assist code "09" radio SEEK inspection

11

Diagnostic assist code "11" CD diagnostic inspection

14

Diagnostic assist code "14" dial inspection verification

15

Diagnostic assist code "15" vehicle NAVI signal verification

16

Diagnostic assist code "16" exterior device connection information clearing


Diagnostic assist code "01" display inspection
1. Launch the diagnostic assist function. (See Activation procedure.)
2. Input the diagnostic assist code "01"using the diagnostic input screen.
3. Select "ENTER".
4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched display inspection mode is displayed on the screen.

  • Verify the display.

Red→Green→Blue→White→

Black→Color bar→Gray bar

Display functions normally.

Display is normal.

Display does not function normally.

If the display does not display/operate normally, replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


5. Press the POWER/VOLUME button and return to the diagnostic assist screen.
6. Press the POWER/VOLUME button and end the diagnostic assist function.
Diagnostic assist code "02" switch inspection
1. Launch the diagnostic assist function. (See Activation procedure.)
2. Input the diagnostic assist code "02"using the diagnostic input screen.
3. Select "ENTER".
4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched switch inspection mode is displayed on the screen.

  • Operate all of the switches (press).

  • Does the buzzer sound?

Check SW

Yes

The switch is normal.

No

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


5. Press the POWER/VOLUME button and return to the diagnostic assist screen.
6. Press the POWER/VOLUME button and end the diagnostic assist function.
Diagnostic assist code "03"speaker inspection
1. Launch the diagnostic assist function. (See Activation procedure.)
2. Input the diagnostic assist code "03"using the diagnostic input screen.
3. Select "ENTER".
4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched speaker inspection mode is displayed on the screen.

  • Does each speaker output sound in the following order?:

    1. Without Bose®
    2. Front door speaker (LH) and tweeter (LH)

    3. Front door speaker (RH) and tweeter (RH)

    4. Rear door speaker (RH)

    5. Rear door speaker (LH)

      With Bose®
    1. Front door speaker (LH) and tweeter (LH)/front side speaker (LH)

    2. Front door speaker (RH) and tweeter (RH)/front side speaker (RH)

    3. Rear door speaker (RH) and rear speaker (RH)

    4. Rear door speaker (LH) and rear speaker (LH)

Check Speaker

Yes

The speakers and the wiring harness between the audio unit/audio amplifier and speakers are normal.

No


5. Press the POWER/VOLUME button and return to the diagnostic assist screen.
6. Press the POWER/VOLUME button and end the diagnostic assist function.
Diagnostic assist code "04"radio reception condition inspection
1. Launch the diagnostic assist function. (See Activation procedure.)
2. Input the diagnostic assist code "04"using the diagnostic input screen.
3. Select "ENTER".
4. Inspect according to the following table:

CAUTION:



Inspection

Display

Action

Verify that the launched radio reception condition inspection mode is displayed on the screen.

LEVEL-10 879—LEVEL-5 879

Glass antenna, audio amplifier, antenna feeder and audio unit are normal.

LEVEL-4 879—LEVEL-3 879

Change frequencies and re-perform the inspection.

LEVEL-2 879—LEVEL-0 879

Inspect the glass antenna, antenna amplifier and antenna feeder.

(See GLASS ANTENNA INSPECTION.)

(See ANTENNA AMPLIFIER INSPECTION.)

(See ANTENNA FEEDER NO.1 INSPECTION.)

(See ANTENNA FEEDER NO.2 INSPECTION.)


5. Press the POWER/VOLUME button and return to the diagnostic assist screen.
6. Press the POWER/VOLUME button and end the diagnostic assist function.
Diagnostic assist code "05" antenna control output condition inspection
1. Launch the diagnostic assist function. (See Activation procedure.)
2. Input the diagnostic assist code "05"using the diagnostic input screen.
3. Select "ENTER".
4. Inspect according to the following table:

CAUTION:



Inspection

Display

Action

Verify that the launched antenna control output condition inspection mode is displayed on the screen.

ANT-ON

Good sound quality

System is normal.

Bad sound quality

Inspect the glass antenna, antenna amplifier and antenna feeder.

(See GLASS ANTENNA INSPECTION.)

(See ANTENNA AMPLIFIER INSPECTION.)

(See ANTENNA FEEDER NO.1 INSPECTION.)

(See ANTENNA FEEDER NO.2 INSPECTION.)

ANT-OFF

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


5. Press the POWER/VOLUME button and return to the diagnostic assist screen.
6. Press the POWER/VOLUME button and end the diagnostic assist function.
Diagnostic assist code "06" manufacturer verification
1. Refer to the manufacturer verification procedure. (See SUPPLIER IDENTIFICATION PROCEDURE [AUDIO].)
Diagnostic assist code "07"audio amplifier specification verification
1. Launch the diagnostic assist function. (See Activation procedure.)
2. Input the diagnostic assist code "07"using the diagnostic input screen.
3. Select "ENTER".
4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched audio amplifier specification inspection mode is displayed on the screen.

  • Verify the audio amplifier specifications.

  • Are the audio amplifier specifications correct?

    Without Bose®
  • N

    With Bose®
  • L

Yes

System is normal.

No

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


5. Press the POWER/VOLUME button and return to the diagnostic assist screen.
6. Press the POWER/VOLUME button and end the diagnostic assist function.
Diagnostic assist code "09" radio SEEK inspection
1. Tune in the radio.
2. Launch the diagnostic assist function. (See Activation procedure.)
3. Input the diagnostic assist code "09"using the diagnostic input screen.
4. Select "ENTER".
5. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched radio SEEK inspection mode is displayed on the screen.

  • Verify “ANY-CONT ON” is displayed and select “OK”.

  • Verify “MOV SIG AREA” is displayed and select “OK”.

  • “Now SEEKING” is displayed.

  • Is the inspection result normal?

--ch

RECEIVED

Yes

System is normal.

No

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


6. Press the POWER/VOLUME button and return to the diagnostic assist screen.
7. Press the POWER/VOLUME button and end the diagnostic assist function.
Diagnostic assist code "11" CD diagnostic inspection
1. Verify that a CD is not inserted.
2. Launch the diagnostic assist function. (See Activation procedure.)
3. Input the diagnostic assist code "11"using the diagnostic input screen.
4. Select "ENTER".
5. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched CD diagnostic inspection mode is displayed on the screen.

  • Verify “INSERT NEW DISC” is displayed and insert a disc.

  • “NOW CHECKING USER DISC DEFECT” is displayed.

  • Verify the inspection results.

OK/DISC DEFECT

Yes

System is normal.

MALFUNCTION

No

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


6. Press the POWER/VOLUME button and return to the diagnostic assist screen.
7. Press the POWER/VOLUME button and end the diagnostic assist function.
Diagnostic assist code "14" dial inspection verification
1. Launch the diagnostic assist function. (See Activation procedure.)
2. Input the diagnostic assist code "14"using the diagnostic input screen.
3. Select "ENTER".
4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the dial inspection screen is displayed.

  • Rotate the dial switch.

  • Does the switch rotation direction correspond to the direction displayed in the diagnostic assist screen?

VOL ENC ←→

TUNE ENC ←→

COMMANDAR ENC ←→

Yes

System is normal.

No

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


5. Press the POWER/VOLUME button and return to the diagnostic assist screen.
6. Press the POWER/VOLUME button and end the diagnostic assist function.
Diagnostic assist code "15" vehicle NAVI signal verification
1. Launch the diagnostic assist function. (See Activation procedure.)
2. Input the diagnostic assist code "15"using the diagnostic input screen.
3. Select "ENTER".
4. Verify that the vehicle NAVI signal verification screen is displayed.

5. Verify the vehicle NAVI signal status displayed in the display.


Name

Content/function

TNS

Displays the TNS signal status.

REV

Displays the reverse signal status.

PKB

Displays the parking brake signal status.

SPEED

Vehicle speed is displayed.

ST-SW

Displays the steering switch connection status.

COMMANDER

Displays the commander switch connection status.

MIC

Verifies the microphone connection status.

NAVI (USB)

Verifies the NAVI (USB) connection status.

NAVI GPS ANT

Verifies the GPS antenna connection status.


6. Press the POWER/VOLUME button and return to the diagnostic assist screen.
7. Press the POWER/VOLUME button and end the diagnostic assist function.
Diagnostic assist code "16" exterior device connection information clearing

NOTE:

1. Launch the diagnostic assist function. (See Activation procedure.)
2. Input the diagnostic assist code "16"using the diagnostic input screen.
3. Select "ENTER".
4. Verify that the exterior device connection information clearing screen is displayed.
5. Perform the exterior device connection information clearing according to the screen display.
6. Press the POWER/VOLUME button and return to the diagnostic assist screen.
7. Press the POWER/VOLUME button and end the diagnostic assist function.

Audio unit (without color LCD)

Display inspection
1. Switch the ignition to ACC or ON (engine off).
2. Press the POWER/VOLUME button to turn the audio on.
3. Press the SEEK button (up) for 0.2 s or more while simultaneously pressing the POWER/VOLUME button to launch the display inspection mode.

4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched display inspection mode is displayed on the screen.

  • Are the characters displayed normally in the display (no truncation or faintness)?

Yes

Display is normal.

No

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


5. Switch the audio power supply off or switch the ignition off (LOCK) to complete the switch inspection mode.
Switch Inspection
1. Switch the ignition to ACC or ON (engine off).
2. Press the POWER/VOLUME button to turn the audio on.
3. Press PRESET button 3 for 0.2 s or more while simultaneously pressing the POWER/VOLUME button to launch the switch inspection mode.

4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched switch inspection mode is displayed on the screen.

  • Operate all of the switches (press).

  • Does the buzzer sound?

Yes

The switch is normal.

No

Verify the switch.

(See CONFIRMATION STEP 1: AUDIO PANEL SWITCH CONFIRMATION [ENTIRE AUDIO SYSTEM].)


5. Switch the audio power supply off or switch the ignition off (LOCK) to complete the switch inspection mode.
Speaker Inspection
1. Switch the ignition to ACC or ON (engine off).
2. Press the POWER/VOLUME button to turn the audio on.
3. Press the AUTO-M button for 0.2 s or more while simultaneously pressing the POWER/VOLUME button to launch the speaker inspection mode.

NOTE:

4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched speaker inspection mode is displayed on the screen.

  • Does each speaker output sound in the following order?:

    1. Front door speaker (LH) and tweeter (LH)

    2. Front door speaker (RH) and tweeter (RH)

    3. Rear door speaker (RH)

    4. Rear door speaker (LH)

Yes

The speakers and the wiring harness between the audio unit and speakers are normal.

No


5. Switch the audio power supply off or switch the ignition off (LOCK) to complete the speaker inspection mode.
Radio Reception Condition Inspection
1. Switch the ignition to ACC or ON (engine off).
2. Press the POWER/VOLUME button to turn the audio on.
3. Tune in the radio.
4. Press PRESET button 2 for 0.2 s or more while simultaneously pressing the POWER/VOLUME button to launch the radio reception condition inspection mode.

5. Inspect according to the following table:

CAUTION:



Inspection

Display

Action

Verify that the launched radio reception condition inspection mode is displayed on the screen.

LEV 10 ― LEV 5

Glass antenna, audio amplifier, antenna feeder and audio unit are normal.

LEV 4 ― LEV 3

Change frequencies and re-perform the inspection.

LEV 2 ― LEV 0


6. Switch the audio power supply off or switch the ignition off (LOCK) to complete the radio reception condition inspection mode.
Antenna control inspection
1. Switch the ignition to ACC or ON (engine off).
2. Press the POWER/VOLUME button to turn the audio on.
3. Press the FM/AM button for 0.2 s or more while simultaneously pressing the POWER/VOLUME button to launch the antenna control inspection mode.

4. Inspect according to the following table:

Inspection

Display

Action

Verify that the launched antenna control inspection mode is displayed on the screen.

ANT―ON

Good sound quality

System is normal.

Bad sound quality

ANT―OFF

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


5. Switch the audio power supply off or switch the ignition off (LOCK) to complete the antenna control inspection mode.
Dial inspection verification
1. Switch the ignition to ACC or ON (engine off).
2. Press the POWER/VOLUME button to turn the audio on.
3. Simultaneously press the AUTO-M button and PRESET button 1 for 3 s or more to launch the dial inspection mode.

NOTE:

4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched dial inspection mode is displayed on the screen.

  • Rotate the dial switch.

  • Does the switch rotation direction correspond to the direction displayed in audio display?

Yes

System is normal.

No

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


5. Switch the audio power supply off or switch the ignition off (LOCK) to complete the dial inspection mode.
Audio amplifier specification verification.
1. Switch the ignition to ACC or ON (engine off).
2. Press the POWER/VOLUME button to turn the audio on.
3. Press the SEEK button (down) for 3 s or more while simultaneously pressing the POWER/VOLUME button to launch the audio amplifier specification inspection mode.

4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched audio amplifier specification inspection mode is displayed on the screen.

  • Verify the audio amplifier specifications.

  • Are the audio amplifier specifications correct?

    Without Bose
  • N (Normal)

    With Bose
  • L (Line out)

System is normal.

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


5. Switch the audio power supply off or switch the ignition off (LOCK) to complete the antenna control inspection mode.
AUTO-M inspection mode
1. Switch the ignition to ACC or ON (engine off).
2. Press the POWER/VOLUME button to turn the audio on.
3. Press PRESET button 1 for 3 s or more while simultaneously pressing the POWER/VOLUME button to launch the AUTO-M inspection mode.

4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched AUTO-M inspection mode is displayed on the screen.

  • Perform the AUTO-M inspection according to the screen instructions.

  • Is the inspection result normal?

--ch

RECEIVED

Yes

System is normal.

No

Inspect the glass antenna, antenna amplifier and antenna feeder.

(See GLASS ANTENNA INSPECTION.)

(See ANTENNA AMPLIFIER INSPECTION.)

(See ANTENNA FEEDER NO.1 INSPECTION.)

(See ANTENNA FEEDER NO.2 INSPECTION.)


5. Switch the audio power supply off or switch the ignition off (LOCK) to complete the AUTO-M inspection mode.
CD diagnostic inspection
1. Switch the ignition to ACC or ON (engine off).
2. Press the POWER/VOLUME button to turn the audio on.
3. Press PRESET button 6 for 3 s or more while simultaneously pressing the POWER/VOLUME button to launch the CD diagnostic inspection mode.

4. Inspect according to the following table:

Inspection

Display

Action

  • Verify that the launched CD diagnostic inspection mode is displayed on the screen.

  • After LOAD NEWDISC is displayed, insert the CD.

  • Is the inspection result normal?

CD DEFECTIVE

System is normal.

MALFUNCTION

Replace the audio unit.

(See AUDIO UNIT REMOVAL/INSTALLATION.)


5. Switch the audio power supply off or switch the ignition off (LOCK) to complete the antenna control inspection mode.


< Previous   Next >
Back to Top
© 2012 Mazda North American Operations, U.S.A.
