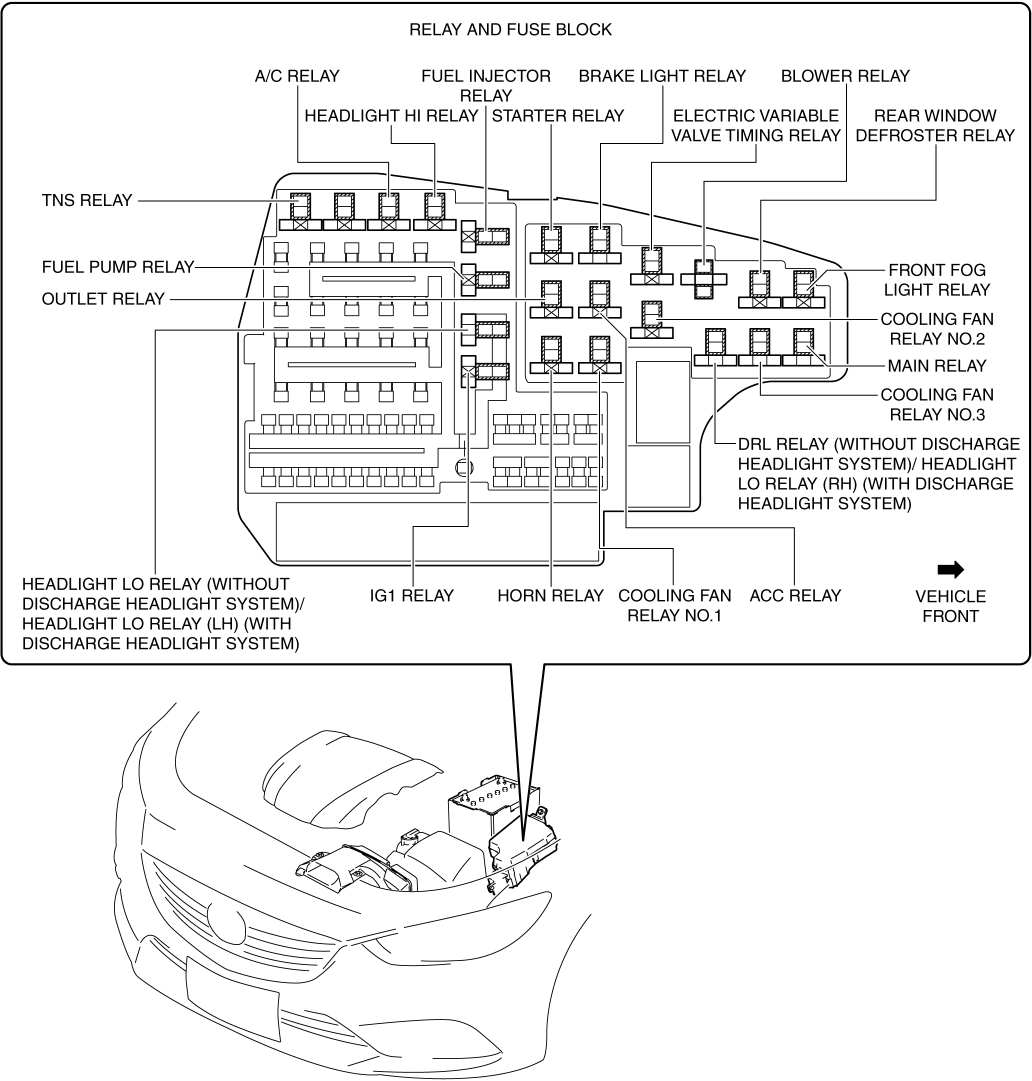

Relays and fuses used by each system are grouped and housed together for smooth inspection and replacement servicing.
Relays and fuses used by each system are grouped and housed together.
Installed in the engine compartment.
1. When electric current flows to the coil, electromagnetic power is generated.
2. The switch is attracted by the generated electromagnetic power and switches on.
1. If electric current to each fuse is the specified value or more, the fuse melts due to heat generation.
2. Current between the fuse and ground is interrupted.
Function not equipped.
