System in which electric current from the battery supplies power to each electrical part.
There are mainly three types of electric power supply as follows, which are divided into system-supplied power and power used by parts.
Supply of direct power from battery
Supply of power by switching ignition ON (engine off)
Supply of power by switching ignition ON (engine on)

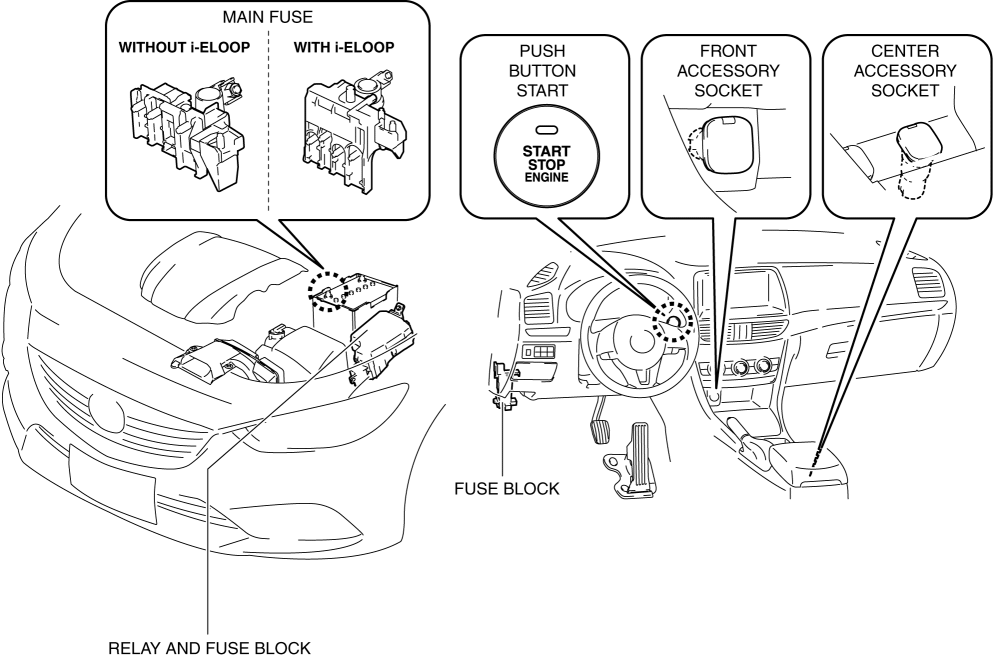

| Component parts | Specification |
|
| Relay and fuse block | Wiring harness-integrated type |
|
| Fuse block | Wiring harness-integrated type |
|
| Relay box | Wiring harness-integrated type |
|
| Main fuse | EPS fuse rating | 60 A |
| MAIN fuse rating | 200 A |
|
| STARTER fuse rating | 250 A |
|
| Push button start | Durable number of times | 200,000 time |
| Type | ON/OFF switch |
|
| Accessory socket | Rated voltage | DC 12 V |
| Rated load | 10 A |
|
