By pressing the switch ON/OFF, the push button start notifies the start stop unit of the user power supply switching operation.
The characters in the push button start illuminate to notify the user of the button position.

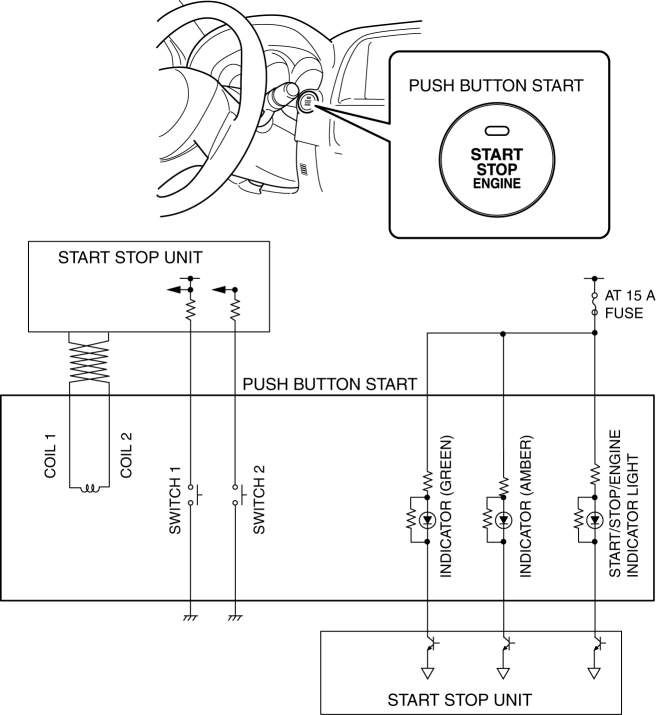

The push button start is installed in the meter hood.
Two types of switches are integrated in the push button start.
The push button start has the following integrated indicators. For the indicator inspection conditions, refer to the POWER SUPPLY SWITCHING.
ACC indicator
ON indicator
Indicator (green)
Indicator (amber)
The push button start has an integrated coil antenna for the immobilizer system. (See COIL ANTENNA.)
When the push button start is pressed, switches 1 and 2 turn on (contact point: closed), and when released, it turns off (contact point: open).

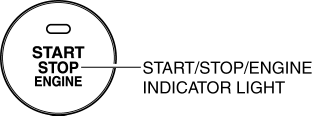

When a door is open/closed, the START/STOP/ENGINE indicator light illuminates when the headlights are turned on.
Function not equipped.
