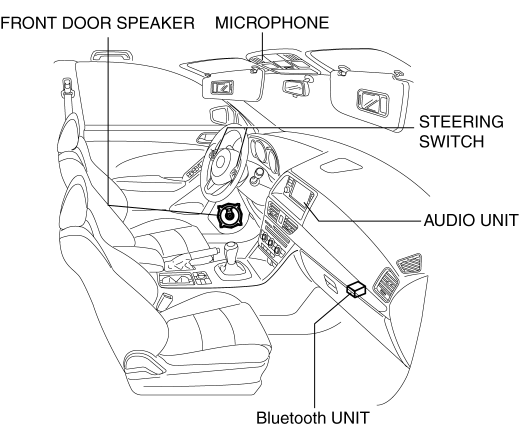

The Bluetooth unit is installed inside the glove compartment.
The Bluetooth unit communicates information between the Bluetooth-enabled mobile phone and portable audio via radio waves.
Communicates information between the Bluetooth unit and audio unit via the CAN signal.
| Item | Function |
|
| Profiles | A2DP 1.0/1.2 (Advanced audio distribution profile) | Sends/receives music or audio data. |
| AVRCP 1.0/1.3/1.4 (Audio/video remote control profile) | Sends/receives operation information. |
|
| HFP 1.0/1.5 (Hands-free profile) | Enables a call using a hands-free phone. |
|
| OPP 1.1 (Object push profile) | Phone book can be downloaded. |
|
| PBAP 1.0 (Phone book access profile) | Sends/receives phone book data. |
|
| Maximum number of devices can be registered | 7 |
|
| Devices can be used simultaneously | 2 |
|
The Bluetooth unit is installed inside the glove compartment.
| Terminal | Signal |
|
|
| 1A | Mic input (+) |
| 1B | Mic input (-) |
|
| 1C | — |
|
| 1D | — |
|
| 1E | — |
|
| 1F | — |
|
| 1G | — |
|
| 1H | — |
|
| 1I | Audio output LH (+) |
|
| 1J | Audio output LH (-) |
|
| 1K | — |
|
| 1L | Audio output shield |
|
| 1M | Audio output RH (+) |
|
| 1N | Audio output RH (-) |
|
| 1O | — |
|
| 1P | — |
|
| 1Q | — |
|
| 1R | — |
|
| 1S | CAN_H |
|
| 1T | CAN_L |
|
| 1U | — |
|
| 1V | — |
|
| 1W | — |
|
| 1X | Ground |
|
| 1Y | — |
|
| 1Z | — |
|
| 1AA | B+ |
|
| 1AB | ACC |
|
|
| 2A | USB ground |
| 2B | USB data (+) |
|
| 2C | USB data (-) |
|
| 2D | USB power supply |
|
|
| 3A | GPS |
| 3B | Ground |
|
For the Bluetooth unit operation, refer to the Bluetooth SYSTEM.
Function not equipped.
