The side turn lights are used to signal vehicles/people at the side of the vehicle that the vehicle is going to make a right or left turn.
The side turn lights flash according to the operation of the turn switch or the hazard warning switch.

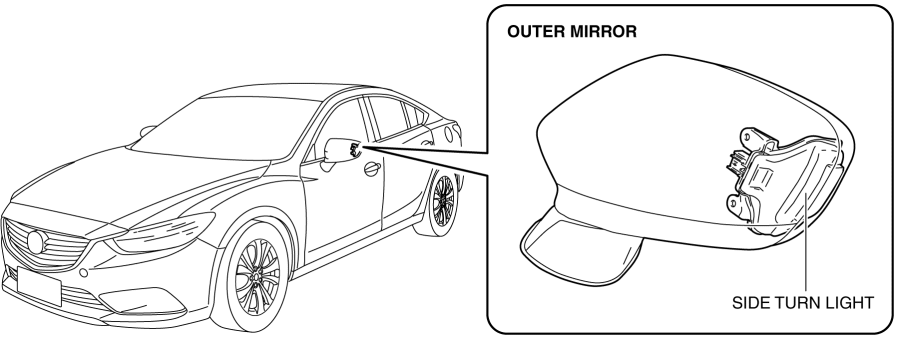

Side turn lights built into the outer mirrors have been adopted.
LED type side turn lights have been adopted.

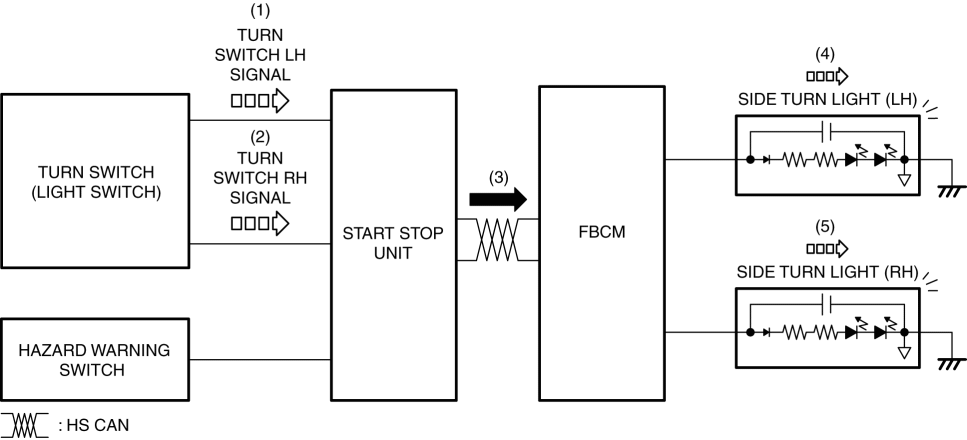

1. When the turn switch is operated to the LH position, a turn switch LH signal is input to the start stop unit.
2. When the turn switch is operated to the RH position, a turn switch RH signal is input to the start stop unit.
3. The start stop unit sends the turn switch LH or RH signal to the front body control module (FBCM).
4. When the front body control module (FBCM) receives the turn switch LH signal, the side turn light (LH) flashes.
5. When the front body control module (FBCM) receives the turn switch RH signal, the side turn light (RH) flashes.

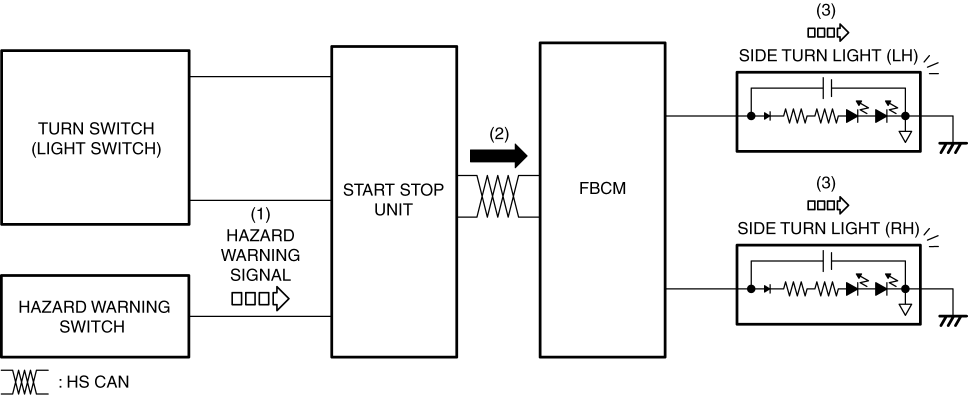

1. When the hazard warning switch is turned on, a hazard warning signal is input to the start stop unit.
2. The start stop unit sends a hazard warning signal to the front body control module (FBCM).
3. When the front body control module (FBCM) receives the hazard warning signal, the side turn light (LH) and (RH) flash.
Function not equipped.
