Performs lock/unlock switching of the front doors electrically based on the signal from the rear body control module (RBCM).
The built-in motor is operated in the lock direction, and the latch lever will not release even if an outer handle is operated.
The built-in motor is operated in the unlock direction and the latch lever releases when an inner/outer handle is operated.

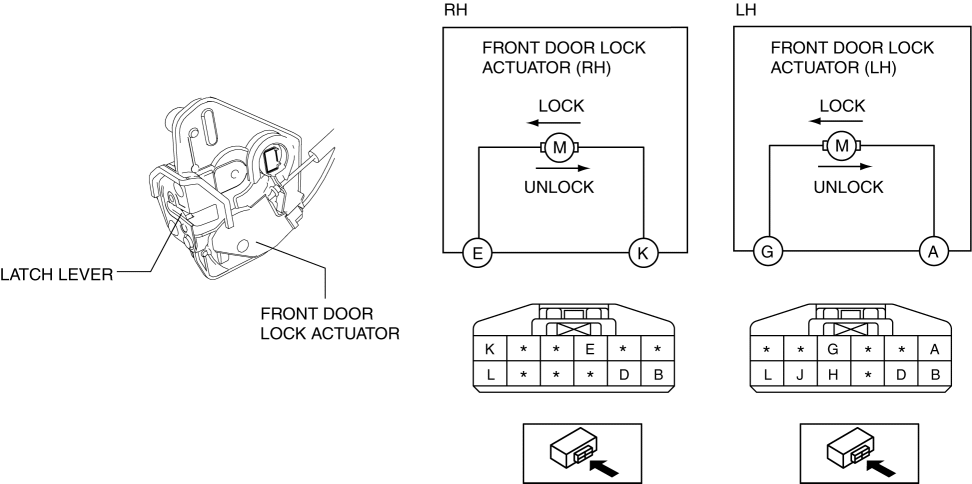

The front door lock actuator has a built-in motor, and the link installed to the motor moves in the lock/unlock direction in conjunction with the motor rotation.
The link for the outer handle and latch lever can be disconnected by the movement of the link installed to the motor.
When the door lock is unlocked, the link for the inner/outer handle and latch lever release is connected.
When the door lock is locked, the link for the outer handle and latch lever release is disconnected.
1. The front door lock actuator rotates the built-in motor to the lock side.
2. When the motor rotates to the lock side, the link installed to the motor moves in the lock direction, and the link for the outer handle and latch lever release disconnects.
3. When the link connection is disconnected, the latch lever cannot be released even if an outer handle is operated.
1. The front door lock actuator rotates the built-in motor to the unlock side.
2. When the motor rotates to the unlock side, the link installed to the motor moves in the unlock direction, and the link for the outer handle and latch lever release connects.
3. When the link connects, the latch lever is released by the inner and outer handle operation.
Function not equipped.
