ON-BOARD DIAGNOSIS SYSTEM [POSITION MEMORY SYSTEM]

Outline

The on-board diagnostic function consists of the following functions: A malfunction detection function, which detects overall malfunctions in the position memory control module-related parts; a memory function, which stores detected DTCs; a display function, which indicates malfunction locations and status via DTC output; and a PID/data monitoring function, which reads out specific input/output signals and verifies the input/output condition.

Using the Mazda Modular Diagnostic System (M-MDS), DTCs can be read out and deleted, and the PID/data monitoring function can be activated.

Malfunction detection function

Detects malfunctions in input/output signals.

If a malfunction occurs, the position memory control module records the malfunction as a DTC. A recorded DTC can be read by the Mazda Modular Diagnostic System (M-MDS).

DTC table

×: Applicable—: Not applicable


DTC No.	Warning/indicator light	Description	Fail-safe function	Drive cycle	Self test type^*1	Memory function
B1B87:13	—	Lift motor and position sensor circuit malfunction	×	—	C	×
B1B89:13	—	Slide motor and position sensor circuit malfunction	×	—	C	×
B1B91:13	—	Tilt motor and position sensor circuit malfunction	×	—	C	×
B1B93:13	—	Recliner motor and position sensor circuit malfunction	×	—	C	×
U0100:00	—	Communication error with PCM	×	—	C	×
U0101:00^*2	—	Communication error with TCM	×	—	C	×
U0151:00	—	Communication error with SAS control module	×	—	C	×
U0155:00	—	Communication error with instrument cluster	×	—	C	×
U0214:00	—	Communication error with start stop unit	×	—	C	×
U3003:16	—	Position memory control module power supply voltage low input	—	—	C	×

^*1: C: CMDTC self test, D: ODDTC self test
^*2: ATX

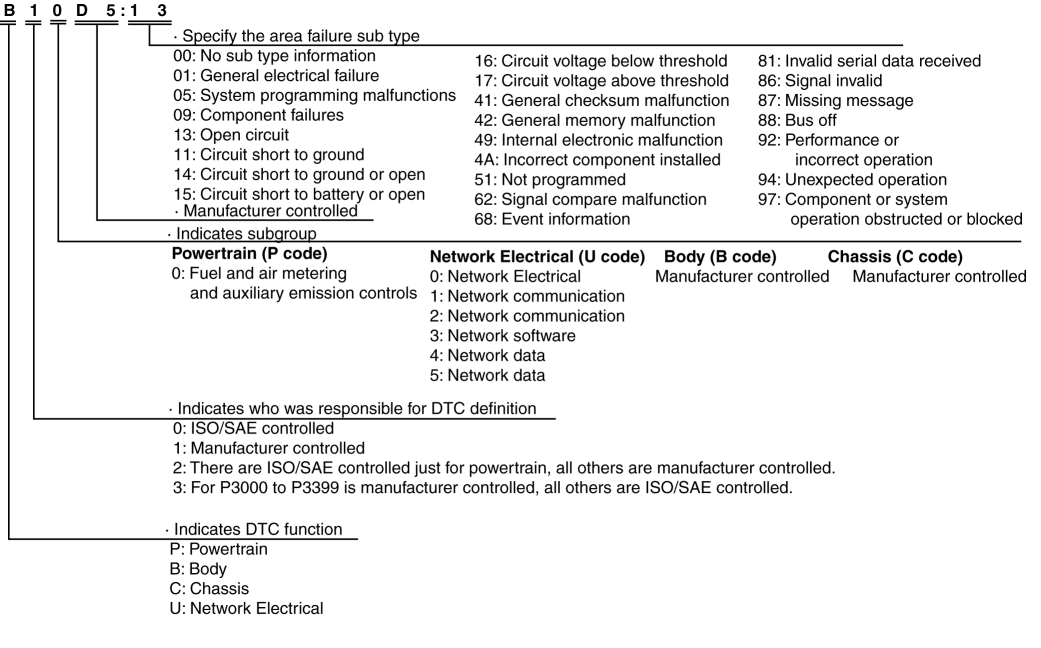

DTC 7-digit code definition

When related systems or components have failed, the CM stores the DTC of the malfunctioning part in the CM memory, and allows for the retrieval of the stored data using the scanning tool when necessary. The DTCs are indicated using seven digits. Each digit indicates the following.

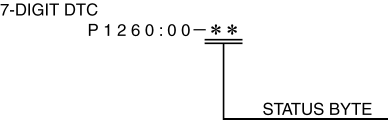

Status byte for DTC

The status byte is the two digits (two digits after hyphen (-)) after the 7-digit DTC.

The status byte is a code which indicates the pending code, current/past malfunction status, or warning illumination status.

The status byte can be read by performing a CMDTC self-test using the Mazda Modular Diagnostic System (M-MDS).

For details on the status byte, refer to the explanation on the Mazda Modular Diagnostic System (M-MDS) when reading the DTC.

Detection condition for the applicable DTC


DTC No.	System malfunction location	Detection condition
B1B87:13	Lift motor and position sensor circuit malfunction	Position memory control module detects the following conditions during the lift motor operation control: Detects 4 times that current flowing to the lift motor is less than 1 A. Detects for 0.2 s that there is no change in the lift sensor pulse. Position memory control module detects any of the following conditions during the lift motor non-operation control: Detects 4 times that current flowing to the lift motor exceeds 10 A. Detects 4 times that current flowing to the lift motor exceeds 1 A and a change in the lift sensor pulse 5 timeswithin 1 s. Position memory control module detects for 5 s that there is no change in the lift sensor pulse during the lift motor operation control.
B1B89:13	Slide motor and position sensor circuit malfunction	Position memory control module detects the following conditions during the slide motor operation control: Detects 4 times that current flowing to the slide motor is less than 1 A. Detects for 0.2 s that there is no change in the slide sensor pulse. Position memory control module detects any of the following conditions during the slide motor non-operation control: Detects 4 times that current flowing to the slide motor exceeds 10 A. Detects 4 times that current flowing to the slide motor exceeds 1 A and a change in the slide sensor pulse 5 timeswithin 1 s. Position memory control module detects for 5 s that there is no change in the slide sensor pulse during the slide motor operation control.
B1B91:13	Tilt motor and position sensor circuit malfunction	Position memory control module detects the following conditions during the tilt motor operation control: Detects 4 times that current flowing to the tilt motor is less than 1 A. Detects for 0.2 s that there is no change in the tilt sensor pulse. Position memory control module detects any of the following conditions during the tilt motor non-operation control: Detects 4 times that current flowing to the tilt motor exceeds 10 A. Detects 4 times that current flowing to the tilt motor exceeds 1 A and a change in the tilt sensor pulse 5 timeswithin 1 s. Position memory control module detects for 5 s that there is no change in the tilt sensor pulse during the tilt motor operation control.
B1B93:13	Recliner motor and position sensor circuit malfunction	Position memory control module detects the following conditions during the recliner motor operation control: Detects 4 times that current flowing to the recliner motor is less than 1 A. Detects for 0.2 s that there is no change in the recliner sensor pulse. Position memory control module detects any of the following conditions during the recliner motor non-operation control: Detects 4 times that current flowing to the recliner motor exceeds 10 A. Detects 4 times that current flowing to the recliner motor exceeds 1 A and a change in the recliner sensor pulse 5 timeswithin 1 s. Position memory control module detects for 5 s that there is no change in the recliner sensor pulse during the recliner motor operation control.
U0100:00	Communication error with PCM	Position memory control module could not receive the CAN signal from the PCM for 5 s or more.
U0101:00^*1	Communication error with TCM	Position memory control module could not receive the CAN signal from the TCM for 5 s or more.
U0151:00	Communication error with SAS control module	Position memory control module could not receive the CAN signal from the SAS control module for 5 s or more.
U0155:00	Communication error with instrument cluster	Position memory control module could not receive the CAN signal from the instrument cluster for 5 s or more.
U0214:00	Communication error with start stop unit	Position memory control module could not receive the CAN signal from the start stop unit for 5 s or more.
U3003:16	Position memory control module power supply voltage low input	Position memory control module detects the following conditions: Position memory control module power supply circuit (terminal 1M) voltage of 9 V or less is detected. Position memory control module power supply circuit (terminal 1G) voltage of 6.5 V or more, 9 V or less is detected for 10 s or more.

*1: ATX

Data Monitor Function

With the PID/data monitor function, input/output signal monitor items set in the position memory control module can be selected and read out in real-time.

PID/data monitor table


PID	Unit/Operation	Data contents	Inspection item(s)
FTLT_MTR_DN	Off/On	Off: Tilt motor is not operated to down. On: Tilt motor is operated to down.	Tilt motor
FTLT_MTR_UP	Off/On	Off: Tilt motor is not operated to up. On: Tilt motor is operated to up.	Tilt motor
FTLT_SW_DN	Off/On	Off: Tilt switch is not operated to down. On: Tilt switch is operated to down.	Tilt switch
FTLT_SW_UP	Off/On	Off: Tilt switch is not operated to up. On: Tilt switch is operated to up.	Tilt switch
M_SET_SW	Off/On	Off: Position memory switch SET not pressed On: Position memory switch SET pressed	Position memory switch
MEMORY_SW_1	Off/On	Off: Position memory switch 1 not pressed On: Position memory switch 1 pressed	Position memory switch
MEMORY_SW_2	Off/On	Off: Position memory switch 2 not pressed On: Position memory switch 2 pressed	Position memory switch
REC_MTR_BK	Off/On	Off: Recliner motor is not operated to recline. On: Recliner motor is operated to recline.	Recliner motor
REC_MTR_FW	Off/On	Off: Recliner motor is not operated to front. On: Recliner motor is operated to front.	Recliner motor
REC_SW_DWN	Off/On	Off: Recliner switch is not operated to recline. On: Recliner switch is operated to recline.	Recliner switch
REC_SW_UP	Off/On	Off: Recliner switch is not operated to front. On: Recliner switch is operated to front.	Recliner switch
RTLT_MTR_DN	Off/On	Off: Lift motor is not operated to down. On: Lift motor is operated to down.	Lift motor
RTLT_MTR_UP	Off/On	Off: Lift motor is not operated to up. On: Lift motor is operated to up.	Lift motor
RTLT_SW_DN	Off/On	Off: Lift switch is not operated to down. On: Lift switch is operated to down.	Lift switch
RTLT_SW_UP	Off/On	Off: Lift switch is not operated to up. On: Lift switch is operated to up.	Lift switch
SLIDE_MTR_B	Off/On	Off: Slide motor is not operated to slide back. On: Slide motor is operated to slide back.	Slide motor
SLIDE_MTR_F	Off/On	Off: Slide motor is not operated to front slide. On: Slide motor is operated to front slide.	Slide motor
SLIDE_SW_B	Off/On	Off: Slide switch is not operated to slide back. On: Slide switch is operated to slide back.	Slide switch
SLIDE_SW_F	Off/On	Off: Slide switch is not operated to front slide. On: Slide switch is operated to front slide.	Slide switch
VPWR	V	Displays position memory control module power supply voltage	Battery Position memory control module
