Fogging is cleared from the rear window and outer mirror glass by heating of the filament.

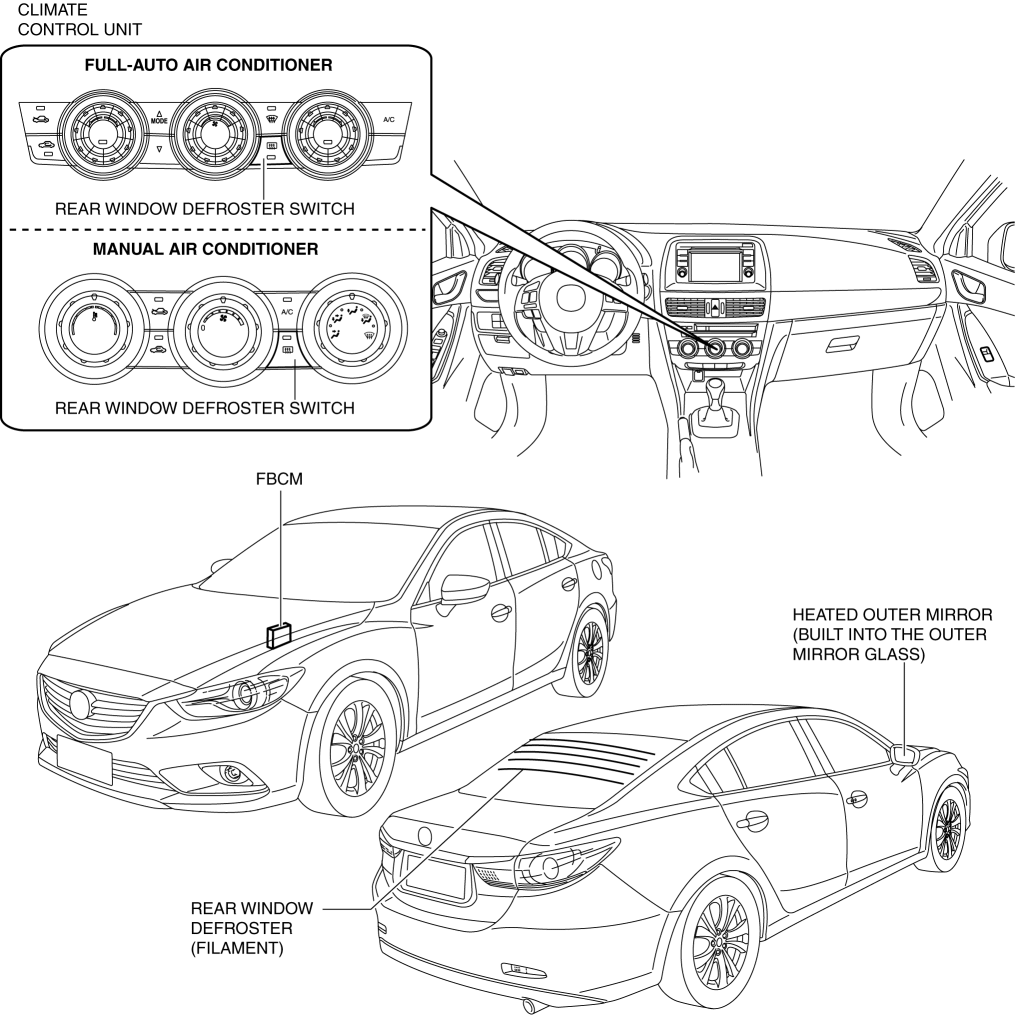

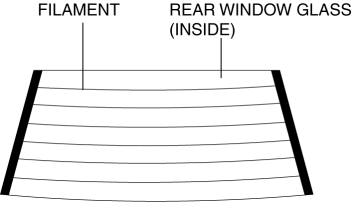

The rear window defroster filament is inside the rear window glass.

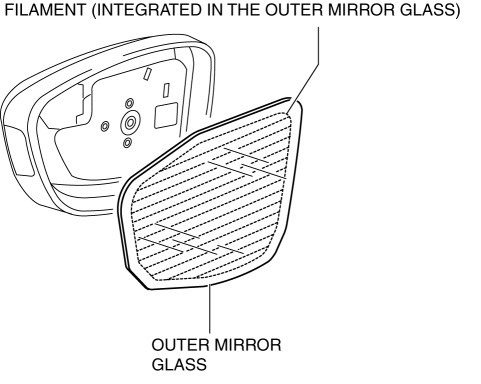

The heated outer mirror filament is integrated in the outer mirror glass.

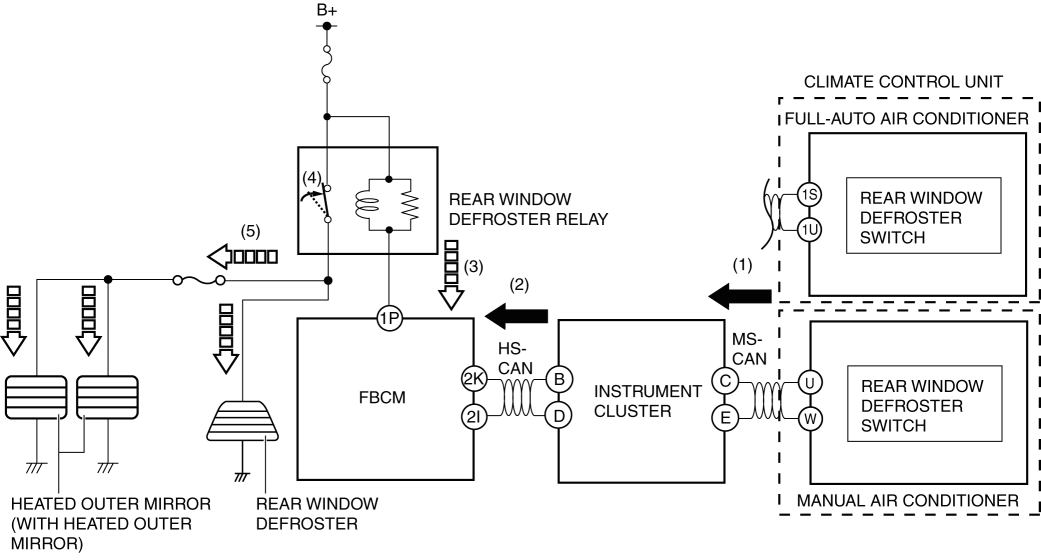

1. When the rear window defroster switch on the climate control unit is turned on (1), an ON/OFF control request signal is sent to the front body control module (FBCM) through the instrument cluster as a CAN signal.(2)
2. When the front body control module (FBCM) receives the ON/OFF control request signal, it supplies the battery voltage to the rear window defroster relay.(3)
3. When the battery voltage is supplied to the rear window defroster relay, a switch inside the rear window defroster relay is turned on.(4)
4. When the switch inside the rear window defroster relay is turned on, the battery voltage is supplied to the rear window defroster/heated outer mirrors to operate them.(5)
When approx. 15 min. has elapsed after the rear window defroster switch was turned on, the timer control of the front body control module (FBCM) turns off the rear window defroster relay automatically to turn off the rear window defroster/heated outer mirror.
When the rear window defroster switch is pressed while the rear window defroster/heated outer mirrors are operating, they stop operating.

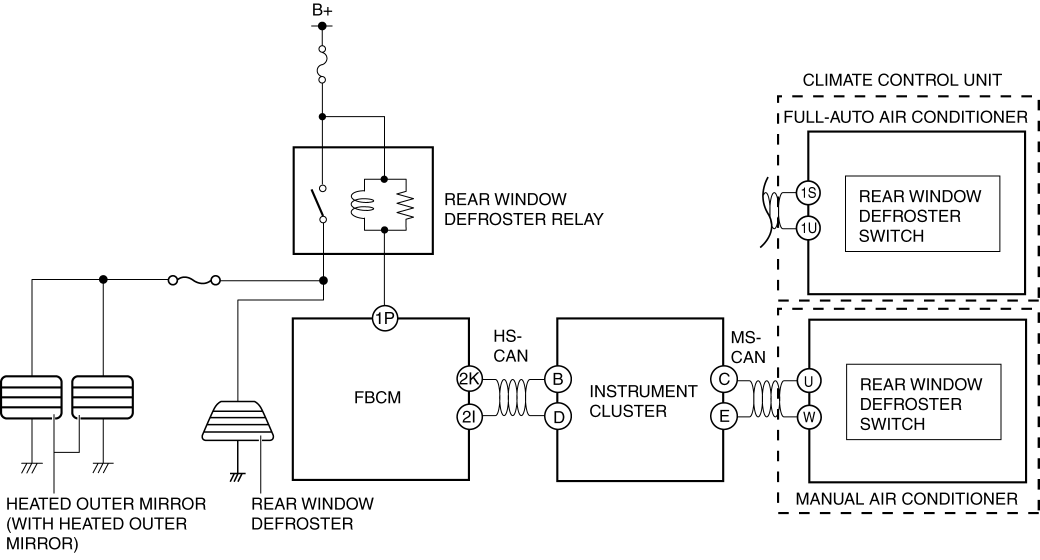

Function not equipped.
