MANUAL AIR CONDITIONER CONTROL SYSTEM [MANUAL AIR CONDITIONER]

Outline

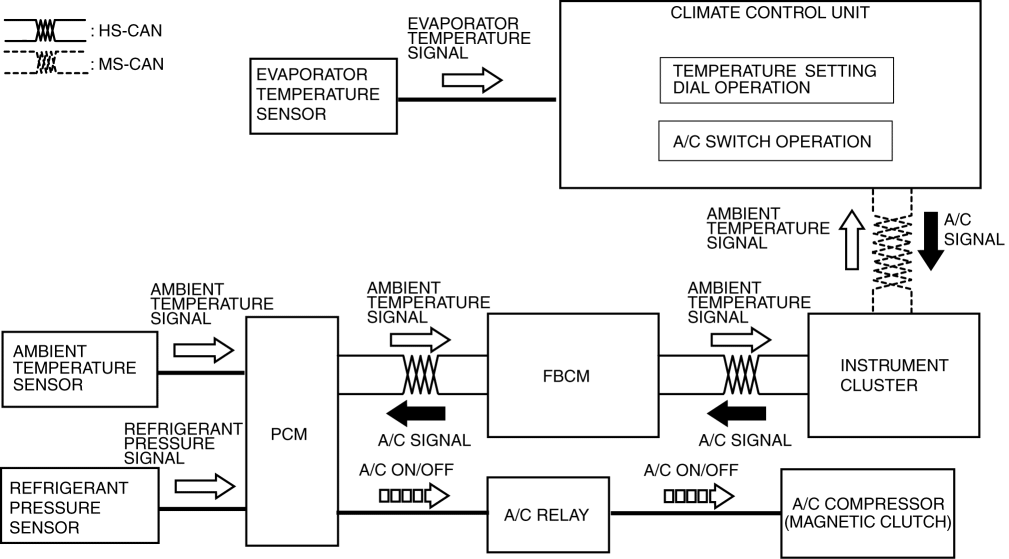

A/C cut-off control

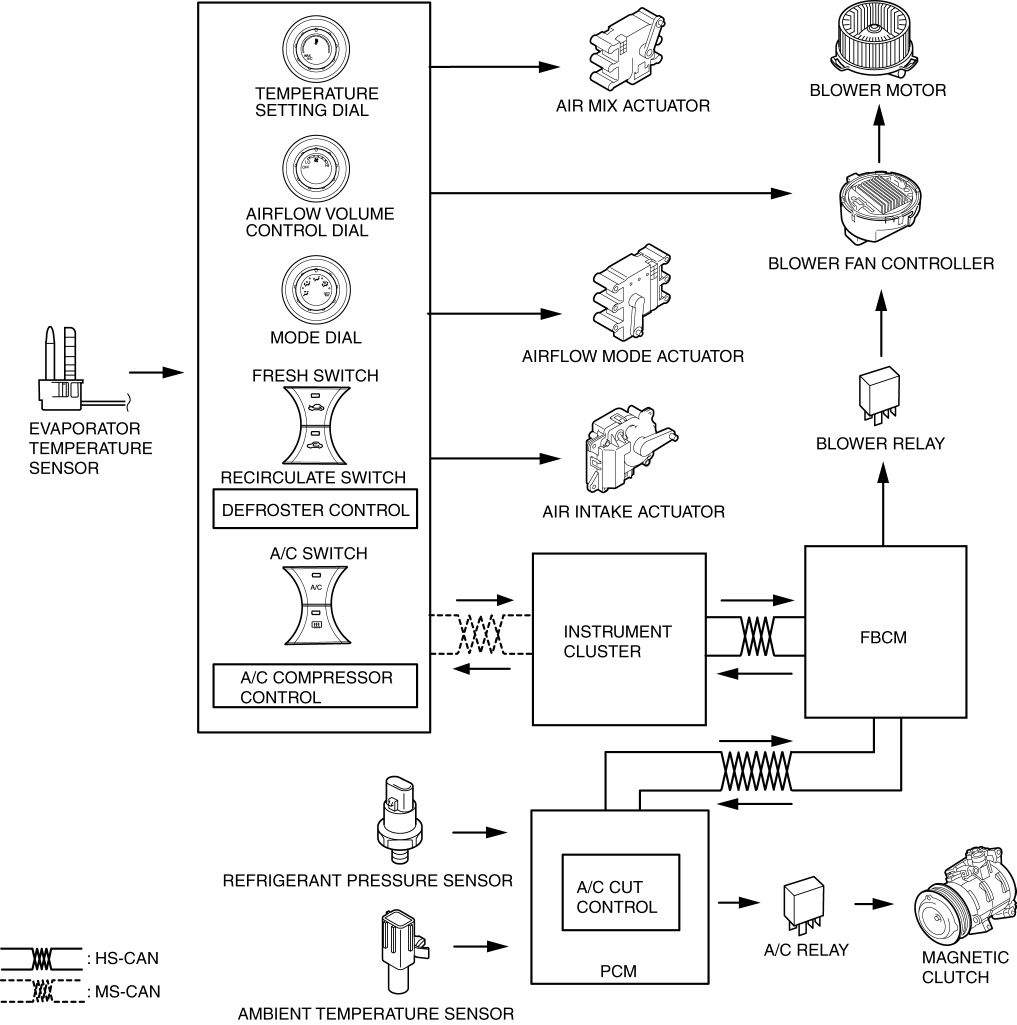

Block Diagram

Outline of Control System



Control name

Control part

  • Airflow temperature control

  • Airflow volume control

  • Airflow mode control

  • Air intake control

  • A/C compressor control

Climate control unit




Supplementary function

Fail-safe function

Sensor signal delay function

On-board diagnostic function


Sensor Signal Delay Function

Airflow Temperature Control

MAX A/C control

Airflow Volume Control



Airflow volume control dial

Blower motor applied voltage

1st

3.7 V

2nd

5.2 V

3rd

6.9 V

4th

8.6 V

5th

10.0 V

6th

12.1 V

7th

14.6 V*1, 13.0V*2


*1
When the airflow mode is other than HEAT.
*2
When the airflow mode is HEAT.
Start-up burn-out prevention function
Delay control

Airflow Mode Control



Airflow mode

Operation switch

Air vent

VENT

Mode switch

CENTER VENT, SIDE VENT

BI-LEVEL

CENTER VENT, SIDE VENT, FRONT HEAT, REAR HEAT

HEAT

FRONT HEAT, REAR HEAT, SIDE DEMISTER (low volume), DEFROSTER (low volume), SIDE VENT (low volume)

DEF/HEAT

FRONT HEAT, REAR HEAT, SIDE DEMISTER, DEFROSTER, SIDE VENT (low volume)

DEFROSTER

DEFROSTER switch

SIDE DEMISTER, DEFROSTER, SIDE VENT (low volume)


Air Intake Control



Air intake mode

REC switch operation

FRESH

Fixed to FRESH when the FRESH switch is turned on during REC mode

REC

Fixed to REC when the RECIRCULATE switch is turned on during FRESH mode


Defroster control
REC mode control under severe heat

A/C Compressor Control

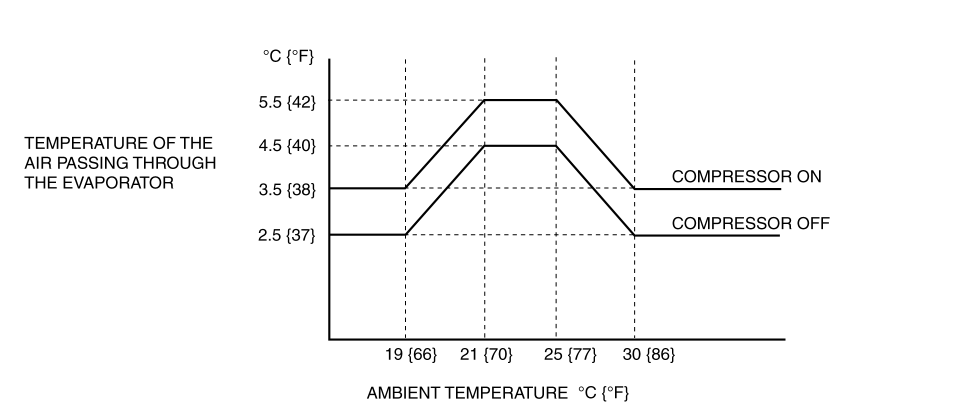

A/C signal on/off control
