2014 - Mazda6 - Transmission/Transaxle

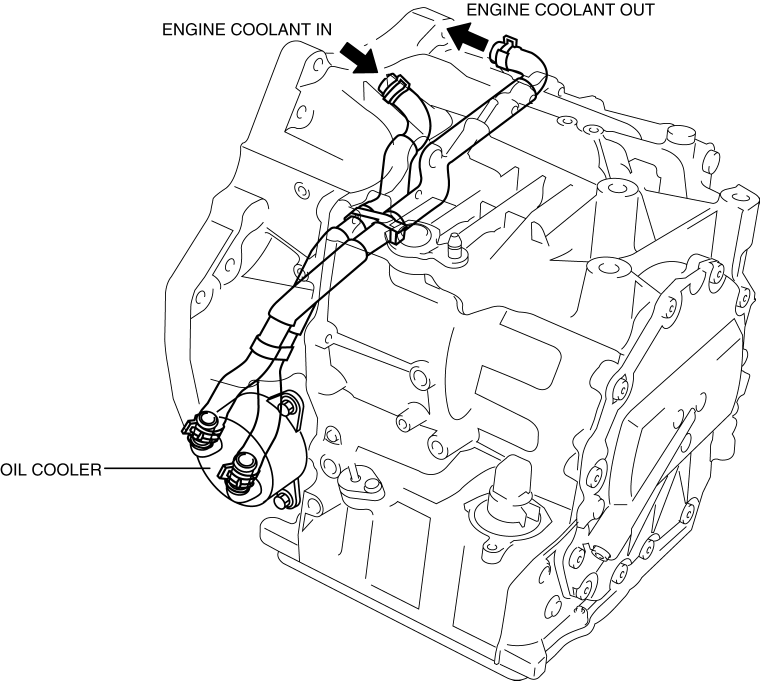

OIL COOLER [FW6A-EL]

Purpose/Function

• The oil cooler constantly maintains maximum ATF performance in the transaxle by maintaining an optimum ATF temperature which has the effect of achieving reduced fuel consumption.

Construction/Operation

• The oil cooler performs the following operations according to the ATF temperature condition:

• Heating function: Warms the ATF using the radiator coolant to promote an earlier increase in the ATF temperature when its temperature is low. As a result of the earlier temperature increase, the ATF viscosity decreases which reduces drag in the transaxle.

• Cooling function: Cools the ATF using the radiator coolant to maintain optimum conditions and prevent ATF expansion and deterioration.
