2014 - Mazda6 - Body and Accessories

FORWARD SENSING CAMERA (FSC) AIMING

NOTE:

Aiming procedure

1. Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools.
2. Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION.)
3. Move the vehicle to level ground.

CAUTION:

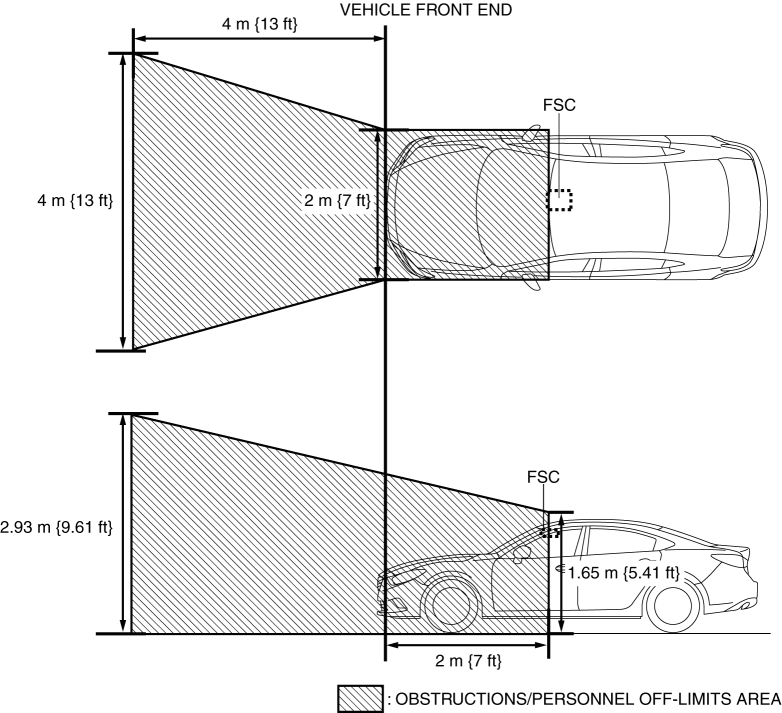

4. Verify that there are no obstructions such as metal objects in the shaded areas shown in the figure.

CAUTION:

5. Perform the DTC inspection for the FSC using the M-MDS and verify that no DTCs other than B115E:54 are displayed. (See DTC INSPECTION [FORWARD SENSING CAMERA (FSC)].)

NOTE:

6. Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center position at the front of the vehicle, and mark the center position (point A) on the floor surface.

NOTE:

7. Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center position at the rear of the vehicle, and mark the center position (point B) on the floor surface.

NOTE:

8. Secure the end of the leveling line over point B.

NOTE:

9. Pull the unsecured end of the leveling line over the vehicle and to the front and adjust it so that it passes over point A.
10. Mark the line (position A) at the point 50 cm {20 in} from point A and in the direction forward of the vehicle.

11. Mark the points (points D and E) 35 cm {14 in} from point C on the line which runs perpendicular to the vehicle center line.

12. Pull the connected points D, C and E lines (target setting line).
13. Print out 2 sheets of the following target paper without using scaling.

NOTE:

14. Cut the printed target sheets along the dotted line and line up the two sheets at their respective center marks as shown in the figure, and then affix cellophane tape to the back of the target.

CAUTION:

15. Verify that the taped-together target is of the dimensions shown in the figure.

16. Affix double-sided adhesive tape to the back of the target.

CAUTION:

17. Align the target to the height shown in the figure, and affix it to a board.

NOTE:

18. Align the center of the target with point C using the SST (plum bob).

19. Align so that the board and the target setting line are level with the center of point C.
20. Connect the M-MDS (IDS) to the DLC-2.
21. After vehicle identification, the following can be selected from the M-MDS initialization screen.
22. Input the following values according to the instructions on the M-MDS screen.

Item

Value

mm

in

Input height from the ground to the wheel house.

Front Left

725

Front Right

725

Rear Left

718

Rear Right

718

Input the distance from the target to the front wheel center.

-1,450

-57

Input the distance from the lens center to the vehicle center.

26.75

1

Input the distance from the ground to the target center.

1,270

50


23. Perform the FSC aiming procedure according to the directions on the M-MDS.
24. Verify the M-MDS display.


Error code

Detection condition

01

Target set position or input value is incorrect

02

Visibility where aiming is performed is bright or dark, target soiled

03

Target is not detected

04

Target moves during aiming

05

Input vehicle value exceeds specification

06

Aiming result is required during aiming

08

Aiming result is required for FSC with aiming not completed

FF

Aiming cannot be performed due to communication error


Error code 01/05

Step

Inspection

Action

1

VERIFY VEHICLE HEIGHT INPUT VALUE
  • Verify the vehicle height indicated in Step 22 for aiming with the input value.

  • Is the value input correctly?

Yes

Go to the next step.

No

Input the vehicle height indicated in Step 22 for aiming, then go to the next step.

2

    VERIFY TARGET POSITION
  • Verify the following:

    • Are the vehicle and target set on level ground?

    • Is the target set to the position indicated in the procedure?

    • Are the board and the target set line parallel and is the height at the center of the target correct?

    • Is the target produced as indicated in the procedure?

    • Is there any dirt, cracks, damage, or wrinkling on the target and board?

  • Is there any malfunction?

Yes

Repair the target for malfunction and go to the next step.

No

Go to the next step.

3

PERFORM FSC AIMING
  • Perform the FSC aiming.

  • Is the FSC aiming completed normally?

Yes

FSC aiming is completed.

No

    Error code 01 or 05 is displayed
  • Go to the next step.

    Code other than error cord 01 or 05 is displayed
  • Go to the procedure for the displayed error code.

4

PERFORM FSC AIMING AT ACTUAL MEASURED VALUE OF VEHICLE HEIGHT
  • Measure the vehicle height according to the actual measurement procedure for the wheel house height.

    (See Wheel house height measurement procedure.)

  • Input the actual measured value and perform the FSC aiming.

  • Is the FSC aiming completed normally?

Yes

The FSC aiming is completed.

No

Go to the next step.

5

    VERIFY DTC
  • Perform the DTC inspection for the FSC.

  • Is the DTC displayed?

Yes

No

Re-perform the FSC aiming, and replace the FSC if the FSC aiming is not completed normally.

(See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)


Error code 02/03/04

Step

Inspection

Action

1

VERIFY TARGET AND TARGET SETTING ENVIRONMENT
  • Verify the following:

    • Is there any dirt or damage on the windshield, FSC lens, and FSC cover?

    • Does direct sunlight penetrate the camera or target surroundings?

    • Is the camera or target surroundings shadowed?

    • Is there any dirt, cracks, damage, or wrinkling on the target and board?

    • Is the target produced in white and black?

    • Is there any obstruction or moving object within the shaded area indicated in Step 4 for aiming?

    • Is the target produced as indicated in the procedure?

    • Does the target move during aiming?

  • Is there any malfunction?

Yes

Repair the malfunctioning part and go to the next step.

No

Go to the next step.

2

PERFORM FSC AIMING
  • Perform the FSC aiming.

  • Is the FSC aiming completed normally?

Yes

The FSC aiming is completed.

No

    Error code 02 or 03 or 04 is displayed
  • Go to the next step.

    Code other than error code 02 or 03 or 04 is displayed
  • Go to the procedure for the displayed error code.

3

PERFORM FSC AIMING WITH ACTUAL MEASURED VALUE OF VEHICLE HEIGHT
  • Measure the vehicle height according to the actual measurement procedure for the wheel house height.

    (See Wheel house height measurement procedure.)

  • Input the actually measured value and perform the FSC aiming.

  • Is the FSC aiming completed normally?

Yes

The FSC aiming is completed.

No

Go to the next step.

4

    VERIFY DTC
  • Perform the DTC inspection for the FSC.

  • Is the DTC displayed?

Yes

No

Re-perform the FSC aiming, and replace the FSC if the FSC aiming is not completed normally.

(See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)


Error code 06/08

Step

Inspection

Action

1

PERFORM FSC AIMING
  • Re-perform the FSC aiming.

  • Is the FSC aiming completed normally?

Yes

The FSC aiming is completed.

No

    Error code 06 or 08 is displayed
  • Go to the next step.

    Code other than error code 06 or 08 is displayed
  • Go to the procedure for the displayed error code.

2

    VERIFY DTC
  • Perform the DTC inspection for the FSC.

  • Is the DTC displayed?

Yes

No

Re-perform the FSC aiming, and replace the FSC if the FSC aiming is not completed normally.

(See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)


Error code FF

Step

Inspection

Action

1

    VERIFY DTC
  • Perform the DTC inspection for the FSC.

  • Is the DTC displayed?

Yes

No

Re-perform the FSC aiming, and replace the FSC if the FSC aiming is not completed normally.

(See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)


Wheel house height measurement procedure

1. Adjust the SST (plum bob) so that it crosses the center of the wheel and identify the center position of the wheel house.

2. Measure the height from the uppermost part of the wheel house to the floor.
