1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5].)
2. Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)
3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

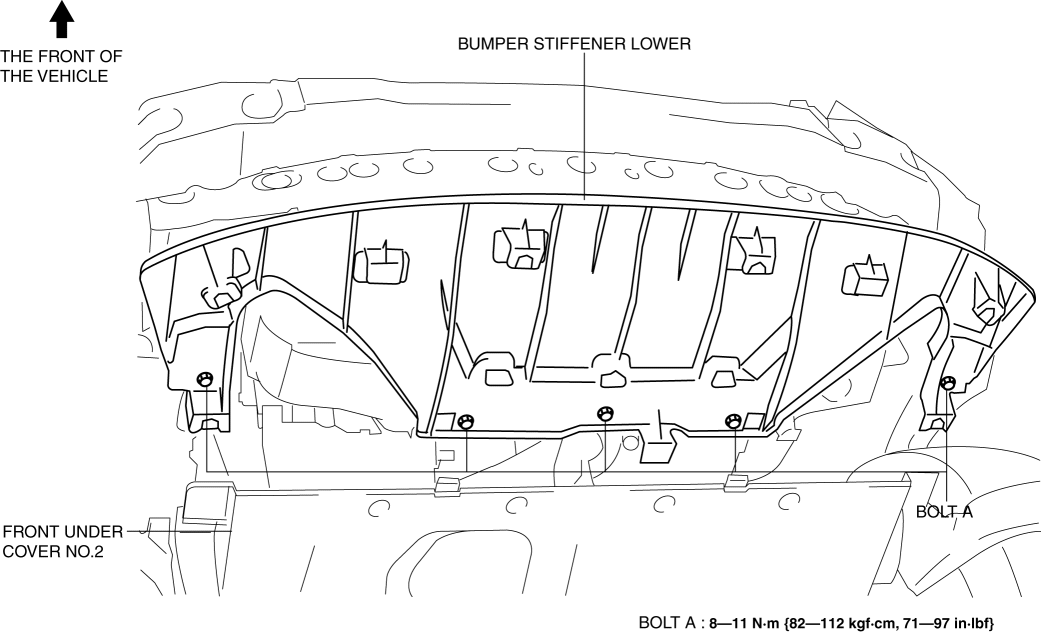

4. Remove bolts A.

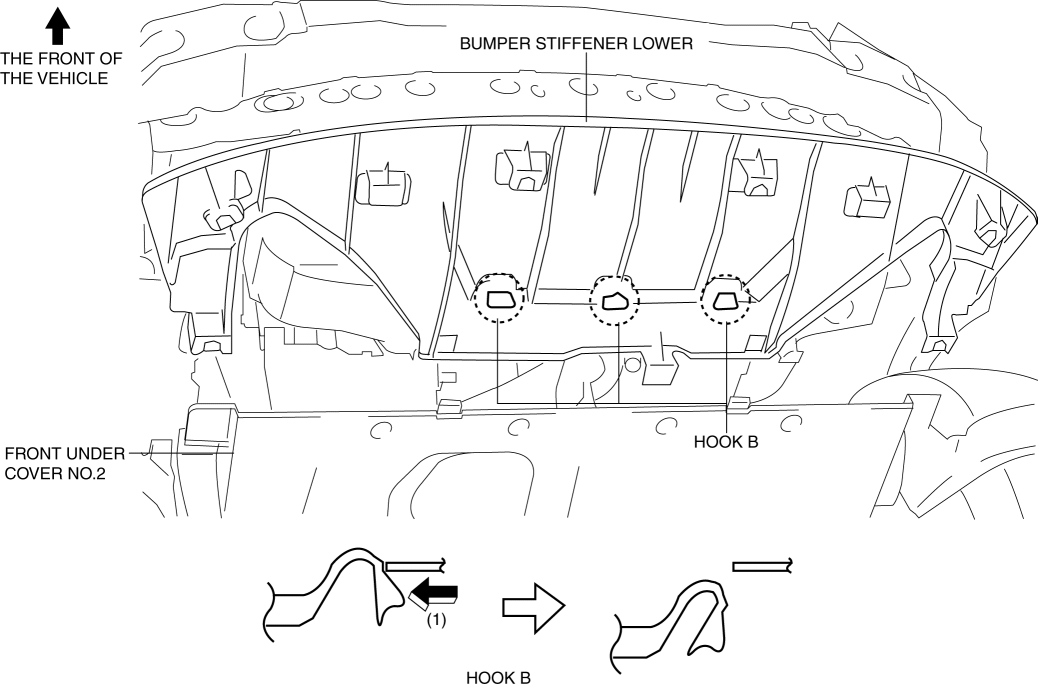

5. Push the hooks B in the direction of the arrow (1) shown in the figure and remove it.

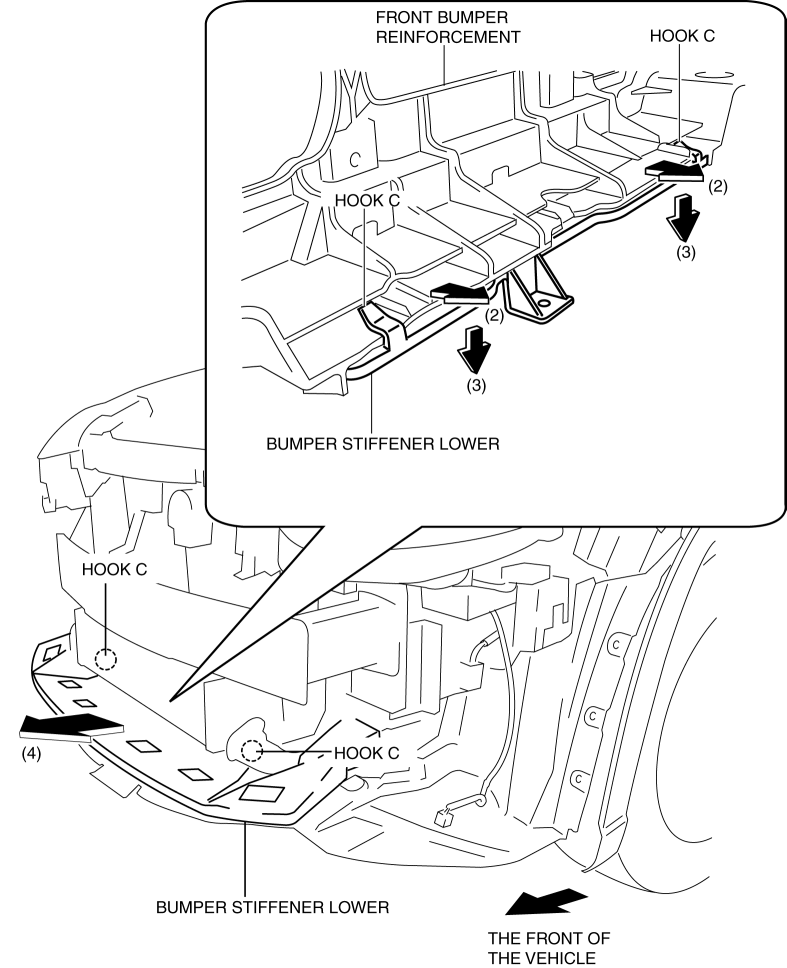

6. Pull the bumper stiffener lower in the direction of the arrow (2), (3) shown in the figure, detach hooks C.
7. Remove the bumper stiffener lower in the direction of the arrow (4) shown in the figure.
8. Install in the reverse order of removal.
9. Adjust the front fog light aiming. (with front fog lights) (See FRONT FOG LIGHT AIMING.)
