CAUTION:
Performing the following procedures without first removing the front ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the front ABS wheel-speed sensor wiring harness (axle side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.
Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the steering shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.
1. Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
2. Disconnect the intermediate shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
3. Disconnect the front ABS wheel-speed sensor wiring harness installed to the steering knuckle and set it aside. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)

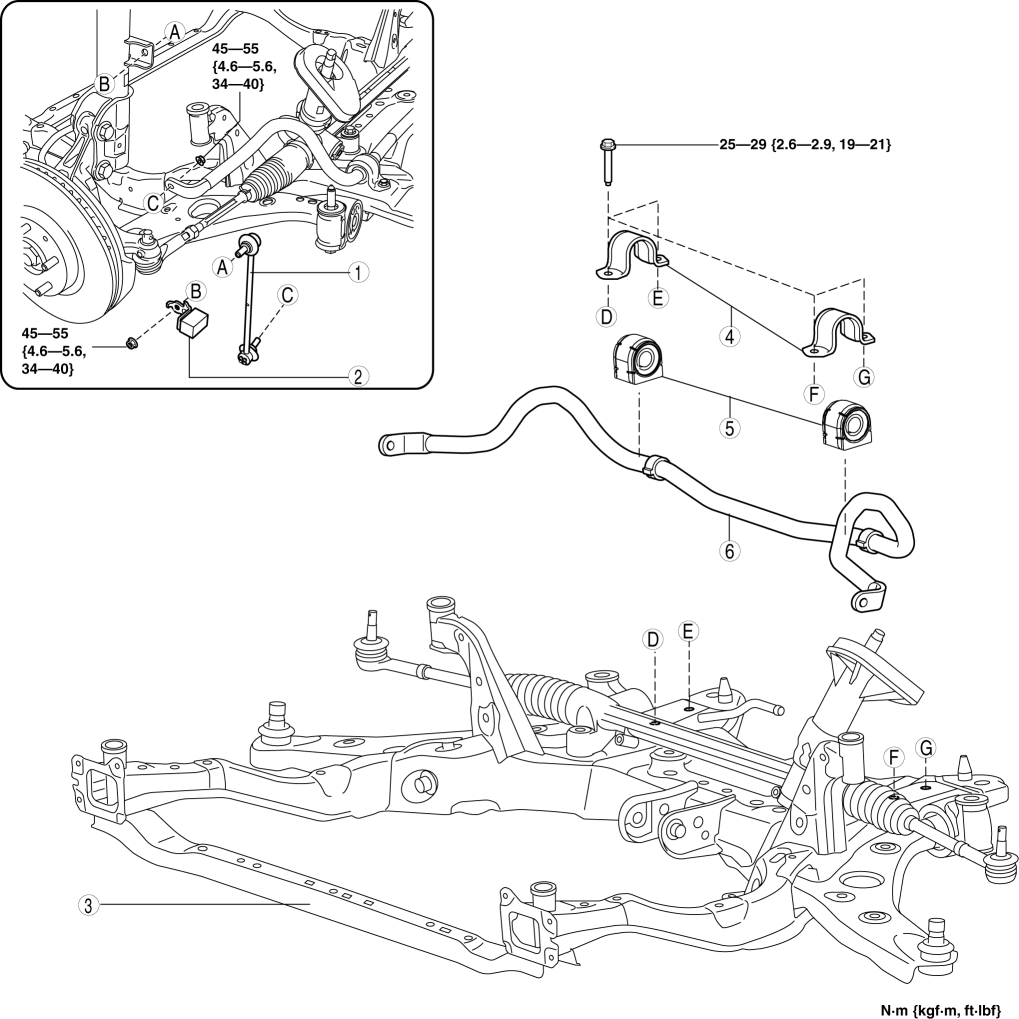

| 1 | Front stabilizer control link |
| 2 | Dynamic damper |
| 3 | Front crossmember component |
| 4 | Front stabilizer bracket (See Front Stabilizer Bushing, Front Stabilizer Bracket Installation Note.) |
| 5 | Front stabilizer bushing (See Front Stabilizer Bracket Removal Note.) (See Front Stabilizer Bushing, Front Stabilizer Bracket Installation Note.) |
| 6 | Front stabilizer (See Front Stabilizer Bushing, Front Stabilizer Bracket Installation Note.) |

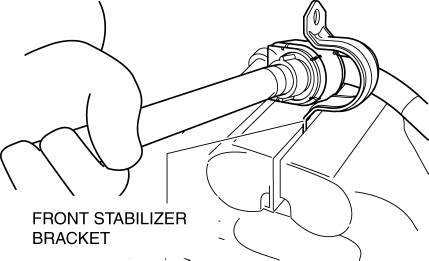

1. Secure the front stabilizer bracket flange using a vise.

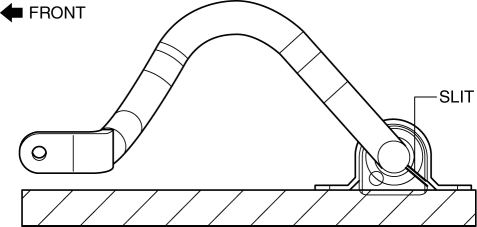

1. Install the front stabilizer bushing to the front stabilizer with its slit positioned rearward of the vehicle.
2. Install the front stabilizer bracket to the front stabilizer bushing by hand using the following procedure.
3. If the front stabilizer bracket cannot be installed by hand, install it using a vise.CAUTION:
If the front stabilizer bracket is installed using a vise, it could be deformed.

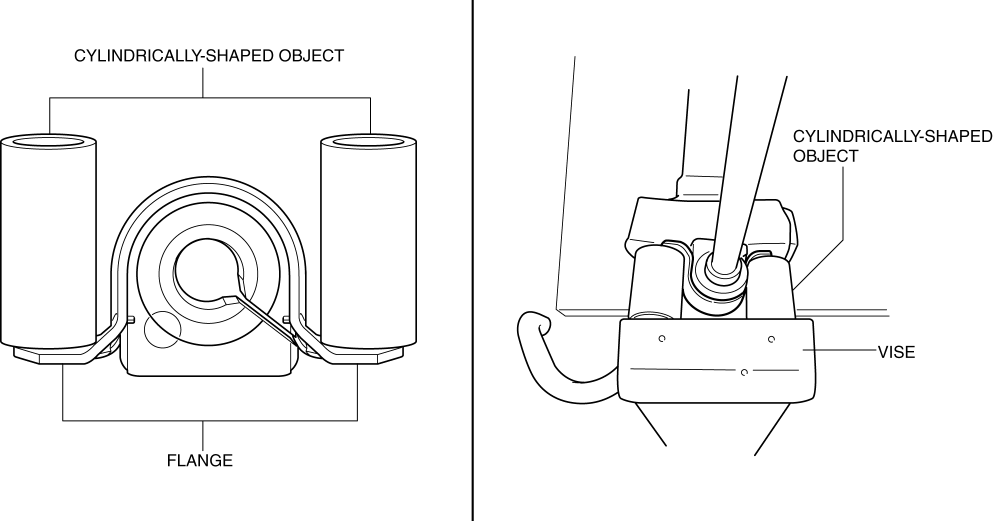

Set a cylindrically-shaped object as shown in the figure so that pressure is applied to the front stabilizer bracket flange, and install the front stabilizer bracket to the front stabilizer bushing.

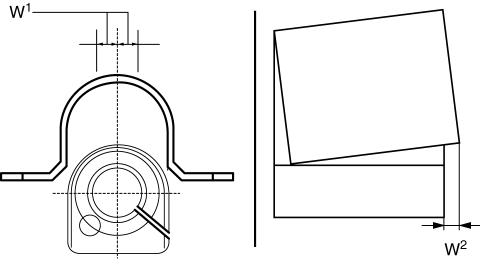

4. During front stabilizer bracket installation, keep the deviation in the positions of the front stabilizer bracket and the front stabilizer bushing within the range shown in the figure.
W1: 0.5 mm {0.02 in} max.
W2: 2 mm {0.08 in} max.

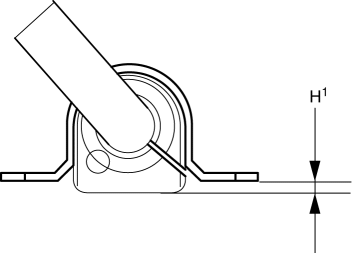

5. After installing the front stabilizer bracket, verify that the positions of the front stabilizer bracket and the front stabilizer bushing are within the range shown in the figure.
H1: 13 mm {0.51 in} max.

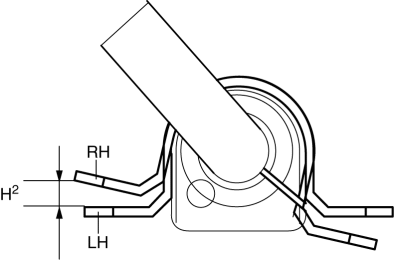

6. After installing the front stabilizer bracket, verify that the right and left-side positions of the front stabilizer bracket are within the range shown in the figure.
H2: 6 mm {0.2 in} max.

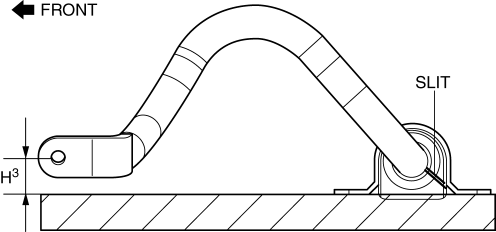

7. Place the front stabilizer component on a level workbench, and verify that it is within the range shown in the figure.
H3: 53.2—63.2 mm {2.10—2.48 in}

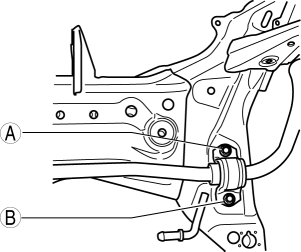

1. Temporarily tighten bolts A and B shown in the figure.
2. Tighten bolt A.Tightening torque
25—29 N·m {2.6—2.9kgf·m, 19—21 ft·lbf}
3. Tighten bolt B.Tightening torque
25—29 N·m {2.6—2.9kgf·m, 19—21 ft·lbf}
4. Tighten bolt A.Tightening torque
25—29 N·m {2.6—2.9kgf·m, 19—21 ft·lbf}
