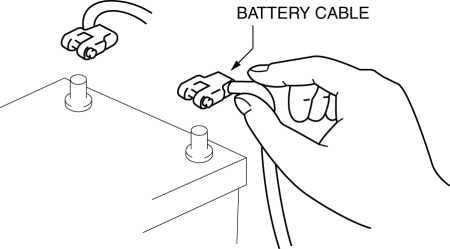

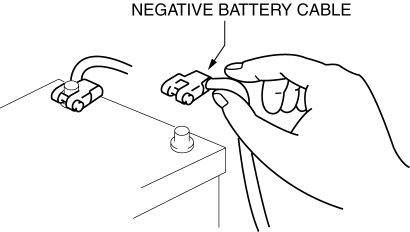

Before disconnecting connectors or removing electrical parts, disconnect the negative battery cable.
Before disconnecting connectors or removing electrical parts, disconnect the negative battery cable.

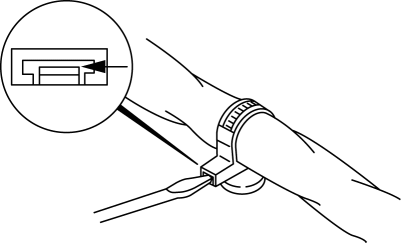

To remove the wiring harness from the clip in the engine room, pry up the hook of the clip using a flathead screwdriver.

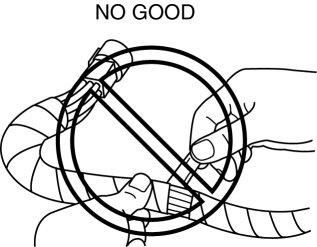

CAUTION:
Do not remove the wiring harness protective tape. Otherwise, the wires could rub against the body, which could result in water penetration and electrical shorting.

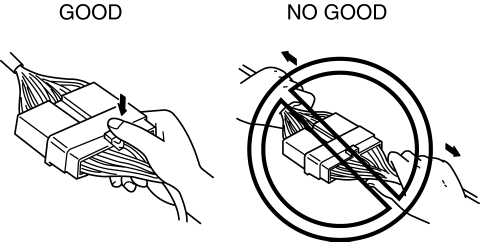

When disconnecting a connector, grasp the connectors, not the wires.

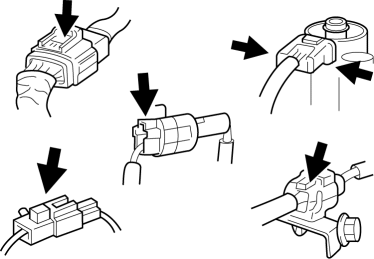

Connectors can be disconnected by pressing or pulling the lock lever as shown.

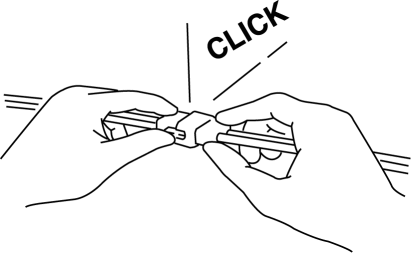

When locking connectors, listen for a click indicating they are securely locked.
CAUTION:

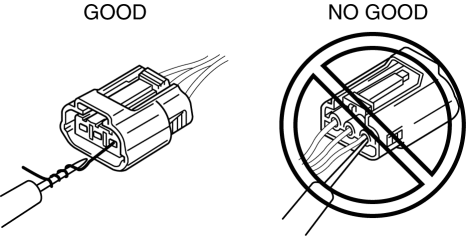

To prevent damage to the terminal, wrap a thin wire around the tester probe before inserting into terminal.

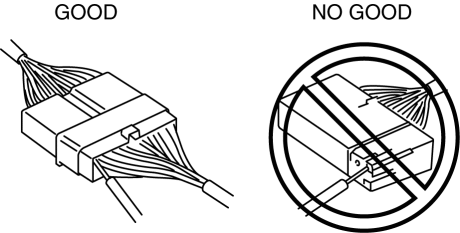

When a tester is used to inspect for continuity or measuring voltage, insert the tester probe from the wiring harness side.
Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.

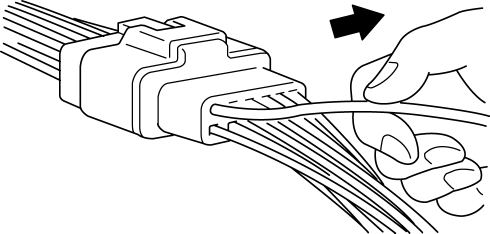

Pull lightly on individual wires to verify that they are secured in the terminal.
Use the appropriate tools to remove a terminal as shown. When installing a terminal, be sure to insert it until it locks securely.

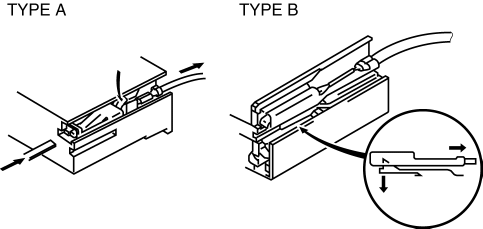

Insert a thin piece of metal from the terminal side of the connector and with the terminal locking tab pressed down, pull the terminal out from the connector.
Handle sensors, switches, and relays carefully. Do not drop them or strike them against other objects.

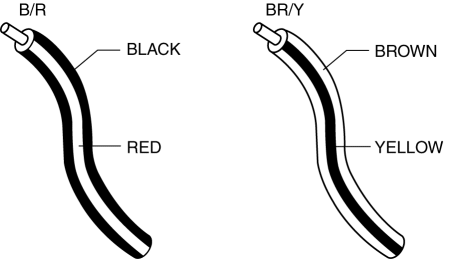

Two–color wires are indicated by a two–color code symbol.
The first letter indicates the base color of the wire and the second is the color of the stripe.
| CODE | COLOR | CODE | COLOR |
| B | Black | O | Orange |
| L | Blue | P | Pink |
| BR | Brown | R | Red |
| DL | Dark Blue | SB | Sky Blue |
| DG | Dark Green | T | Tan |
| GY | Gray | V | Violet |
| G | Green | W | White |
| LB | Light Blue | Y | Yellow |
| LG | Light Green | – | – |
When replacing a fuse, be sure to replace it with one of the same capacity. If a fuse malfunctions again, the circuit probably has a short and the wiring should be inspected.

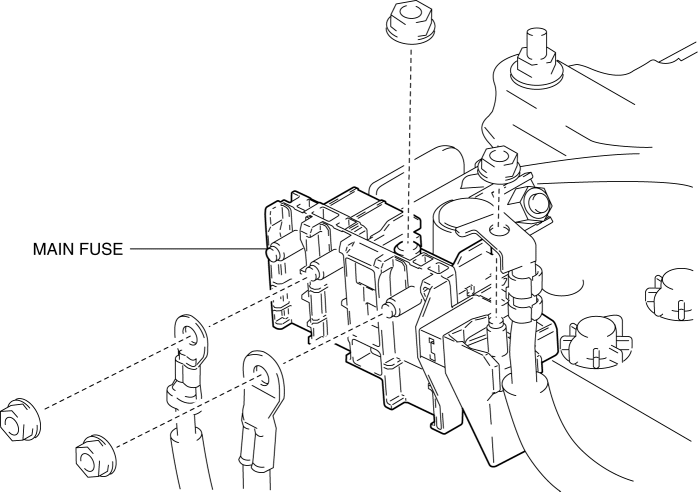

Be sure the negative battery terminal is disconnected before replacing a main fuse.

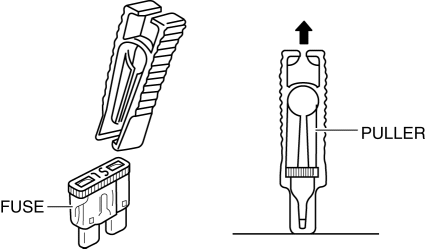

When replacing a pullout fuse, use the fuse puller.

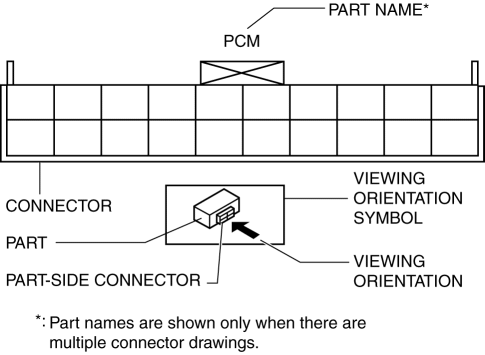

The viewing orientation for connectors is indicated with a symbol.
The figures showing the viewing orientation are the same as those used in Wiring Diagrams.
The viewing orientations are shown in the following three ways.
The viewing orientation for part-side connectors is from the terminal side.

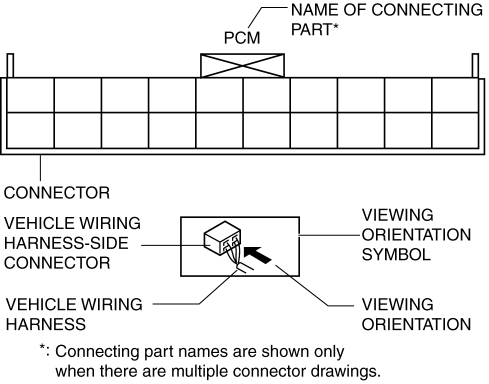

The viewing orientation for vehicle wiring harness-side connectors is from the wiring harness side.

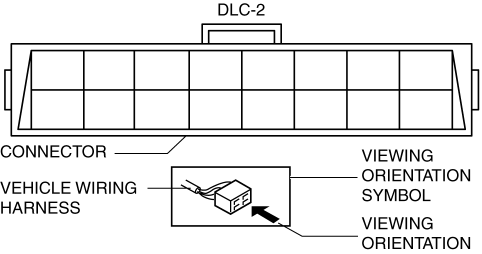

When it is necessary to show the terminal side of the vehicle wiring harness-side connectors, such as the following connectors, the viewing orientation is from the terminal side.
Main fuse block and the main fuse block relays
Data link connector
Check connector
Relay box
CAUTION:
Do not connect a jumper wire from the power source line to a body ground. This may cause burning or other damage to wiring harnesses or electronic components.

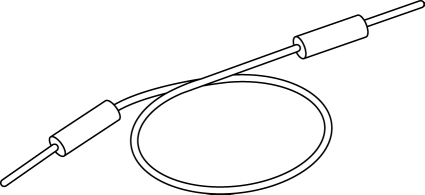

A jumper wire is used to create a temporary circuit. Connect the jumper wire between the terminals of a circuit to bypass a switch.

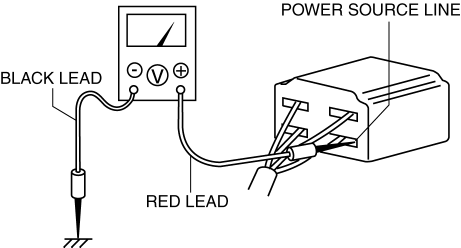

The direct current voltmeter is used to measure circuit voltage. A voltmeter with a range of 15 V or more is used by connecting the positive (+) probe (red lead wire) to the point where voltage will be measured and the negative (-) probe (black lead wire) to a body ground.
CAUTION:

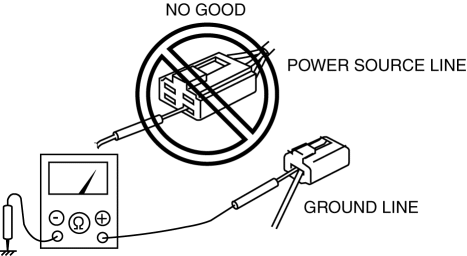

Do not connect the ohmmeter to any circuit where voltage is applied. This will damage the ohmmeter.
The ohmmeter is used to measure the resistance between two points in a circuit and to inspect for continuity and short circuits.

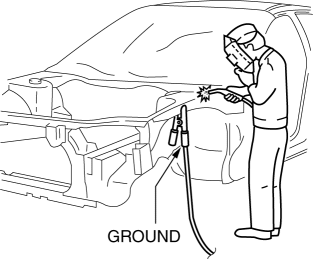

A vehicle has various electrical parts. To protect the parts from excessive current generated when welding, be sure to perform the following procedure.
1. Switch the ignition off.
2. Disconnect the battery cables.
3. Securely connect the welding machine ground near the welding area.
4. Cover the peripheral parts of the welding area to protect them from weld spatter.
The ground connection is extremely important for normal electrical circuit operation, therefore, inspect and disconnect/reconnect the ground connection according to the following guidelines.
Remove the bolt or screw of the ground to inspect for dirt or rust.
If there is any dirt or rust, clean it.
Securely tighten the bolt or screw to the specified tightening torque.
Verify that parts do not interfere with the ground circuit.
