DOOR AJAR WARNING DISPLAY

Purpose

• The door-ajar warning light notifies the driver that any door or the trunk lid is open.

Function

• When the instrument cluster receives any of the following signals sent from the rear body control module (RBCM) via the CAN signal, the door-ajar warning light illuminates.

• Door latch switch ON signal (door open)

• Trunk lid latch switch ON signal (trunk lid open)

Construction

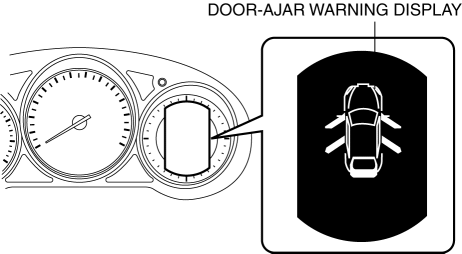

• The door-ajar warning is displayed in the LCD of the instrument cluster.



Operation

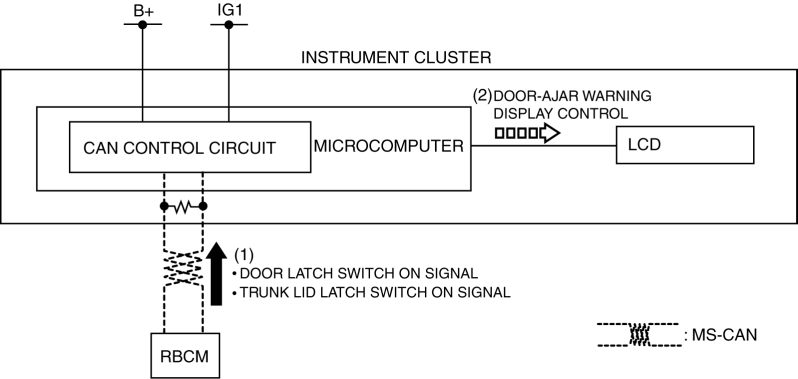

1. The instrument cluster receives (1) the door latch switch ON signal or trunk lid latch switch ON signal from the rear body control module (RBCM).

2. When any received signal indicates that door is open, the instrument cluster displays (2) the door-ajar warning in the LCD.

Fail-safe

• Function not equipped.
