2014 - Mazda6 - Body and Accessories

ON-BOARD DIAGNOSTIC [INSTRUMENT CLUSTER]

Outline

The on-board diagnostic function consists of the following functions: a malfunction detection function, which detects overall malfunctions in the instrument cluster-related parts; a memory function, which stores detected DTCs; a display function, which indicates malfunction locations and status via DTC output; and a PID/data monitoring function, which reads out specific input/output signals and verifies the input/output condition.

Using the Mazda Modular Diagnostic System (M-MDS), DTCs can be read out and deleted, and the PID/data monitoring function can be activated.

Malfunction detection function

Detects malfunctions in input/output signals.

If a malfunction occurs, the instrument cluster records the malfunction as a DTC. A recorded DTC can be read by the Mazda Modular Diagnostic System (M-MDS).

×: Applicable—: Not applicable


DTC No.	Warning/indicator light	Description	Fail-safe function	Drive cycle	Self test type^*1	Memory function
B11D4:53^*2	—	Laser sensor malfunction	×	—	C, D	×
U0001:88	—	Module communication error (HS-CAN)	—	—	C, D	×
U0010:88	—	Module communication error (MS-CAN)	—	—	C, D	×
U0100:00	Illuminated/Flash	Communication error with PCM	—	—	C, D	×
U0101:00^*3	—	Communication error with TCM	—	—	C, D	×
U0104:00^*4	Illuminated/Flash	Communication error with vehicle control module (V/C-module)	—	—	C, D	×
U0121:00	Illuminated/Flash	Communication error with DSC HU/CM	—	—	C, D	×
U0131:00	Illuminated/Flash	Communication error with EPS control module	—	—	C, D	×
U0140:00	Illuminated/Flash	Communication error with front body control module (FBCM)	—	—	C, D	×
U0142:00	—	Communication error with rear body control module (RBCM)	—	—	C, D	×
U0151:00	Illuminated/Flash	Communication error with SAS control module	—	—	C, D	×
U0182:00^*5	Illuminated/Flash	Communication error with AFS control module	—	—	C, D	×
U0214:00	Illuminated/Flash	Communication error with start stop unit	—	—	C, D	×
U0232:00^*6	Illuminated/Flash	Communication error with BSM control module (LH)	—	—	C, D	×
U0235:00^*2	—	Communication error with laser sensor	×	—	C, D	×
U023A:00^*7	Illuminated/Flash	Communication error with forward sensing camera (FSC)	—	—	C, D	×
U0300:00	—	Instrument cluster configuration error	—	—	C, D	×
U0401:68	Illuminated/Flash	Error signal received from PCM	—	—	C, D	×
U0402:68^*3	—	Error signal received from transmission/transaxle	—	—	C, D	×
U0405:00^*4	Illuminated/Flash	Error signal received from vehicle control module (V/C-module)	—	—	C, D	×
U0422:68	Illuminated/Flash	Error signal received from front body control module (FBCM)	—	—	C, D	×
U0433:00^*2	—	Error signal received from laser sensor	×	—	C, D	×
U0433:68^*2	—	Error signal received from laser sensor	×	—	C, D	×
U0515:68	Illuminated/Flash	Error signal received from start stop unit	—	—	C, D	×
U053B:00^*7	Illuminated/Flash	Error signal received from forward sensing camera (FSC)	—	—	C, D	×
U2005:86	—	Error signal received from PCM	—	—	C, D	×
U2013:13	—	Cluster switch circuit malfunction	—	—	C, D	×
U2100:00	—	Instrument cluster configuration error	—	—	C, D	×
U2300:41	—	Instrument cluster configuration error	—	—	C, D	×
U2300:51	—	Instrument cluster configuration error	—	—	C, D	×
U2300:56	—	Instrument cluster configuration error	—	—	C, D	×
U2300:57	—	Instrument cluster configuration error	—	—	C, D	×
U3000:41	—	Instrument cluster internal malfunction	—	—	C, D	×
U3003:16	—	Low power supply voltage input to instrument cluster	—	—	C, D	×

^*1: C: CMDTC self test, D: ODDTC self test
^*2: With smart city brake support (SCBS)
^*3: ATX
^*4: With Mazda Radar Cruise Control (MRCC) system
^*5: With AFS
^*6: With blind spot monitoring (BSM) system
^*7: With forward sensing camera (FSC)

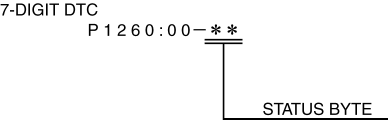

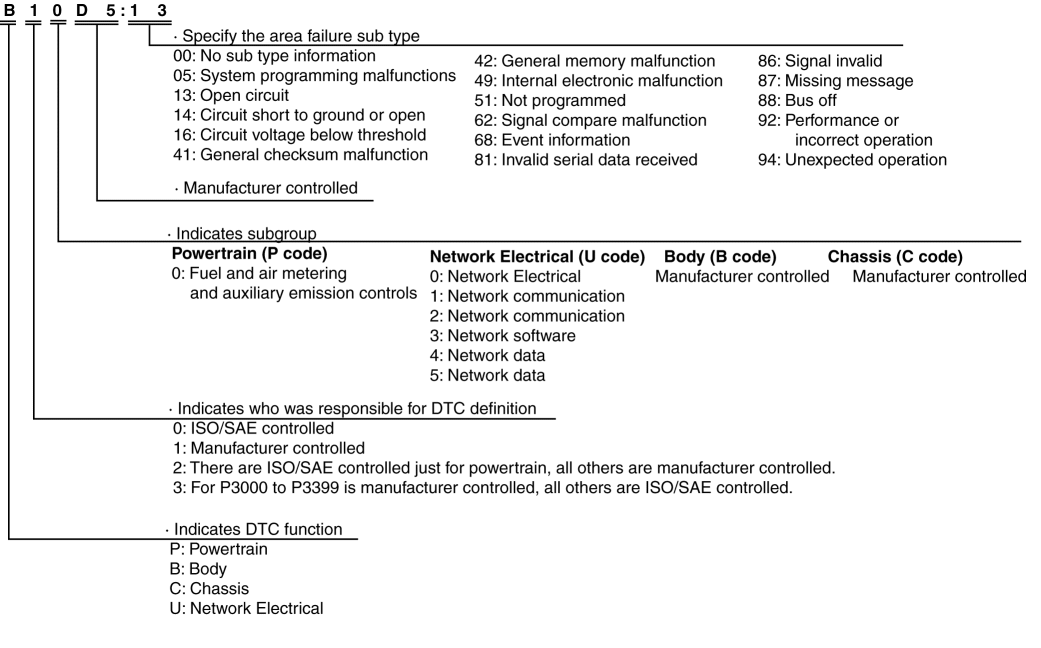

DTC 7-digit code definition

When related systems or components have failed, the CM stores the DTC of the malfunctioning part in the CM memory, and allows for the retrieval of the store data using scanning tool when necessary. The DTCs are indicated using seven digits. Each digit indicates the following.

Status byte for DTC

The status byte is the two digits (two digits after hyphen (-)) after the 7-digit DTC.

The status byte is a code which indicates the pending code, current/past malfunction status, or warning illumination status.

The status byte can be read by performing a CMDTC self-test using the Mazda Modular Diagnostic System (M-MDS).

For details on the status byte, refer to the explanation on the Mazda Modular Diagnostic System (M-MDS) when reading the DTC.

Detection condition for the applicable DTC


DTC No.	System malfunction location	Detection condition
B11D4:53^*1	Laser sensor malfunction	Instrument cluster detects the following malfunctions Laser sensor malfunction Malfunction in smart city brake support related system (laser sensor, DSC HU/CM, PCM)
U0001:88	Module communication error (HS-CAN)	Instrument cluster detects a CAN bus communication line (HS-CAN) malfunction.
U0010:88	Module communication error (MS-CAN)	Instrument cluster detects a CAN bus communication line (MS-CAN) malfunction.
U0100:00	Communication error with PCM	Instrument cluster cannot receive the CAN signal from the PCM.
U0101:00^*2	Communication error with TCM	Instrument cluster cannot receive the CAN signal from the TCM for 1 s or more.
U0104:00^*3	Communication error with vehicle control module (V/C-module)	Instrument cluster cannot receive the CAN signal from the vehicle control module (V/C-module) for 1 s or more.
U0121:00	Communication error with DSC HU/CM	Instrument cluster cannot receive the CAN signal from the DSC HU/CM for 1 s or more.
U0131:00	Communication error with EPS control module	Instrument cluster cannot receive the CAN signal from the EPS control module for 1 s or more.
U0140:00	Communication error with front body control module (FBCM)	Instrument cluster cannot receive the CAN signal from the front body control module (FBCM) for 5 s or more.
U0142:00	Communication error with rear body control module (RBCM)	Instrument cluster cannot receive the CAN signal from the rear body control module (RBCM) for 5 s or more.
U0151:00	Communication error with SAS control module	Instrument cluster cannot receive the CAN signal from the SAS control module for 2 s or more.
U0182:00^*4	Communication error with AFS control module	Instrument cluster cannot receive the CAN signal from the AFS control module for 5 s or more.
U0214:00	Communication error with start stop unit	Instrument cluster cannot receive the CAN signal from the start stop unit for 5 s or more.
U0232:00^*5	Communication error with BSM control module (LH)	Instrument cluster cannot receive the CAN signal from the BSM control module (LH) for 1.5 s or more.
U0235:00^*1	Communication error with laser sensor	Instrument cluster cannot receive the CAN signal from the laser sensor for 1 s or more.
U023A:00^*6	Communication error with forward sensing camera (FSC)	Instrument cluster cannot receive the CAN signal from the forward sensing camera (FSC) for 1 s or more.
U0300:00	Instrument cluster configuration error	Instrument cluster configuration error (incorrect value write) detected.
U0401:68	Error signal received from PCM	Instrument cluster receives the error signals from the PCM with the ignition switched ON (engine off or on).
U0402:68^*2	Error signal received from transmission/transaxle	Instrument cluster received the error signals from the transmission/transaxle for 1 s or more with the ignition switched ON (engine off or on).
U0405:00^*3	Error signal received from vehicle control module (V/C-module) module	Instrument cluster receives error signals from the vehicle control module (V/C-module) for 1 s or more with the ignition switched ON (engine off or on).
U0422:68	Error signal received from front body control module (FBCM)	Instrument cluster receives the error signals from the front body control module (FBCM) for 5 s or more with the ignition switched ON (engine off or on).
U0433:00^*1	Error signal received from laser sensor	Instrument cluster detects the following conditions: The smart city brake support operated normally in the past. Malfunction of laser sensor or smart city brake support related system (laser sensor, DSC HU/CM, PCM) Laser sensor control is temporarily inhibited.
U0433:68^*1	Error signal received from laser sensor	Instrument cluster detects a malfunction in the laser sensor.
U0515:68	Error signal received from start stop unit	Instrument cluster receives the error signals from the start stop unit with the ignition switched ON (engine off or on).
U053B:00^*6	Error signal received from forward sensing camera (FSC)	Instrument cluster receives the error signals from the forward sensing camera (FSC) for 1 s or more with the ignition switched ON (engine off or on).
U2005:86	Error signal received from PCM	Instrument cluster receives the vehicle speed signal error from the PCM for 1 s or more with the ignition switched ON (engine off or on).
U2013:13	Cluster switch circuit malfunction	Instrument cluster detects an open circuit in the cluster switch circuit for 5 s or more with the ignition switched ON (engine off or on).
U2100:00	Instrument cluster configuration error	Instrument cluster configuration error detected as follows: No configuration of instrument cluster Instrument cluster configuration has not been correctly performed.
U2300:41	Instrument cluster configuration error	Instrument cluster configuration error (data error) detected.
U2300:51	Instrument cluster configuration error	Instrument cluster configuration error (no configuration) detected.
U2300:56	Instrument cluster configuration error	Instrument cluster configuration error (incorrect value write) detected.
U2300:57	Instrument cluster configuration error	Instrument cluster configuration error (data size error) detected.
U3000:41	Instrument cluster internal malfunction	Instrument cluster detects the internal malfunction.
U3003:16	Low power supply voltage input to instrument cluster	Instrument cluster power supply circuit voltage of less than 10V is detected.

^*1: With smart city brake support
^*2: ATX
^*3: With mazda radar cruise control (MRCC) system
^*4: With AFS
^*5: With blind spot monitoring (BSM) system
^*6: With forward sensing camera (FSC)

Snapshot Data

The data for all DTCs currently detected is stored.

Snapshot data table—: Not applicable


Snapshot data item	Unit		Data contents	Data read/use method	Corresponding data monitor items
AAT	°C	°F	Ambient temperature	—	—
APP_STATUS	Accelerator Pedal Off/Under20%/Over20%/FAIL		Accelerator pedal position status	—	—
CFG_STATUS	Config Complete/Not Configured/Config Error		Instrument cluster configuration status	—	—
ECT_STATUS	Under 0 degrees C/0 - Under 80 degrees C/Over 80 degrees C/FAIL		Engine coolant temperature status	—	—
IC_VPWR	V		Instrument cluster power supply voltage	When DTC is detected, instrument cluster displays power supply voltage value of instrument cluster in M-MDS.	VPWR
IG-ON_TIMER	hh:mm:ss^*1		Elapsed time since ignition was switched ON (engine off or on) NOTE: The instrument cluster records the elapsed time since the ignition was switched ON (engine off or on).	When DTC is detected, instrument cluster displays elapsed time since ignition was switched ON (engine off or on) in M-MDS.	—
PWR_MODE_KEY	Key Out/Key Recently Out (Position 0)/Accessory (Position 1)/Post Ignition (Position 2)/Ignition On (Position 2)/Running (Position 2)/Running - Starting		Key Out: Ignition switched off Key Recently Out (Position 0): Elapsed time within 3 s since ignition was switched off Accessory (Position 1): Ignition is switched to ACC Post Ignition (Position 2): Elapsed time within 3 s since ignition was switched ON (engine off or on) Ignition On (Position 2): Ignition switched ON (engine off) Running (Position 2): Ignition switched ON (engine on) Running - Starting: Cranking condition	When DTC is detected, instrument cluster displays ignition switch status in M-MDS.	—
RPM_STATUS	Engine Stop/Under1500rpm/Over1500rpm/FAIL		Engine speed status	When DTC is detected, instrument cluster displays engine speed in M-MDS.	TACHOMTR
SHIFT_STATUS	P/N/D/R/FAIL		Selector lever position status	When DTC is detected, instrument cluster displays selector lever position in M-MDS.	—
TOTAL_DIST	km	Miles	Accumulated total traveled distance from completion of vehicle until instrument cluster detects DTC (Odometer value in instrument cluster)	The total traveled distance from which the instrument cluster detects DTCs to the present can be calculated by performing the following procedure. Verify the odometer value in the instrument cluster. Verify the snapshot data item TOTAL_DIST. Subtract 2 from 1.	—
TOTAL_TIME	hh:mm:ss^*1		Accumulated total elapsed time since vehicle completion until instrument cluster detects a DTC NOTE: When the ROOM fuse is removed, and the ignition is switched off, the time is not included in the elapsed time.	The elapsed time from which the instrument cluster detects DTCs to the present can be calculated by performing the following procedure. Verify the instrument cluster PID item TOTAL_TIME. Verify the snapshot data item TOTAL_TIME. Subtract 2 from 1.	TOTAL_TIME
VPWR	V		Instrument cluster power supply voltage	—	VPWR
VSPD_STATUS	Stop/0-10km/h/Over10km/h/FAIL		Vehicle speed status	When DTC is detected, instrument cluster displays vehicle speed in M-MDS.	SPEEDOMTR
VSS	KPH	MPH	Vehicle speed	—	—

^*1: The seconds may be indicated after the decimal point.

Data Monitor Function

The PID/data monitor function performs reading in real time of optionally selected input/output signal monitor items that are set in the instrument cluster.

PID/data monitor table—: Not applicable


PID	Unit/Operation	Data contents	Inspection item(s)
AFS_OFF_SW^*1	Off/On	Off: AFS OFF switch is off. On: AFS OFF switch is on.	AFS OFF switch
AFS_ST^*1	Off/On	Off: AFS not operated On: AFS operated	AFS OFF switch AFS control module
AT_MAN_M_SW^*2	Off/On/Unknown	Off: M position switch is off. On: M position switch is on. Unknown: M position switch signal is not determined.	M position switch
AT_S_DWN_SW^*2	Off/On/Unknown	Off: Down switch is off. On: Down switch is on. Unknown: Down switch signal is not determined.	Down switch
AT_S_UP_SW^*2	Off/On/Unknown	Off: Up switch is off. On: Up switch is on. Unknown: Up switch signal is not determined.	Up switch
BSM/RVM_SW^*3	Off/On	Off: BSM OFF switch is off. On: BSM OFF switch is on.	BSM OFF switch
DSC_OFF_SW	Off/On	Off: DSC OFF switch is off. On: DSC OFF switch is on.	DSC OFF switch
FUEL_GAUGE	L	Displays fuel level detected by the fuel gauge	Fuel gauge (instrument cluster)
FUEL_SEN_M	ohm	Displays fuel gauge sender unit resistance value	Fuel gauge sender unit Rear body control module (RBCM)
FUEL_SEN_S	ohm	NOTE: Displays in the M-MDS but it does not operate.	—
I_ILLUMI_M	Off (Day)/On (Night)	Off (Day): TNS switch is off. On (Night): TNS switch is on.	Instrument cluster Front body control module (FBCM)
I-ST_OFF_SW	Off/On	NOTE: Displays in the M-MDS but it does not operate.	—
LDWS_ON_SW^*4	Off/On	Off: LDWS switch is off. On: LDWS switch is on.	LDWS switch
MULTI_SW_ST	O.K./FAULT	O.K.: Cluster switch is normal. FAULT: Cluster switch is malfunctioning.	Cluster switch
ODO_CNT	km, ft, mi	Displays rolling count of the odometer	Odometer (instrument cluster)
P_BRAKE_SW	Off/On	Off: Parking brake not applied On: Parking brake applied	Parking brake switch
R_GEAR_SW	Off/On	ATX: Off: Selector lever is in other than R position. On: Selector lever is in R position. MTX: Off: Back-up light switch is off. On: Back-up light switch is on.	ATX: Transaxle range sensor (TCM) TCM MTX: Back-up light switch PCM
R_LMP	Off/On/Unknown/Fault	Off: Back-up light is turned off. On: Back-up light is turned on. Unknown: Back-up light signal is not determined. Fault: Back-up light malfunction	ATX: Transaxle range sensor (TCM) TCM Instrument cluster MTX: Back-up light switch PCM Instrument cluster
SPEEDOMTR	KPH, MPH	Displays vehicle speed (100 % = 300 km/h {186 mph})	Speedometer (instrument cluster)
TACHOMTR	RPM	Displays engine speed (100 % = 10,000 rpm)	Tachometer (instrument cluster)
TOTAL_TIME	hh:mm:ss	Displays cumulative elapsed time since vehicle completion	Instrument cluster
TPMS_CAL_SW	Off/On	Off: Tire pressure monitoring system (TPMS) set switch is off. On: Tire pressure monitoring system (TPMS) set switch is on.	Tire pressure monitoring system (TPMS) set switch
VPWR	V	Displays power supply voltage	Instrument cluster IG1 relay Battery

^*1: With AFS
^*2: ATX
^*3: With blind spot monitoring (BSM) system
^*4: With lane departure warning system (LDWS)

Active Command Modes Function

The active command modes are shown below.


Simulation item	Unit/Operation	Data contents	Output part name
ALARM	On/Off	On: Warning alarm sounds. Off: Warning alarm does not sound.	Warning alarm (instrument cluster)
LCD_SEG	Off/On	Instrument cluster (type B): Off: Turns off the LCD. On: Fully displays LCD. Instrument cluster (type A): Off: Turns off the LCD. On: Illuminates the LCD.	LCD
SPEEDOMTR	Off/60 Km/h/120 Km/h	Off: Moves speedometer needle to 0 km/h {0 mph}. 60 Km/h: Moves speedometer needle to 58—62 km/h {37—38 mph}. 120 Km/h: Moves speedometer needle to 117—123 km/h {72.8—76.4 mph}.	Speedometer (instrument cluster)
TACHOMTR	Off/3000 RPM/6000 RPM	Off: Moves tachometer needle to the bottom-most position. 3000 RPM: Moves tachometer needle to approx. 3,050 rpm. 6000 RPM: Moves tachometer needle to approx. 6,100 rpm.	Tachometer (instrument cluster)
WL+IL	Off/On	Off: Turns off all warning lights, indicator lights. On: Illuminates all warning lights, indicator lights.	Warning lights, indicator lights (instrument cluster)
