2014 - Mazda6 - Body and Accessories

AMBIENT TEMPERATURE DISPLAY

Purpose

• The ambient temperature display notifies the user of the ambient temperature.

Function

• The instrument cluster displays the ambient temperature based on the ambient temperature signal sent from the PCM as a CAN signal.

• The ambient temperature is displayed between -40—70°C {-40―160°F} If the ambient temperature is -40°C {-40°F} or less, -40°C {-40°F} is displayed, and 70°C {160°F} is displayed if the temperature is 70°C {160°F} or more.

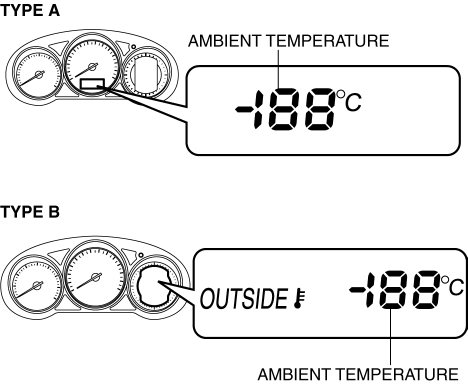

Construction

• The ambient temperature is displayed on the LCD in the instrument cluster.

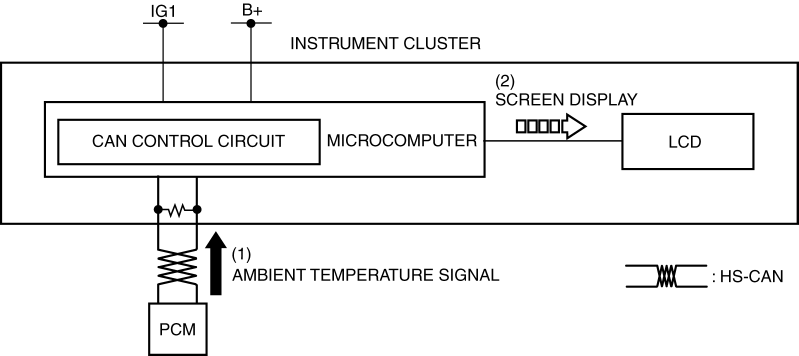

Operation

1. When the ignition is switched ON, the instrument cluster receives an ambient temperature signal from the PCM (1).

2. Based on the ambient temperature signal, the instrument cluster displays the ambient temperature and ice mark on the LCD (2).

Fail-safe

• Function not equipped.
