Sound frequency (Hz)
Alarm when turn signal/hazard warning indicator lights illumination off → on: 1,400
Alarm when turn signal/hazard warning indicator lights illumination on → off: 1,300
Sound frequency
Continuously
Wave pattern
The turn and hazard indicator alarm notifies the driver that a turn light or the hazard warning lights are flashing.
When the instrument cluster receives the turn signal/hazard warning indicator light illumination request signal sent from the front body control module (FBCM) via the CAN signal, the turn and hazard indicator alarm sounds simultaneously with illumination on/off of the direction/hazard warning indicator lights.
The turn and hazard indicator alarm sound pattern is as follows:
| Sound frequency (Hz) | Alarm when turn signal/hazard warning indicator lights illumination off → on: 1,400 Alarm when turn signal/hazard warning indicator lights illumination on → off: 1,300 |
| Sound frequency | Continuously |
| Wave pattern |
|
The turn and hazard indicator alarm sounds using the buzzer built into the instrument cluster.

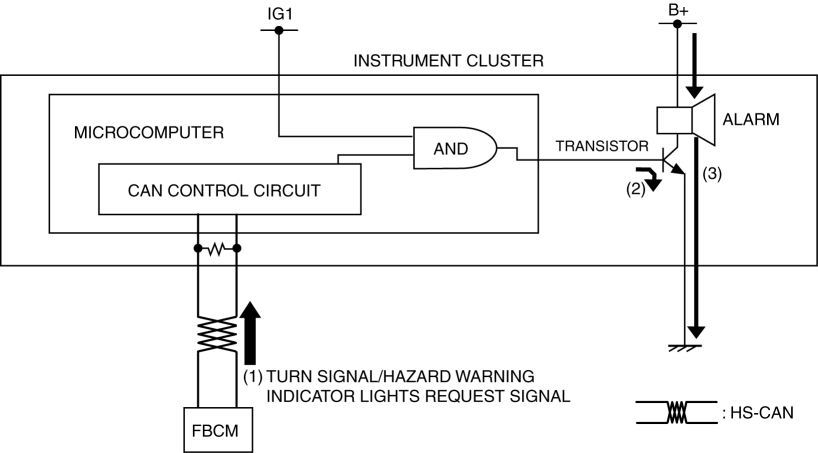

1. The instrument cluster receives (1) the turn signal/hazard warning indicator light request signal from the front body control module (FBCM).
2. The instrument cluster microcomputer turns the transistor on (2) based on the turn signal/hazard warning indicator light request signal.
3. When the transistor turns on, a ground circuit with the alarm is established and the alarm sounds (3).
