The SIRIUS satellite radio unit is installed to the interior of the glove compartment.
-
Consists of a bracket for securing to the dashboard member, and a tuner.
Satellite radio programming can be listened to.
The voltage signal sent from the SIRIUS satellite radio antenna is output to the audio unit.
The SIRIUS satellite radio unit is installed to the interior of the glove compartment.
Consists of a bracket for securing to the dashboard member, and a tuner.
| Terminal | Signal |
|
|
| A | Power ground |
| B | — |
|
| C | Output RH (+) |
|
| D | — |
|
| E | Output LH (+) |
|
| F | — |
|
| G | Signal ground |
|
| H | — |
|
| I | — |
|
| J | — |
|
| K | CAN_L |
|
| L | CAN_H |
|
| M | — |
|
| N | — |
|
| O | ACC |
|
| P | B+ |
|

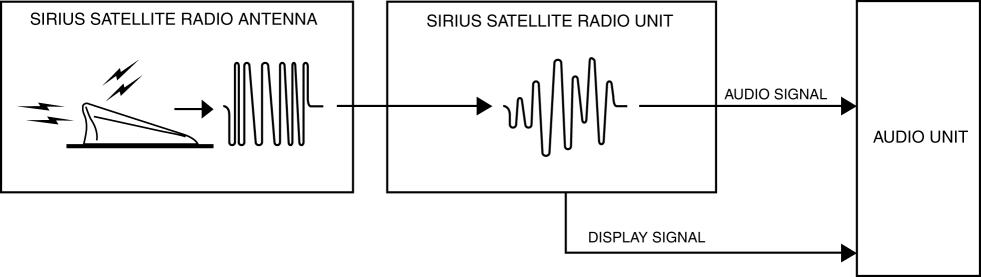

1. The SIRIUS satellite radio unit detects the radio station selected by the user from the electric signal sent from SIRIUS satellite radio antenna.
2. The detected radio broadcast audio signal and the video signal are sent to the audio unit.
3. The audio unit outputs the audio and video signals received from the SIRIUS satellite radio unit.
Function not equipped.
