2014 - Mazda6 - Body and Accessories

SECURITY INDICATOR LIGHT

Purpose

• Notifies the driver that the immobilizer system is operating.

Function

• If a malfunction is detected in the immobilizer system, the DTC can be verified by the flashing pattern of the security indicator light.

Construction

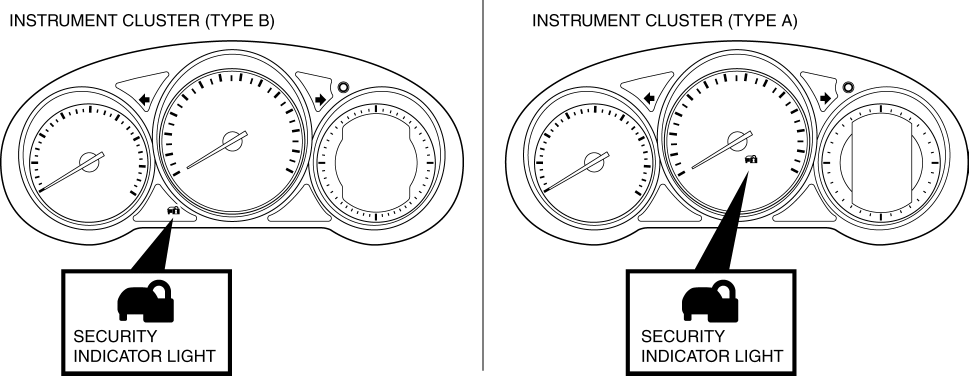

• The security indicator light is built into the instrument cluster.



Operation

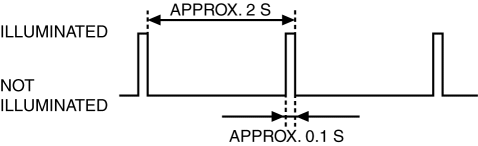

• When the immobilizer system is operating, it illuminates for 0.1 s every approx. 2 s.

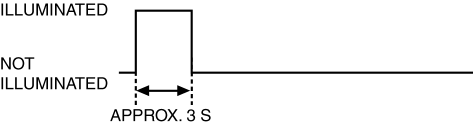

• If the immobilizer system is normal, the security indicator light illuminates for approx. 3 s and then turns off after the push button start is pressed.



Fail-safe

• Function not equipped.
