MAGNET CLUTCH [FULL-AUTO AIR CONDITIONER]

Purpose

• The magnetic clutch transmits the rotation force from the engine to the shaft in the A/C compressor.

Function

• The magnetic clutch engages or disengages the magnetic clutch and the A/C turns on or off by switching the power transmission from the engine.



Construction

• The magnetic clutch is installed to the A/C compressor.

• The magnetic clutch consists of the following parts:



• Pressure plate

• A/C compressor pulley

• Stator

• Snap ring

• Shim

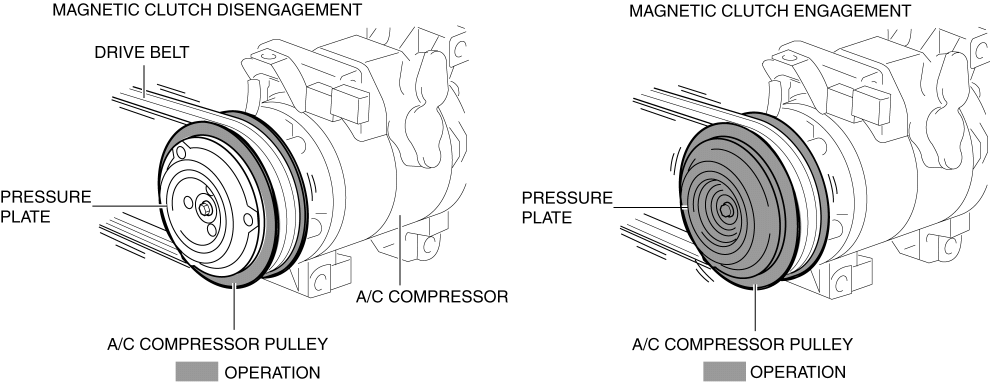

Operation

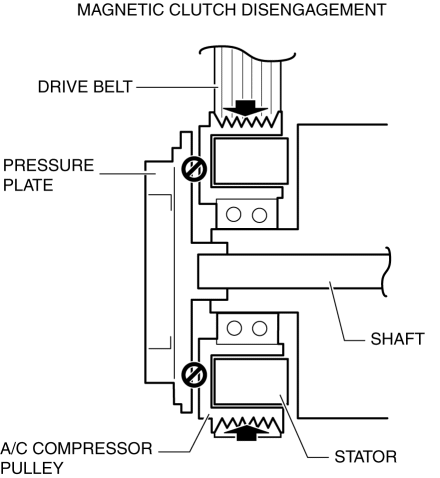

Magnetic clutch disengagement

1. If there is no energization in the magnetic clutch stator from the A/C relay, the pressure plate cannot be engaged with the A/C compressor pulley because the magnetic clutch stator does not operate.

2. The rotation force from the drive belt is only transmitted to the A/C compressor pulley and the pulley spins.

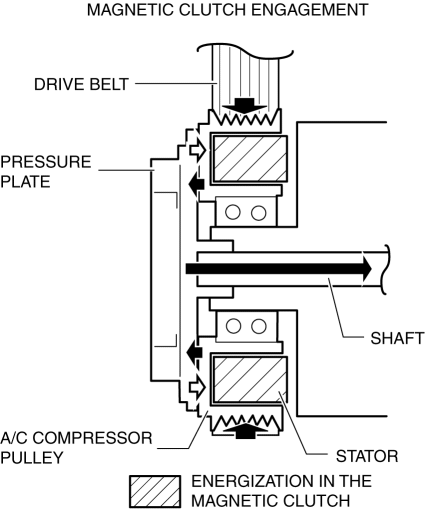

Magnetic clutch engagement

1. If there is energization in the magnetic clutch stator from the A/C relay, the magnetic clutch stator operates and the pressure plate is engaged with the A/C compressor pulley.

2. The rotation force from the drive belt is transmitted to the compressor shaft through the pressure plate from the A/C compressor pulley.

Fail-safe

• Function not equipped.
