2014 - Mazda6 - HVAC

CONDENSER

Purpose

• The condenser cools the high-temperature, highly pressurized refrigerant.

Function

• The condenser cools the high-temperature, highly pressurized gaseous refrigerant compressed by the A/C compressor using the outside air, and changes it to liquid refrigerant.

Construction

• The condenser is installed to the front of the radiator.

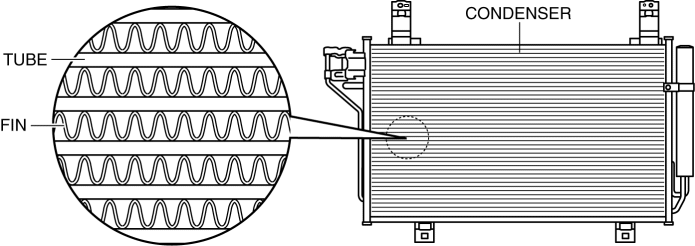

• The condenser consists of the tube which passes refrigerant, and the heat radiation fin.



• A sub-cooling condenser has been adopted.



• The sub-cooling condenser is integrated with the multi-flow condenser and the receiver driver.

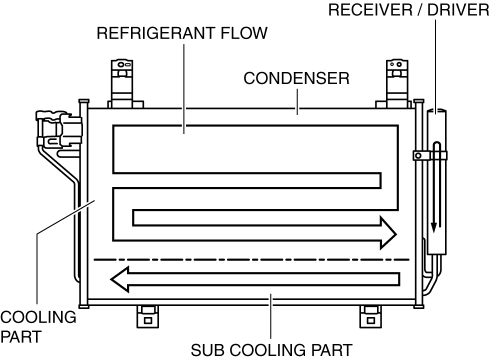

• The sub-cooling condenser separates the refrigerant, cooled once by the condenser, into vapor and liquid using the receiver/drier, and by returning it to the sub-cooling part of the condenser again to cool.

• As a result, liquefaction of the refrigerant is promoted and cooling performance is improved.

Operation

• The high-temperature, highly pressurized gaseous refrigerant sent from the A/C compressor passes through the tube in the condenser.

• When the air blown from the outside is exposed to the heat radiation fin, the heat of the refrigerant is captured by heat exchange, and the refrigerant changes from a gas to a liquid.

• The liquid refrigerant is sent to the expansion valve via the receiver/drier.

Fail-safe

• Function not equipped.
