The A/C unit which integrates the cooling and heater units has been adopted.

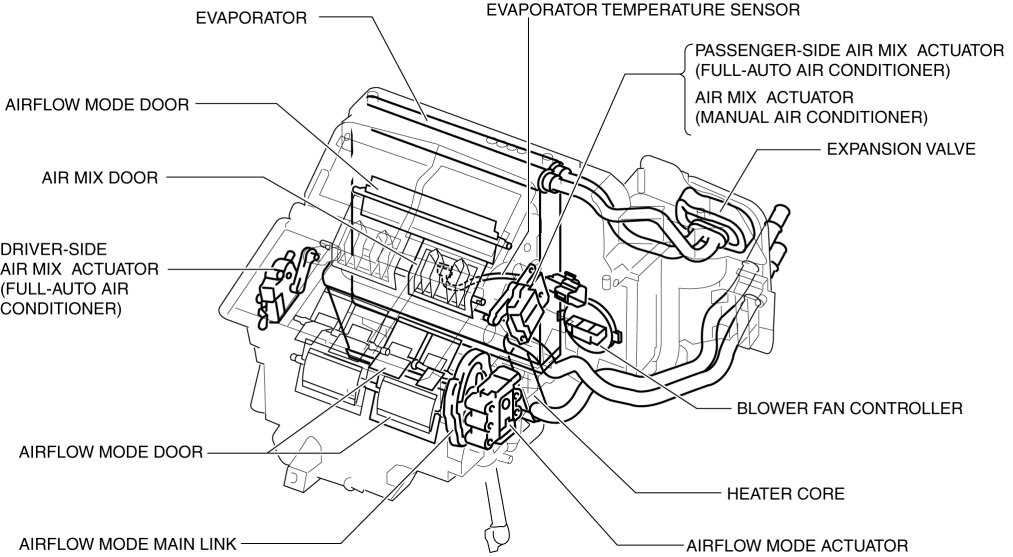

The A/C unit consists of the following parts.

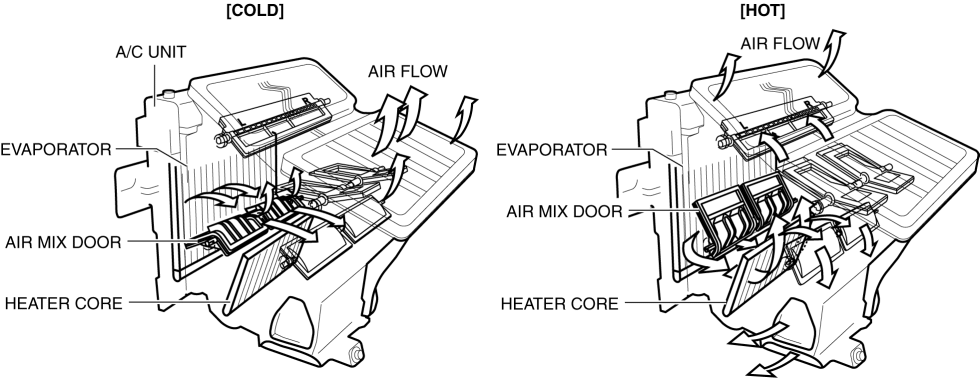

The air mix door, installed in the A/C unit, controls HOT or COLD position, depending on the position of the temperature control dial. As a result, airflow distribution changes, and the airflow temperature is controlled.

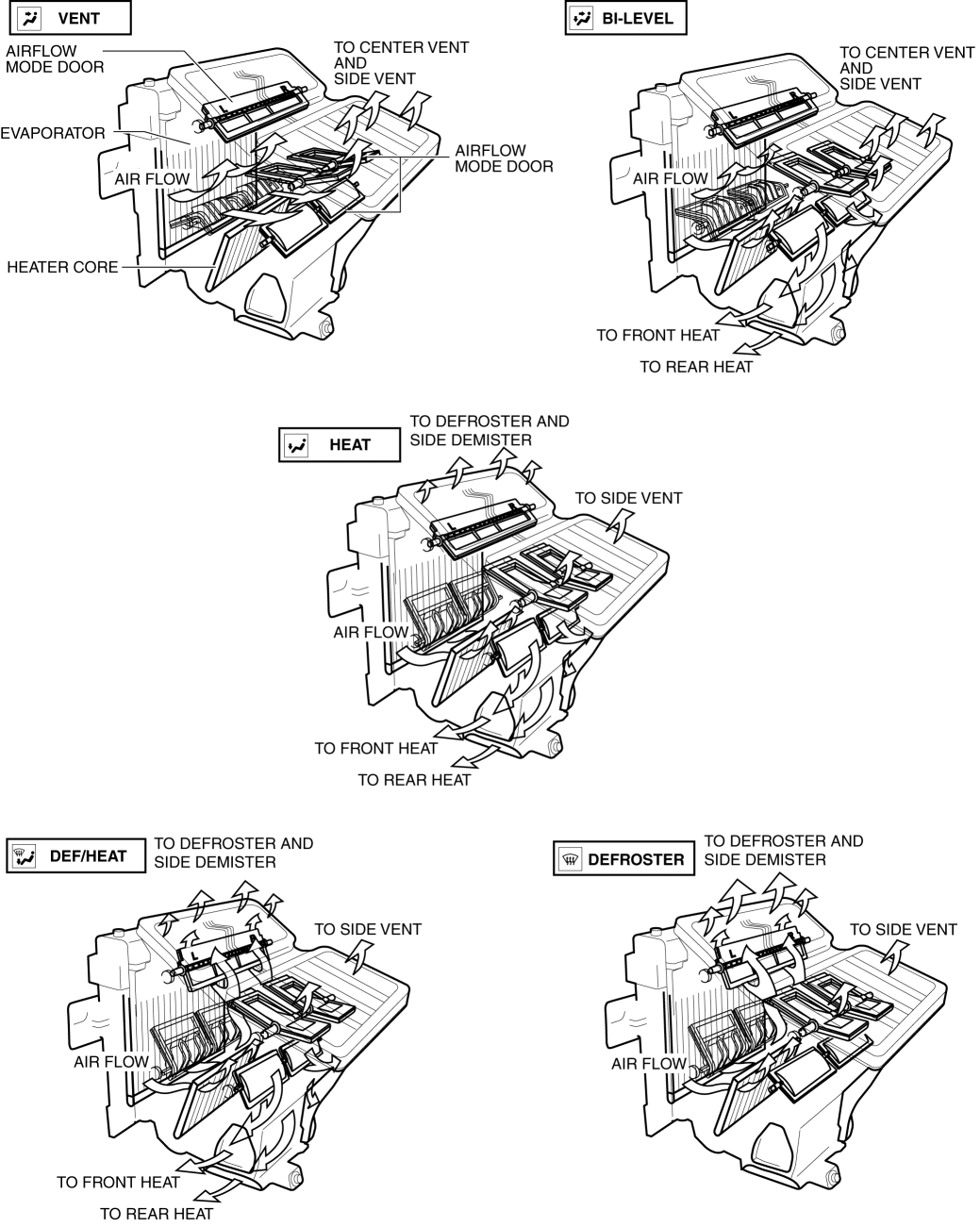

The airflow mode doors move to VENT, BI-LEVEL, HEAT, DEF/HEAT, or DEFROSTER position, depending on the position of the airflow mode selector dial. As a result, the airflow mode changes.
The airflow mode door (rear vent) moves according to each mode. Air is blown to the rear vent by the movement of the airflow mode door (rear vent).
Function not equipped.
