2014 - Mazda6 - Transmission/Transaxle

SHIFT SOLENOID NO.3 [FW6A-EL]

Purpose/Function

• Shift solenoid No.3 adjusts the hydraulic pressure in the R-3-5 brake circuit based on the current demand from the TCM according to the vehicle conditions.

Construction

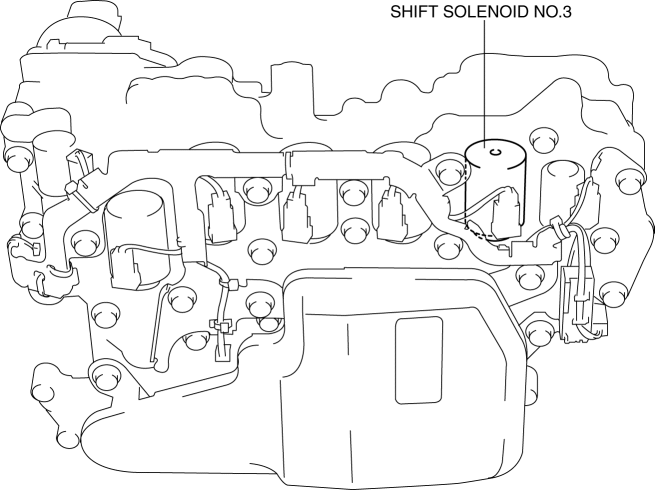

• Shift solenoid No.3 is installed to the solenoid control valve body.

• Shift solenoid No.3 is a normal open-type linear solenoid.



Operation

• Adjusts the R-3-5 brake pressure by increasing/decreasing the energization current to shift solenoid No.3 according to the signal from the TCM.
