2014 - Mazda6 - Transmission/Transaxle

SHIFT SOLENOID NO.1 [FW6A-EL]

Purpose/Function

• Shift solenoid No.1 adjusts the hydraulic pressure in the low clutch circuit based on the current demand from the TCM according to the vehicle conditions.

Construction

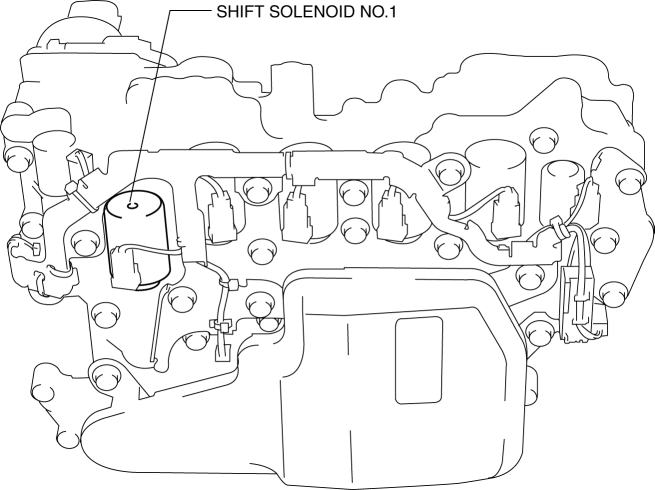

• Shift solenoid No.1 is installed to the solenoid control valve body.

• Shift solenoid No.1 is a normal closed-type linear solenoid.



Operation

• Adjusts the low clutch pressure by increasing/decreasing the energization current to shift solenoid No.1 according to the signal from the TCM.
