2014 - Mazda6 - Transmission/Transaxle

TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR [FW6A-EL]

Purpose/Function

• The transaxle fluid temperature (TFT) sensor detects the ATF temperature in the oil pan.

• The transaxle fluid temperature (TFT) sensor signal is used for automatic shift control, TCC control, line pressure control, direct electric shift control, learning control, and the on-board diagnostic system.

Construction

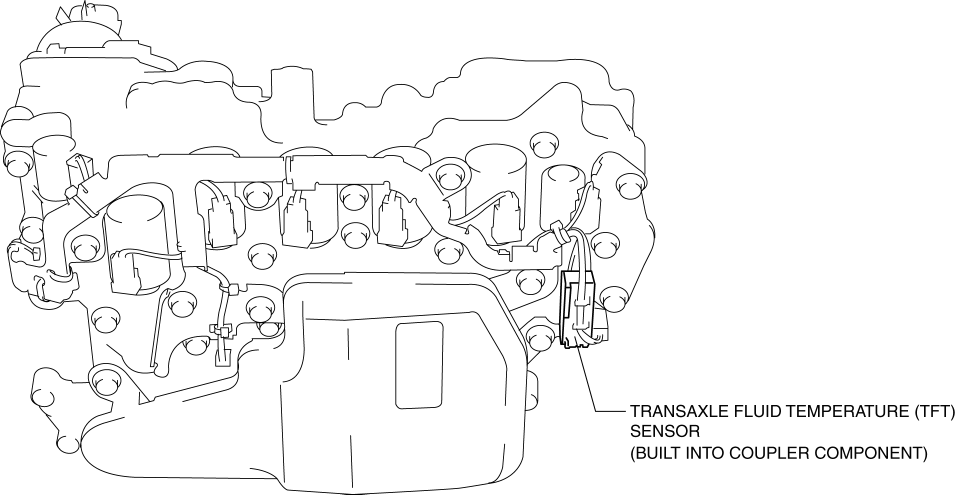

• The transaxle fluid temperature (TFT) sensor is integrated with the coupler component and installed to the control valve body.



Operation

• The transaxle fluid temperature (TFT) sensor outputs the signal corresponding to the ATF temperature in the oil pan to the TCM.
